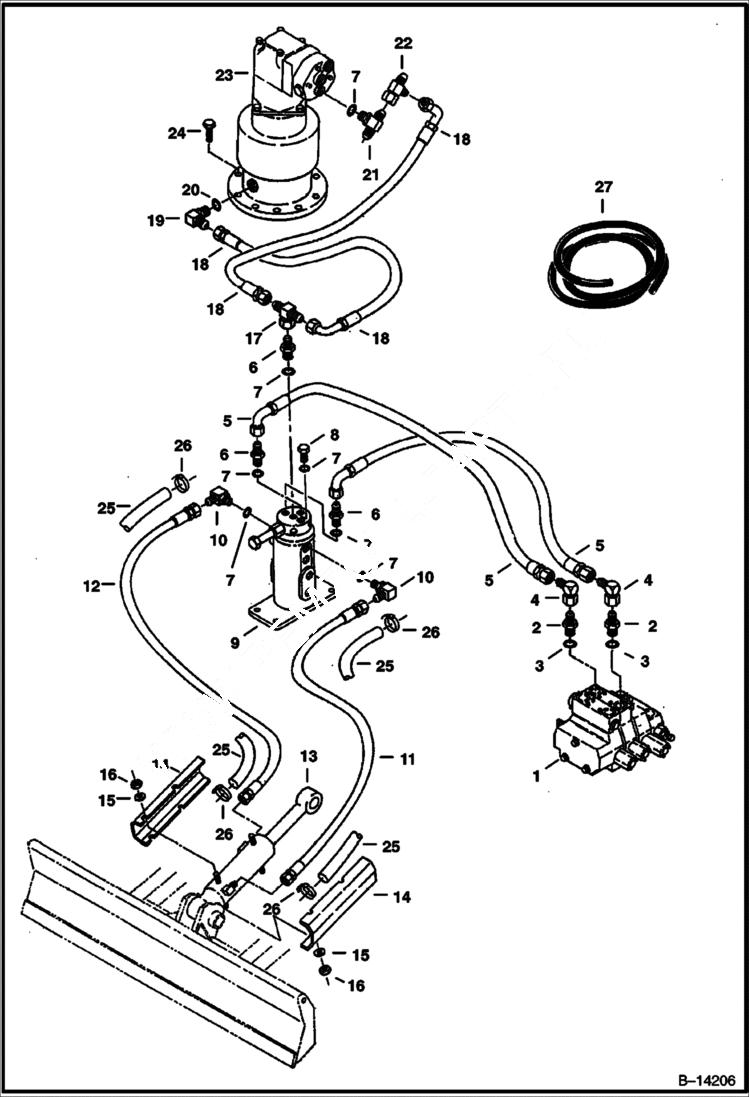

Запчасти Bobcat 225 HYDRAULIC CIRCUITRY W/Swivel Joint 6800524 Blade and Swing Drain HYDRAULIC SYSTEM

1

6658411

VALVE See Illustration CONTROL VALVE ASSEMBLY/ D2118 - control

2

743108

FITTING W/Ref. 3

3

79K8

O RING 10

4

11K5

FITTING

5

6537631

HOSE

6

15K5

FITTING W/Ref. 7

7

79K6

O RING 10

8

24K5

PLUG W/Ref. 7

9

7123864

SWIVEL ASSY See Illustration SWIVEL JOINT/ PE3057 - Was 6800524 - A

10

17K5

ELBOW W/Ref. 7

11

6589128

HOSE W/Hose Cover

12

6589127

HOSE W/Hose Cover

13

CYLINDER See Illustration BLADE CYLINDER/ B14362 blade

14

6537498

SHIELD

15

17EM100

WASHER

16

1DM10

NUT

17

14K5

TEE

18

6618195

HOSE Was 6536785 - A

19

6657392

ELBOW W/Ref. 20

20

6655244

O-RING

21

6535461

TEE W/Ref. 7

22

6535460

TEE

23

See Illustration SWING MOTOR/ C3252 See Illustration SWING MOTOR/ B18569 swing

24

1CM1225

BOLT

25

COVER NLA - 42'' (1067 mm) long - Order Ref. 27

26

6665221

CABLE TIE Metal - Requires Tool MEL-1427 to install the cable tie

27

6656155

HOSE COVER bulk - sold per foot - 1.25'' (31,8mm) ID
