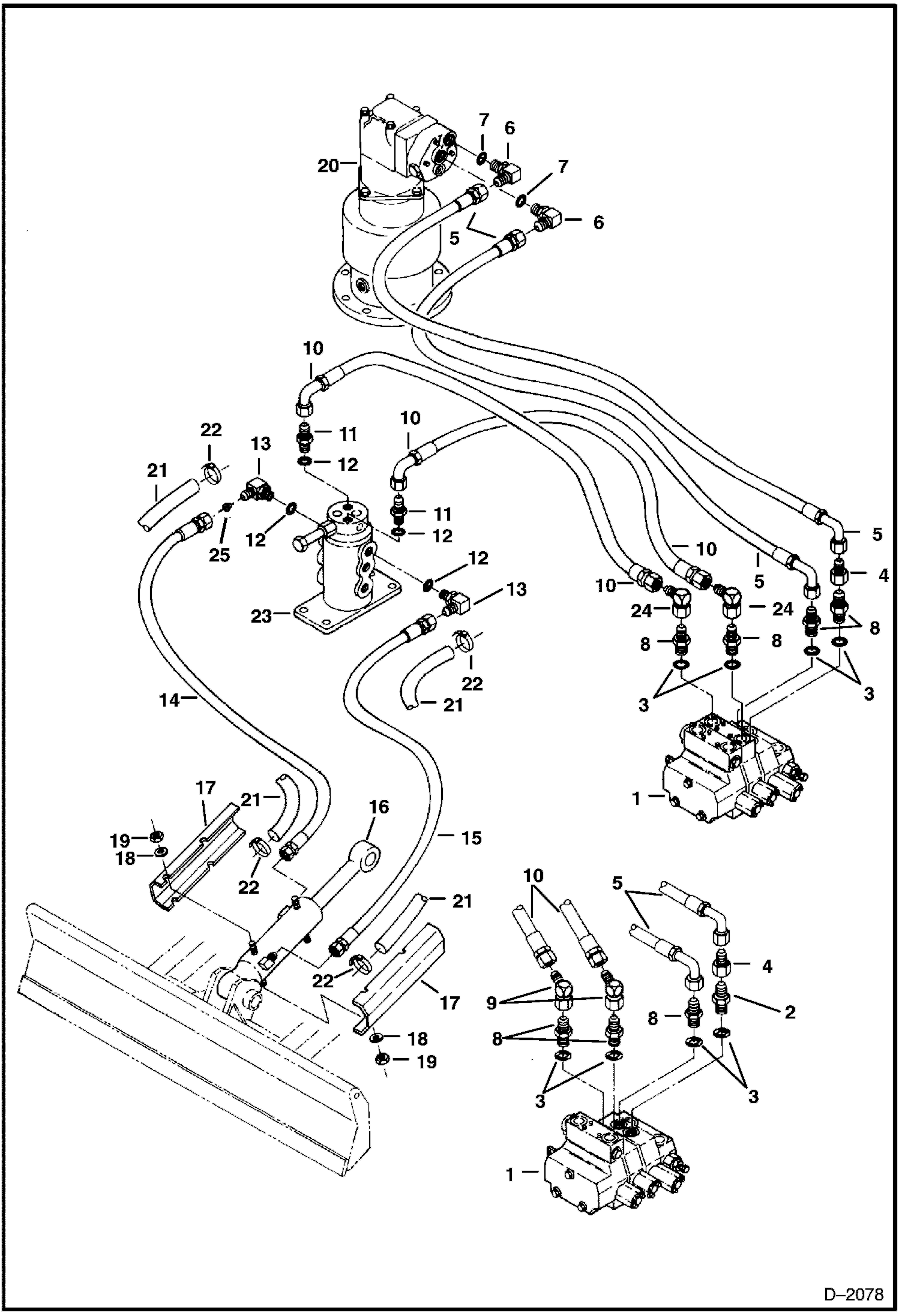

Запчасти Bobcat 225 HYDRAULIC CIRCUITRY Blade and Swing HYDRAULIC SYSTEM

1

6658411

VALVE See Illustration CONTROL VALVE ASSEMBLY/ D2118 control - Was 6656150 - A

2

15K6

ADAPTER W/Ref. 3

3

79K8

O RING 10

4

9K3

REDUCER

5

6640724

HOSE

6

17K5

ELBOW W/Ref. 7

7

79K6

O RING 10

8

743108

FITTING W/Ref. 3

9

12K5

ADAPTER

10

6537631

HOSE

11

6654895

ADAPTER W/Ref. 12

12

6655250

O-RING

13

6657392

ELBOW W/Ref. 12

14

6589128

HOSE W/Hose Cover - Was 6537628 - A

15

6589127

HOSE W/Hose Cover - Was 6537627 - A

16

CYLINDER See Illustration BLADE CYLINDER/ B14362 blade - A

17

6537498

SHIELD

18

17EM100

WASHER

19

1DM10

NUT

20

See Illustration SWING MOTOR/ B18569 See Illustration SWING MOTOR/ C3252 Swing

21

6656155

HOSE COVER bulk - sold per foot - 1.25'' (31,8mm) ID

22

6665221

CABLE TIE Metal - Requires Tool MEL - 1427 to install cable tie - Was 6610510 - B

23

SWIVEL JOINT See BTIE-031 - A

24

11K5

FITTING

25

6593801

ORIFICE
