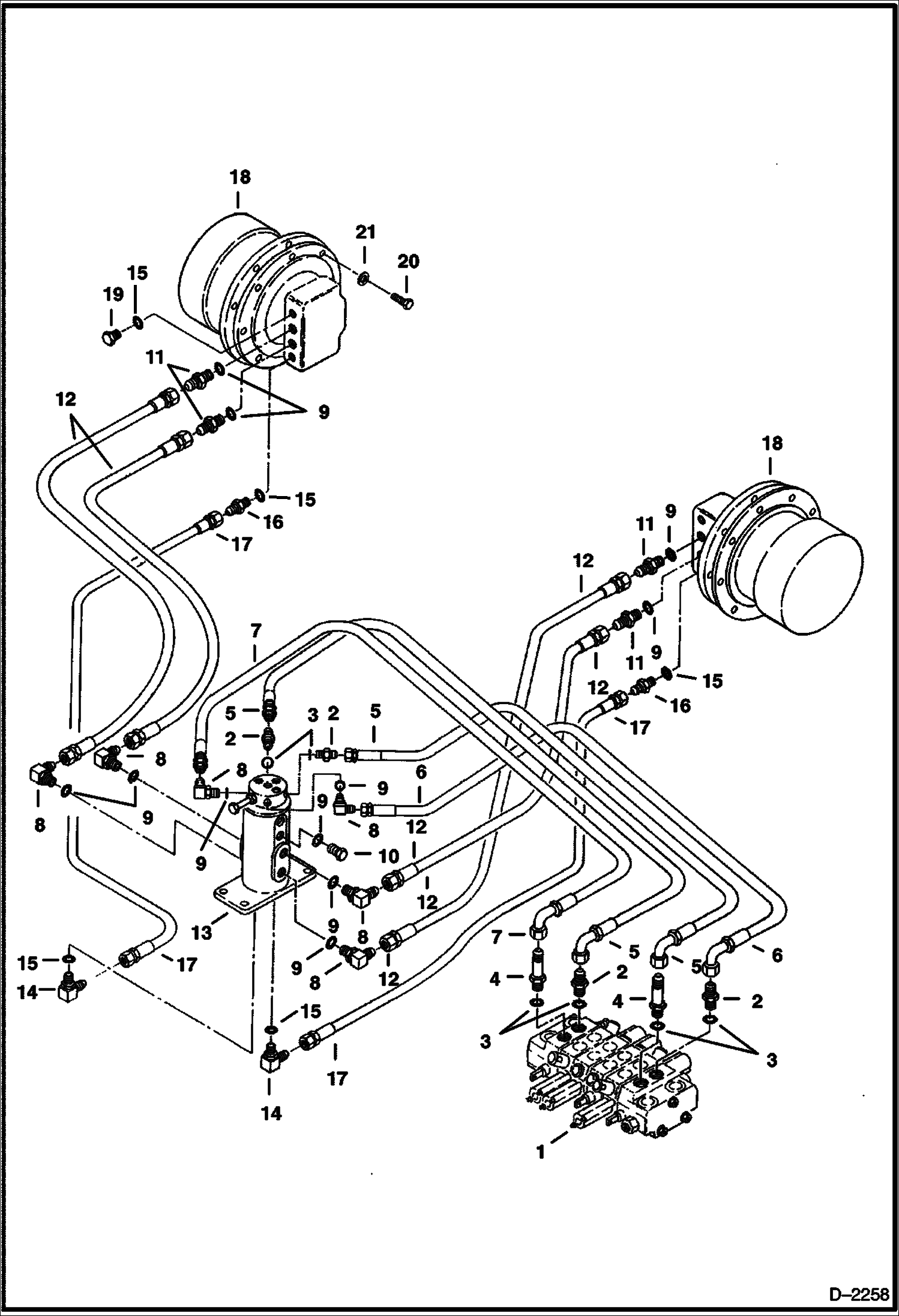

Запчасти Bobcat 225 HYDRAULIC CIRCUITRY W/Swivel Joint 6800524 Valve to Swivel joint to Travel Motor HYDRAULIC SYSTEM

1

6656151

VALVE See Illustration CONTROL VALVE ASSEMBLY/ B18548 - control

2

15K6

ADAPTER W/Ref. 3

3

79K8

O RING 10

4

16K6

FITTING W/Ref. 3

5

6536783

HOSE

6

6588358

HOSE

7

6588357

HOSE

8

17K6

ELBOW W/Ref. 9

9

79K6

O RING 10

10

24K5

PLUG W/Ref. 9

11

6654894

ADAPTER W/Ref. 9

12

6534008

HOSE

13

7123864

SWIVEL ASSY See Illustration SWIVEL JOINT/ PE3057 - Was 6800524 - A

14

17K5

ELBOW W/Ref. 9

15

6655244

O-RING

16

6654377

ADAPTER

17

6534010

HOSE

18

MOTOR See Illustration TRAVEL MOTOR/ D2104 See Illustration TRAVEL MOTOR/ D1974 Drive

19

6653021

PLUG

20

1CM1230

BOLT

21

6EM120

WASHER
