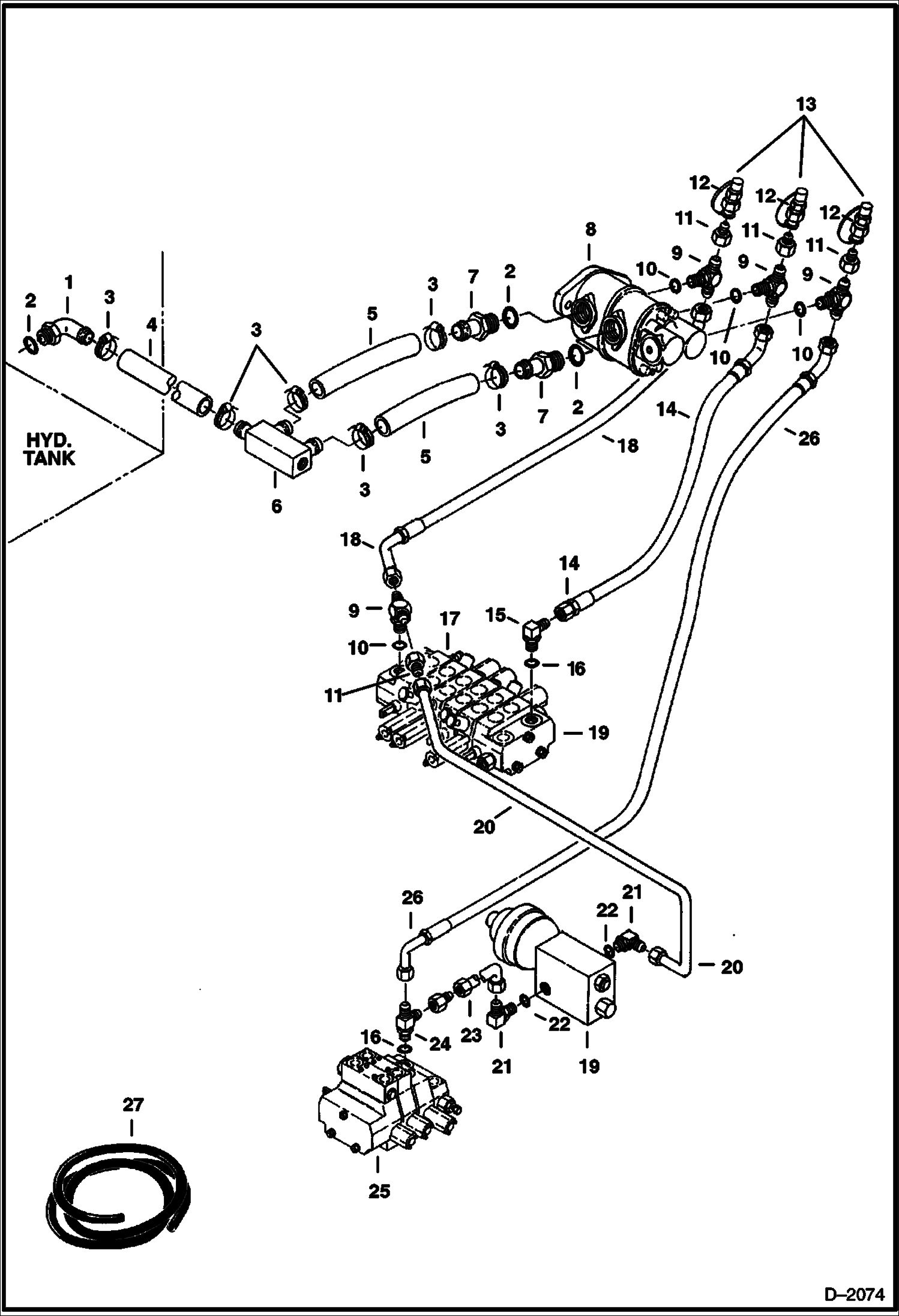

Запчасти Bobcat 225 HYDRAULIC CIRCUITRY Tank to Pump to Valves HYDRAULIC SYSTEM

1

6535627

ELBOW W/Ref. 2

2

79K20

O RING 10

3

42H24

CLAMP-5

4

HOSE NLA - 35 inch - Order Ref. 27

5

HOSE NLA - 9 inch - Order Ref. 27

6

6537505

MANIFOLD Supply

7

557492

ADAPTER W/Ref. 2

8

PUMP See Illustration TRIPLE GEAR PUMP/ B18547 assy

9

19K7

TEE W/Ref. 10

10

79K10

O RING 10 Was 91F7 Was 91F7 - A

11

784244

ADAPTOR

12

6646635

COUPLER Diagnostic

13

6630367

CAP

14

6537694

HOSE

15

17K7

ELBOW W/Ref. 16

16

79K10

O RING 10

17

6656151

VALVE See Illustration CONTROL VALVE ASSEMBLY/ B18548 - control

18

6538396

HOSE Was 6537695 - A

19

6657208

VALVE ASSY. See Illustration ACCUMULATOR VALVE/ C3279 - accumulator

20

6537523

TUBE

21

6654893

ELBOW W/Ref. 22

22

6655245

O-RING

23

6537526

TUBE

24

21K7

TEE W/Ref. 22

25

6658411

VALVE See Illustration CONTROL VALVE ASSEMBLY/ D2118 control - Was 6656150 - A

25

6658529

VALVE See Illustration RELIEF VALVE/ B25160 assy

26

6537525

HOSE

27

6673825

HOSE bulk - sold per foot - Was 1310909B - A
