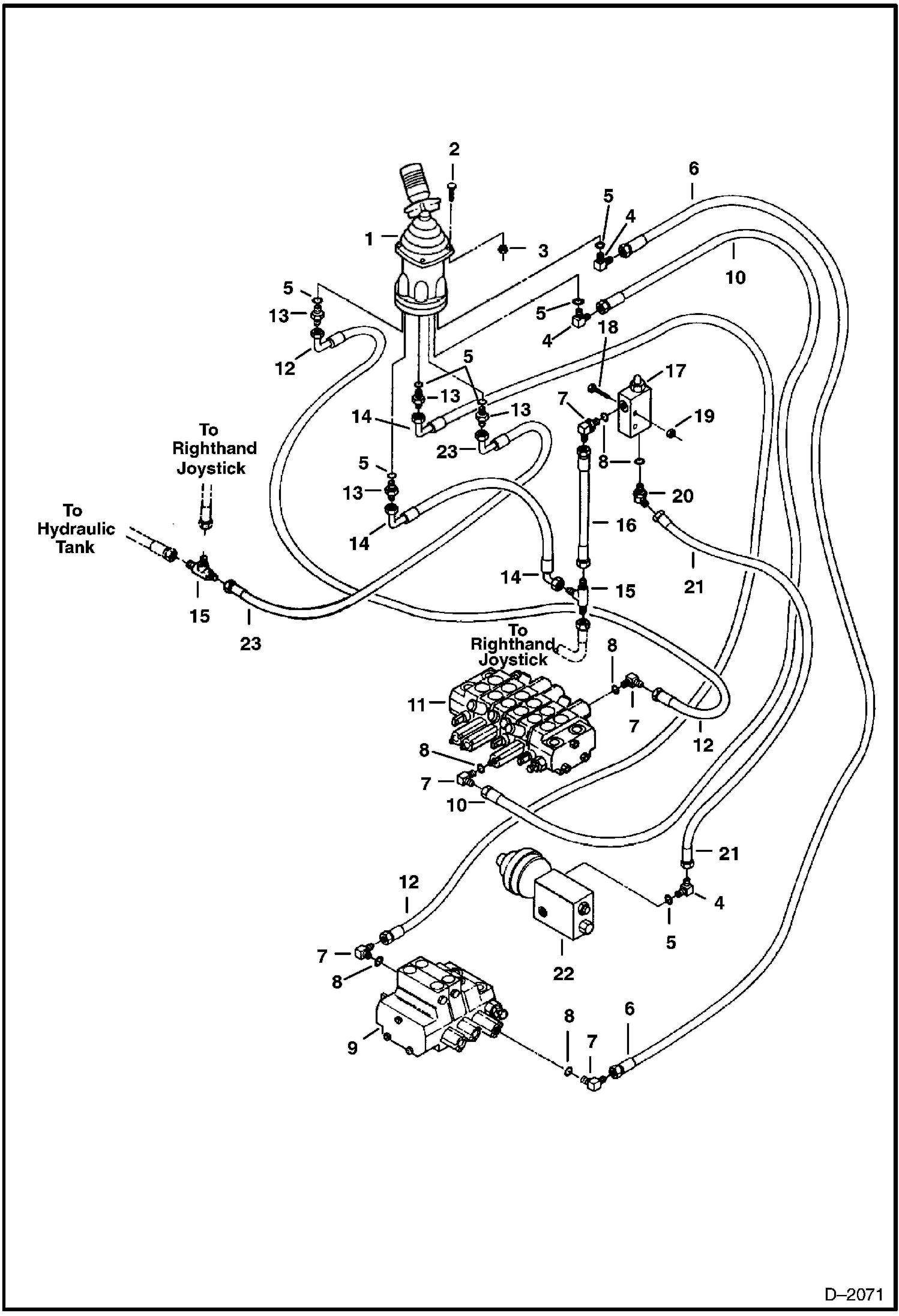

Запчасти Bobcat 225 HYDRAULIC CIRCUITRY (L.H. Joystick Controls) (Arm & Swing) ISO Control Pattern HYDRAULIC SYSTEM

1

6654119

JOYSTICK ASSY. See Illustration L.H. JOYSTICK CONTROLS/ D1973 - LH

2

1CM625

BOLT

3

1DM6

NUT

4

6657392

ELBOW W/Ref. 5

5

6655244

O-RING

6

6536599

HOSE

7

17K3

ELBOW W/Ref. 8 - Was 15K000003B - D

8

79K4

O RING 10

9

6658411

VALVE See Illustration CONTROL VALVE ASSEMBLY/ D2118 control - Was 6656150 - A

10

6577680

HOSE Was 6537680 - D

11

6656151

VALVE See Illustration CONTROL VALVE ASSEMBLY/ B18548 - control

12

6536790

HOSE Was 6537690 - D

13

6654895

ADAPTER W/Ref. 5

14

6536784

HOSE

15

10K5

TEE

16

6536797

HOSE

17

6667386

VALVE See Illustration CHECK VALVE/ B13826 - check - Was 6657207 - A

18

1CM840

BOLT

19

1DM8

NUT

20

18K3

ELBOW W/Ref. 8

21

6536793

HOSE Was 6537693 - D

22

6657208

VALVE ASSY. See Illustration ACCUMULATOR VALVE/ C3279 - accumulator

23

6534636

HOSE
