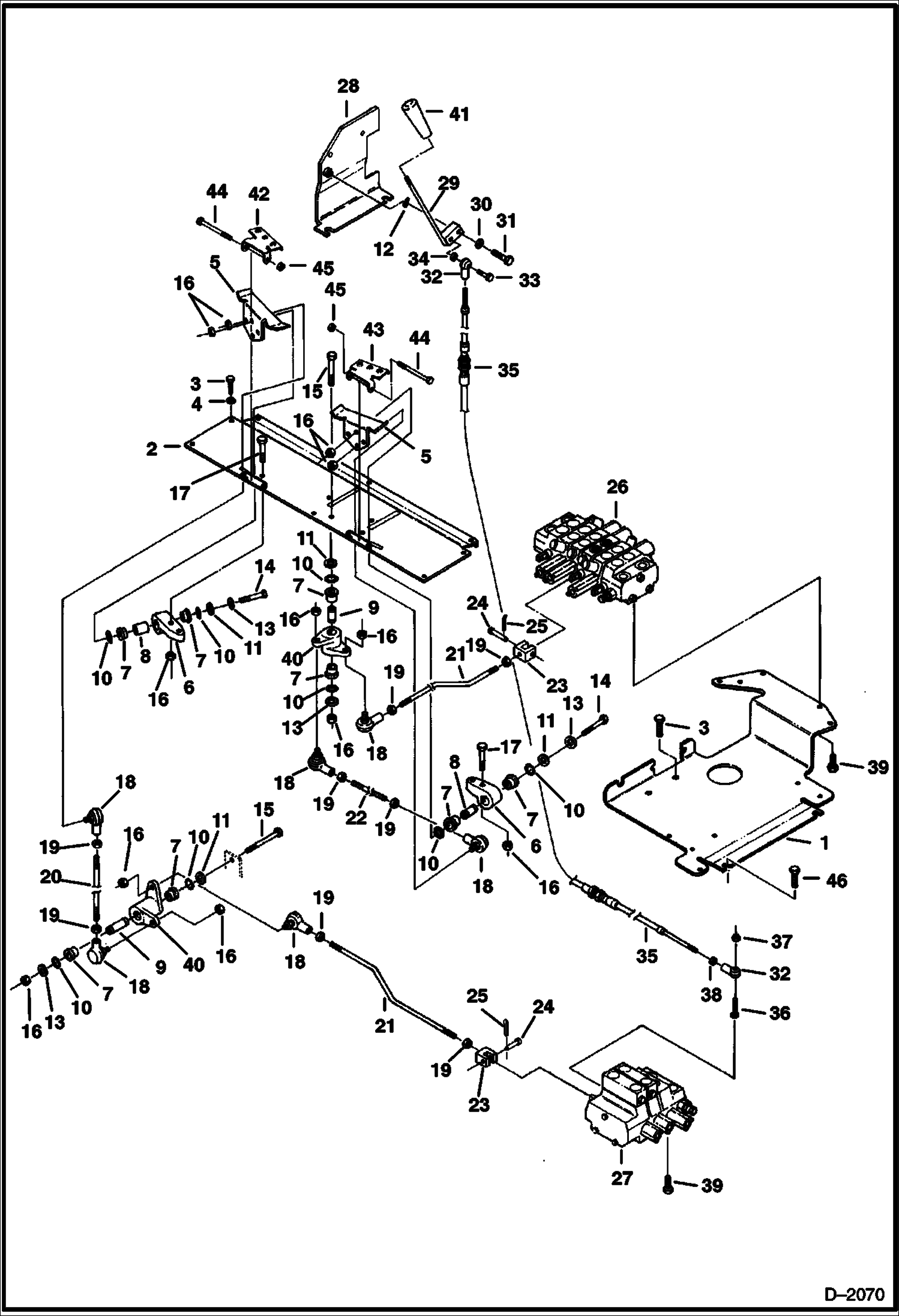

Запчасти Bobcat 225 BLADE, BOOM SWING AND AUXILIARY CONTROLS CONTROLS

1

6537469

PLATE Valve Mounting

2

6537491

PLATE Control Mounting

3

1CM1020

BOLT

4

15EM100

WASHER

5

6589585

PEDAL Was 6537479 - A

6

6537481

MOUNT

7

6536801

BUSHING

8

6536545

SLEEVE Pedal

9

6537487

SLEEVE Lever

10

58K015

O-RING 10

11

6536802

WASHER

12

6536803

WASHER Wave

13

27E6

WASHER 5

14

1CM1055

BOLT Pedal

15

1CM1070

BOLT Lever

16

49DM10

NUT Was 39DM00010B - B

17

1CM1025

BOLT

18

6536531

BALL JOINT

19

1DM10

NUT

20

6537486

ROD

21

6537484

ROD

22

6537485

ROD

23

6536549

YOKE

24

6536543

PIN

25

1F212

PIN

26

6656151

VALVE See Illustration CONTROL VALVE ASSEMBLY/ B18548 - control

27

6658411

VALVE See Illustration CONTROL VALVE ASSEMBLY/ D2118 - control

28

6537432

BRACKET Throttle and Blade

29

6537426

LEVER

30

17EM100

WASHER

31

1CM1016

SCREW

32

6593671

CONNECTOR

33

1CM620

BOLT

34

15EM60

WASHER

35

6657715

CABLE

36

1CM625

BOLT

37

1DM6

NUT

38

62D4

NUT

39

1C512

BOLT

40

6536831

LEVER

41

6510093

HANDLE GRIP

42

6536798

PEDAL LOCK

43

6537640

PLATE

44

1CM8100

SCREW

45

49DM8

NUT Was 39DM00008B - D

46

29CM1020

BOLT
