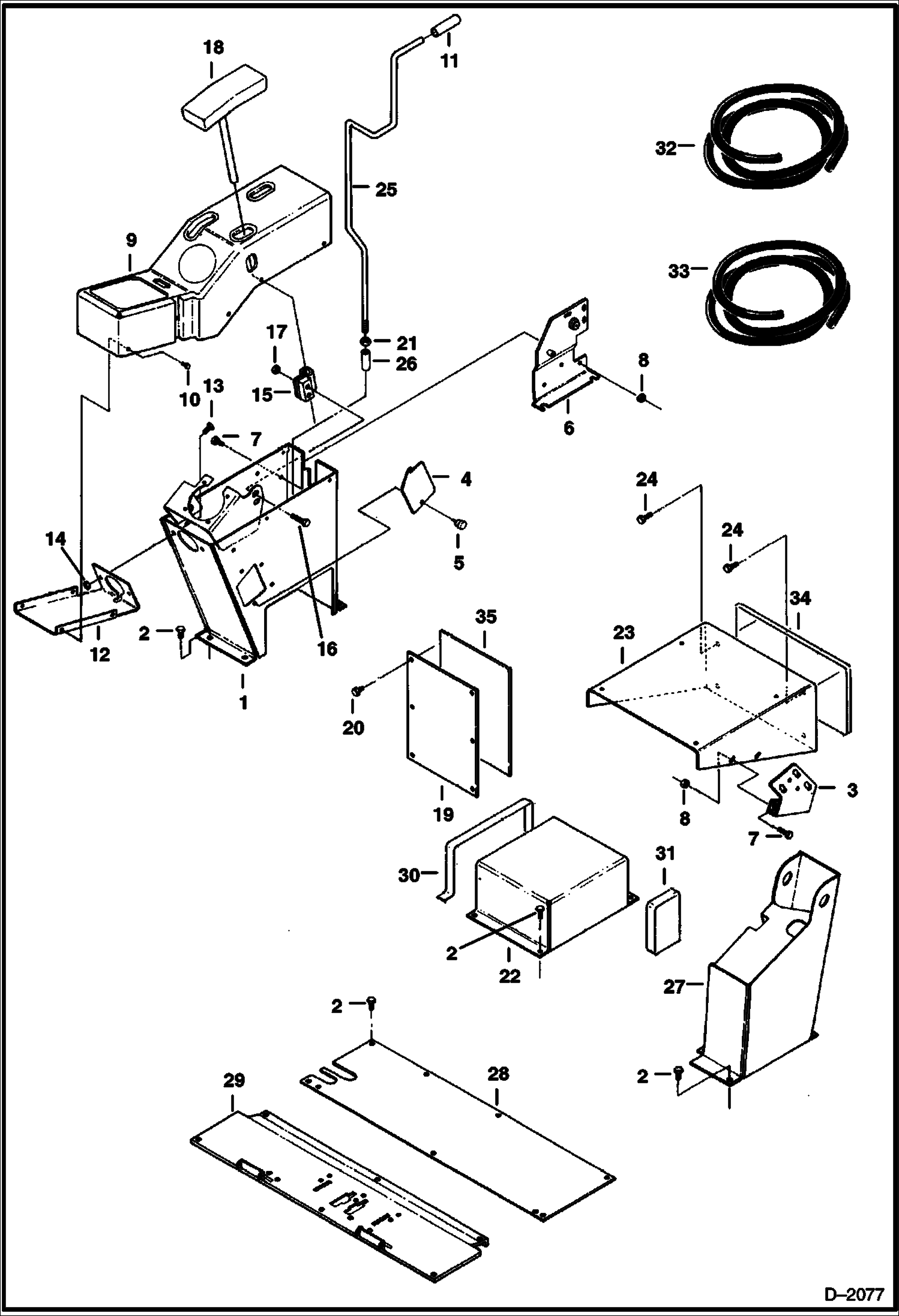

Запчасти Bobcat 225 CONTROL CONSOLE AND FLOORBOARDS CONTROLS

1

CONSOLE See BTIE-017 NLA - R.H - Was 6537540 - A

1

6656151

VALVE See Illustration CONTROL VALVE ASSEMBLY/ B18548 - control

1

6539785

CONSOLE R.H.

2

29CM1020

BOLT Was 1CM01030B - B

3

6537552

PLATE

4

6537544

COVER

5

6631000

THUMBSCREW

6

6537432

BRACKET See Illustration BLADE, BOOM SWING AND AUXILIARY CONTROLS/ D2070 See Illustration FUEL CONTROL LEVER/ D2079 throttle & blade

7

29CM816

SCREW Was 1CM00816B - B

8

45DM8

NUT 10 Was 1DM00008B - B

9

6596348

COVER See BTIE-041 for ignition switch hole information - Was 6588771 - A

10

29CM616

BOLT Was 1CM00616B - B

11

KNOB NLA - Was 6658108 - A

12

6537528

BRACKET Gauge Panel

13

29CM1020

BOLT Was 1CM01020B - B

14

1DM10

NUT

15

6537514

MOUNT Arm Rest

16

1CM1045

BOLT

17

49DM10

NUT Was 39DM00010B - B

18

6537510

ARM REST

19

6535628

PANEL Engine Access

20

29CM820

SCREW Was 1CM00820B - B

21

1DM12

LOCK NUT

22

COVER See BTIE-017 NLA - Swing Motor - Was 6537596 - A

22

6587618

COVER Swing Motor - Was 6586944 - A

23

6539788

MOUNT See Illustration SEAT/ C3163 seat - Was 6535509 - A

24

29CM1030

BOLT Was 1CM01030B - B

25

6537639

LEVER Swing Lock

26

6533957

PIN Swing Lock

27

6534018

CONSOLE See Illustration CONTROL CONSOLE/ D2076 L.H.

28

6537545

PLATE Floorboard

29

6537491

PLATE See Illustration BLADE, BOOM SWING AND AUXILIARY CONTROLS/ D2070 control mounting

30

SEAL NLA - 24'' (610mm) long - Order Ref. 32

31

INSULATION NLA - 6'' (53 mm) long - Order Ref. 33

32

6513152

SEAL bulk - sold per foot

33

SEAL NLA - bulk - sold per foot - Was 6632217 - B

34

6587155

INSULATION

35

6587616

INSULATION
