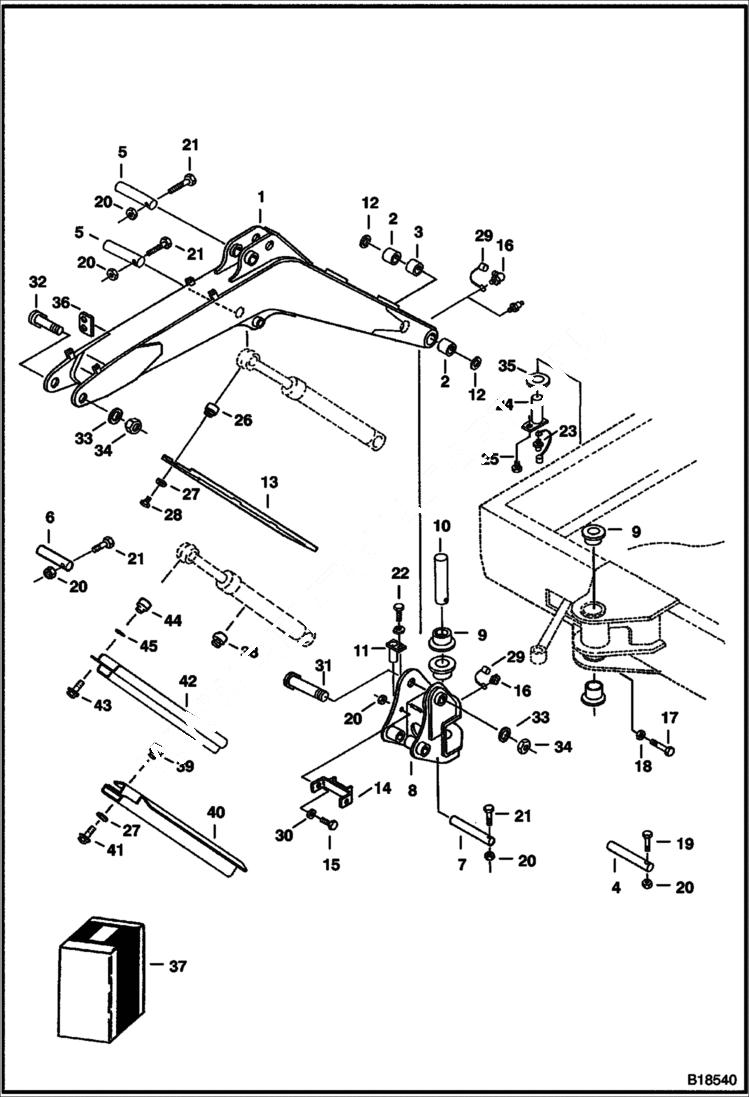

Запчасти Bobcat 225 SWING BRACKET & BOOM WORK EQUIPMENT

1

6587229

BOOM See BTIE-019 Was 6537466 - A

2

6539824

BUSHING Was 6534076 - A

3

6534075

SPACER

4

6534168

PIN Boom Mounting

5

6534165

PIN

6

6534169

PIN Arm Mounting

7

6534164

PIN

8

6587332

BRACKET Swing - also order Ref. 31, 33 & 34 - Was 6534200 - A

9

6539827

BUSHING Was 6534052 - A

10

6534167

PIN

11

6534177

PIN

12

6535312

WASHER

13

6538353

SHIELD Cylinder - Also Order (1) 17EM00120B & (1) 6EM00120B - Was 6534230 - A

14

6535386

CLAMP

15

1CM1045

BOLT Was 1CM01015B - B

16

12H15

FITTING, GREASE 5

17

1CM1690

BOLT

18

39DM16

NUT Was 49DM-16 - B

19

1CM1075

BOLT

20

49DM10

NUT

21

1CM1065

BOLT

22

1CM1220

BOLT

23

10H25

FITTING, GREASE 5

24

6535633

PIN

25

1CM1225

BOLT

26

6537556

SPACER

27

17EM100

WASHER

28

1CM1235

BOLT Was 1CM01035B - D

29

6652943

COVER grease fitting

30

6EM100

WASHER

31

6587227

PIN Boom Mounting

32

6587225

PIN Arm Mounting

33

1EM300

WASHER

34

39DM30

NUT Was 40DM00030B - D

35

6535313

SHIM

36

6589353

PLATE Welded on Boom

37

6800328

KIT Boom Cylinder Guard - W/Ref. 38-41

38

6628788

GUIDE Boom Cylinder - Weld on

39

6800137

SPACER for Use W/Ref.40 (NLA/6596469 shield)

40

SHIELD NLA - Order 7130859 shield - also order Ref. 43-45 - Was 6596469 - A

41

29CM1235

BOLT Use Locite #242 on the bolt threads - Was 59CM01235B - for use with Ref. 40 (NLA/6596469 shield) - A

42

7130859

SHIELD W/A

43

7131273

SCREW for Use W/Ref. 42

44

7131109

SPACER for Use W/Ref. 42

45

6536803

WASHER spring washer - for Use W/Ref 42
