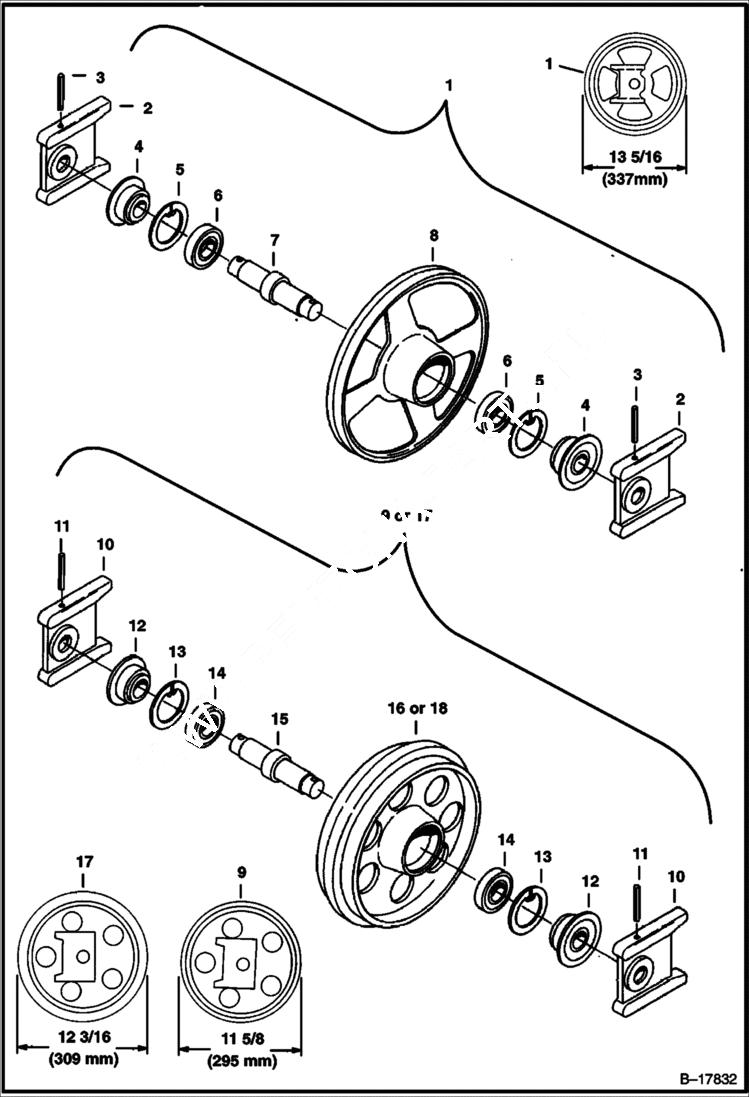

Запчасти Bobcat 225 FRONT IDLER UNDERCARRIAGE

1

6534238

IDLER ASSY. Assy. - Ref. 2-8 - Rubber Track - Except Rubber Track 6633906 - See remarks for steel tracks also - Order components

2

6588995

BLOCK Was 6535559 - A

3

2JM1060

PIN

4

6655061

SEAL Was 6652379 - D

5

7JM72

SNAP RING Was 6655060 - A

6

6684339

BEARING Was 6655856 - A

7

6588997

SHAFT Was 6535558 - A

8

6535560

IDLER Rubber Track - 337 mm dia.

9

IDLER See BTIE-030 NLA - Assy. - Ref. 10-16 - For all steel tracks and for rubber track 6663906 - The rubber track P/N is marked on the inside surface of the track - Order 6808250 - Was 6588994 - A

10

6588995

BLOCK Was 6535559 - A

11

2JM1060

PIN

12

6655061

SEAL Was 6652379 - D

13

7JM72

SNAP RING Was 6655060 - A

14

6684339

BEARING Was 6655856 - A

15

6588997

SHAFT Was 6535558 - A

16

IDLER Steel Track - 295 mm dia. - Order 6808250 - Was 6535549 - A

17

IDLER See BTIE-030 NLA - Assy. - W/Refs. 10-15 & 18 - Order Ref. 1 or 16 - Order 6808137 - Was 6588999 - A

18

IDLER NLA - 12 3/16 inch (309 mm) diameter - Order 6808137
