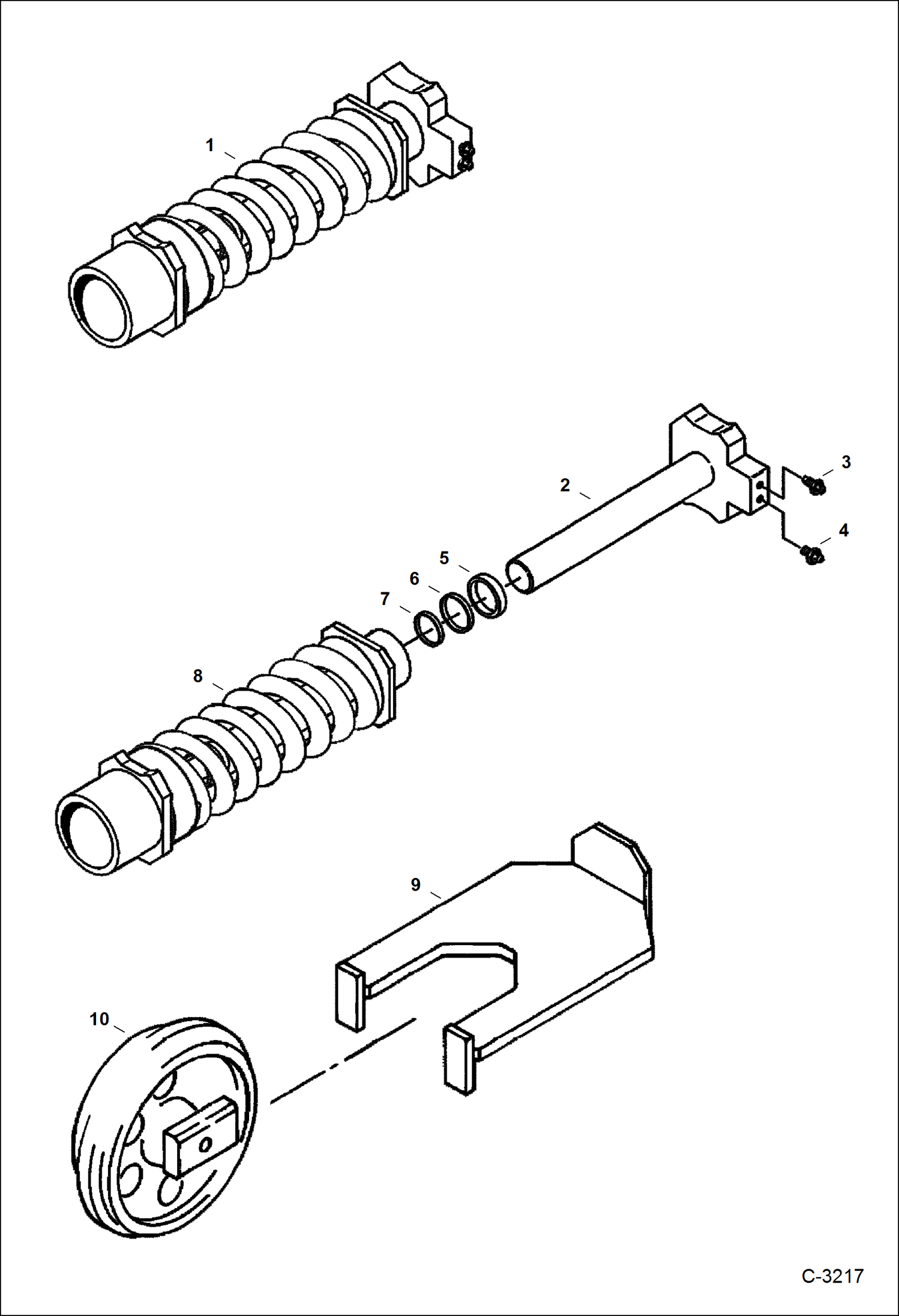

Запчасти Bobcat 225 RECOIL SPRING UNDERCARRIAGE

1

6535638

TRACK TENSIONER Ref. 2-8

2

6587493

SHAFT Was 6536237 - A

3

6645812

SCREW, BLEED

4

6655752

FITTING 68,900 kpa (10,000 psi) - DO NOT SUBSTITUTE

5

6690707

WIPER, ROD CYL Was 1657087 - A

6

80K222

BK UP RG

7

58K222

O-RING

8

SPRING ASSY NLA - Order Ref. 1

9

6535538

BRACKET Idler Wheel

10

IDLER See Illustration FRONT IDLER/ B17833 See Illustration FRONT IDLER/ B17832 See Illustration FRONT IDLER/ B17805
