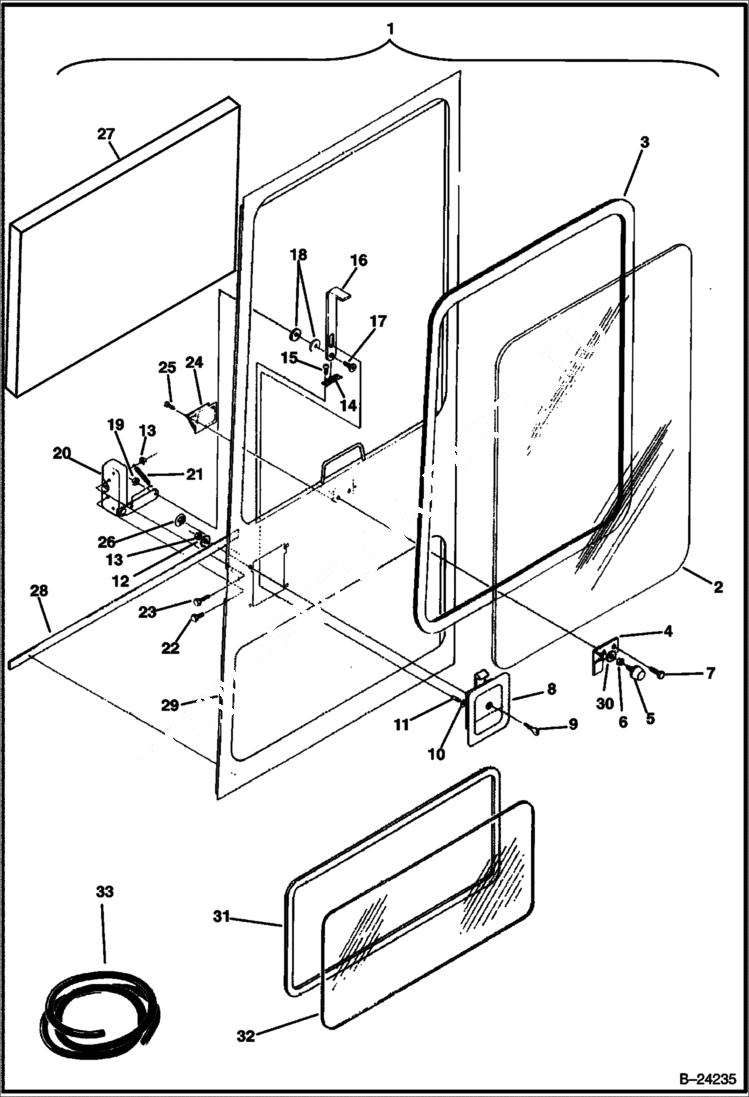

Запчасти Bobcat 225 OPERATOR CAB MAIN FRAME

1

6662022

DOOR Assy. - Ref. 2-29 - Was 6657087 - A

2

6654174

GLASS

3

MOULDING NLA - 108'' (2743mm) long - Order Ref. 33

4

6657097

STRIKER

5

6657098

BUMPER

6

61D5

NUT

7

6657099

BOLT

8

6648421

LATCH W/Ref. 9 - Uses Key LL-24

8

6661629

LATCH W/Ref. 9 - Uses Key cut no. PK510

9

6650683

KEY LL-24

9

6587458

KEY Cut no. PK510

11

6654154

BOLT Striker

12

4E4

WASHER

13

85D4

NUT 5

14

6648413

BUSHING Door

15

6532168

BOLT

16

6654171

CATCH

17

6534900

BOLT Was 6648408 - A

18

6648414

WASHER

19

85D5

NUT 5

20

6648417

LATCH

21

6654147

SPRING

22

17C412

BOLT 5

23

17C418

BOLT

24

6654785

ASH TRAY

25

6654142

SCREW

26

PLUG NLA - Was 6648354 - A

27

INSULATION NLA - Used on Doors W/O Lower Glass Only - Was 6654173 - A

28

6654162

SEAL

29

DOOR NSS - Order 6662022 - Was 6654786 - A

30

WASHER NLA - Use W/soild piece door - Was 6662056 - A

31

MOULDING NLA - 72'' (1829mm) long - Order Ref. 33

32

6662058

GLASS Use W/soild piece door

33

6648405

SEAL Bulk - Order Per Foot
