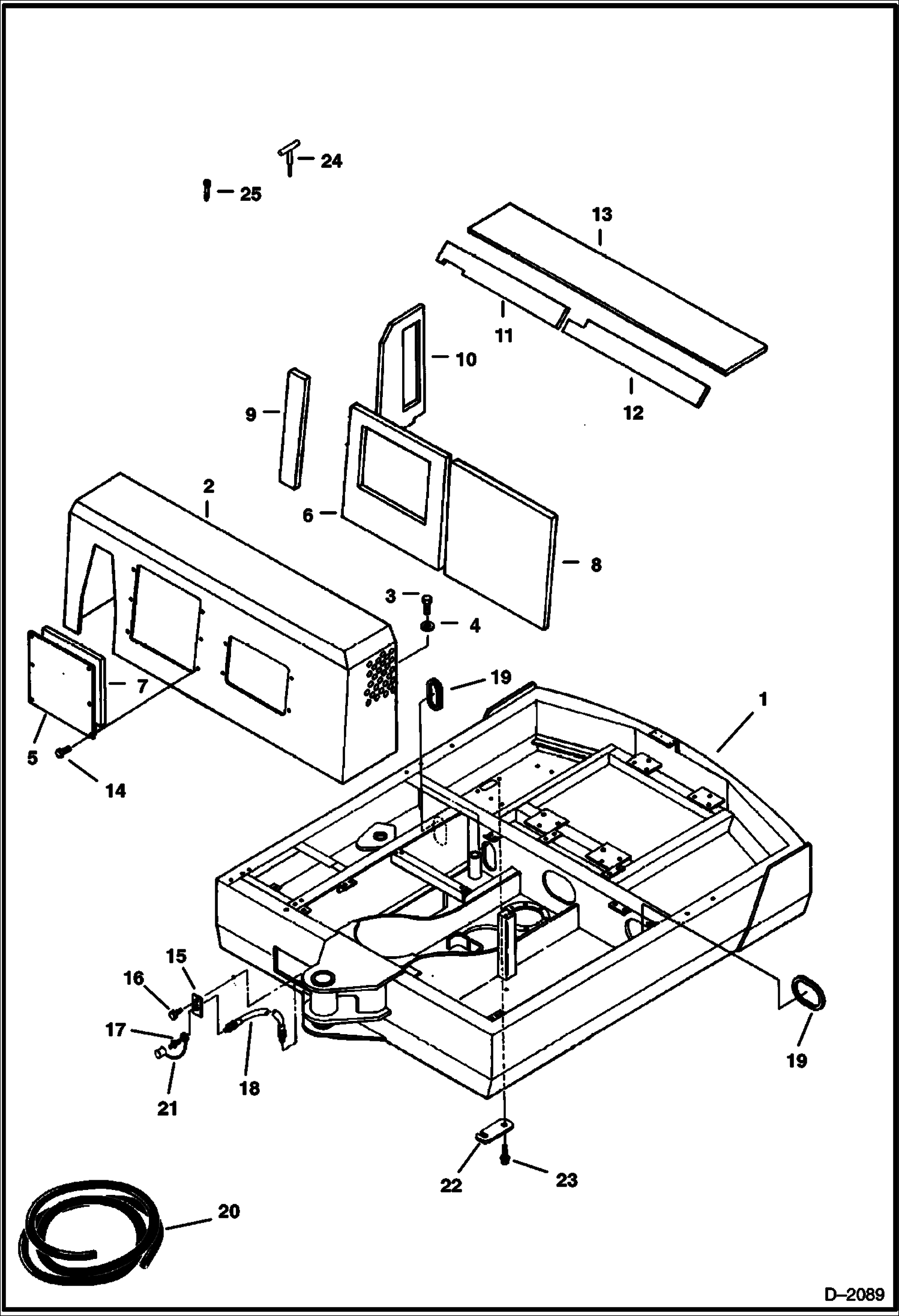

Запчасти Bobcat 225 REVOLVING FRAME MAIN FRAME

1

6536240

FRAME

2

6535318

COVER Engine Panel

3

1CM1225

BOLT

4

15EM120

WASHER

5

6535628

PANEL

6

6535550

INSULATION Fastens Inside of Engine Cover

7

6536193

INSULATION Fastens Inside of Engine Cover

8

6536194

INSULATION Fastens Inside of Engine Cover

9

6535553

INSULATION Fastens Inside of Engine Cover

10

6535554

INSULATION Fastens Inside of Engine Cover

11

6535555

INSULATION Fastens Inside of Engine Cover

12

6535556

INSULATION Fastens Inside of Engine Cover

13

6535557

INSULATION Fastens Inside of Engine Cover

14

1CM820

BOLT

15

6586104

PLATE

16

1CM1025

BOLT

17

10H25

FITTING, GREASE 5

18

6531180

HOSE Grease

19

MOULDING NLA - 266 mm Long - Order Ref. 20

20

6654139

MOULDING bulk - sold per foot

21

6652943

COVER grease fitting

22

6539292

COVER

23

1CM1020

BOLT

24

6586494

PIN Alignment - Service Tool for aligning Swing Bearing when upper structure has been removed from undercarriage

25

6535902

BOLT Alignment - Service Tool for aligning Swing Bearing when upper structure has been removed from undercarriage
