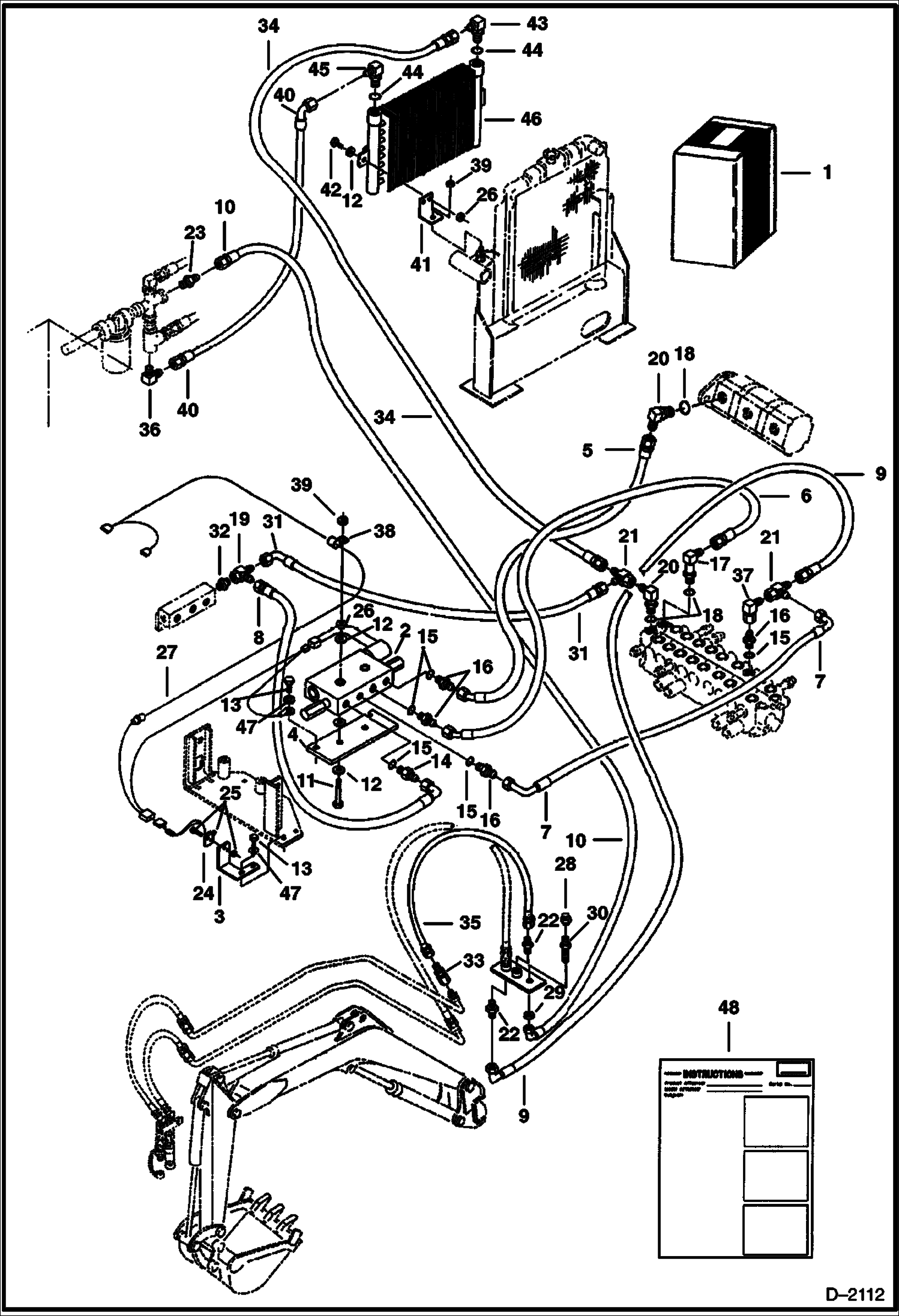

Запчасти Bobcat 225 HI-FLOW AUXILIARY HYDRAULIC KIT ACCESSORIES & OPTIONS

1

6536769

KIT hi-flow auxiliary hyd.

2

6657013

VALVE See Illustration ISO TO STANDARD CONTROLS/ B17821

3

6535612

BRACKET

4

6536109

PLATE

5

6586027

HOSE

6

6533248

HOSE

7

6536128

HOSE

8

6811151

HOSE Was 6536129 - A

9

6536119

HOSE

10

6536144

HOSE

11

1CM870

BOLT

12

1EM80

WASHER

13

1CM1030

BOLT

14

743108

FITTING W/Ref. 15

15

79K8

O RING 10

16

731793

CONNECTR

17

6519195

ELBOW W/Ref. 13

18

79K10

O RING 10

19

13K5

TEE

20

17K7

ELBOW

21

13K7

FITTING

22

6655751

ADAPTER

23

6655752

FITTING 68,900 kpa (10,000 psi) - DO NOT SUBSTITUTE

24

6579357

SWITCH

25

6646199

HARDWARE Includes Actuator, Bolt & Nut

26

39DM8

NUT

27

6536140

HARNESS

27

6656270

FUSE AGC5

28

36K7

FITTING

29

86F7

LOCK NUT

30

45K7

CONNECTR bulkhead

31

6536143

HOSE

32

6655790

ADAPTER

33

6536142

ADAPTER

34

6536146

HOSE

35

6536145

HOSE

36

6655838

ELBOW

37

11K7

ADAPTER

38

30H42

CLAMP

39

1DM8

NUT

40

6705981

HOSE was 6700232 - A

41

6536768

BRACKET

42

1CM820

BOLT

43

ELBOW NLA - W/Ref. 44 - Was 17KB001012B - A

44

79K12

O RING 10

45

17K8

FITTING W/Ref. 44

46

6656008

OIL COOLER

47

15EM100

WASHER

48

6720461

INSTRUCTIONS
