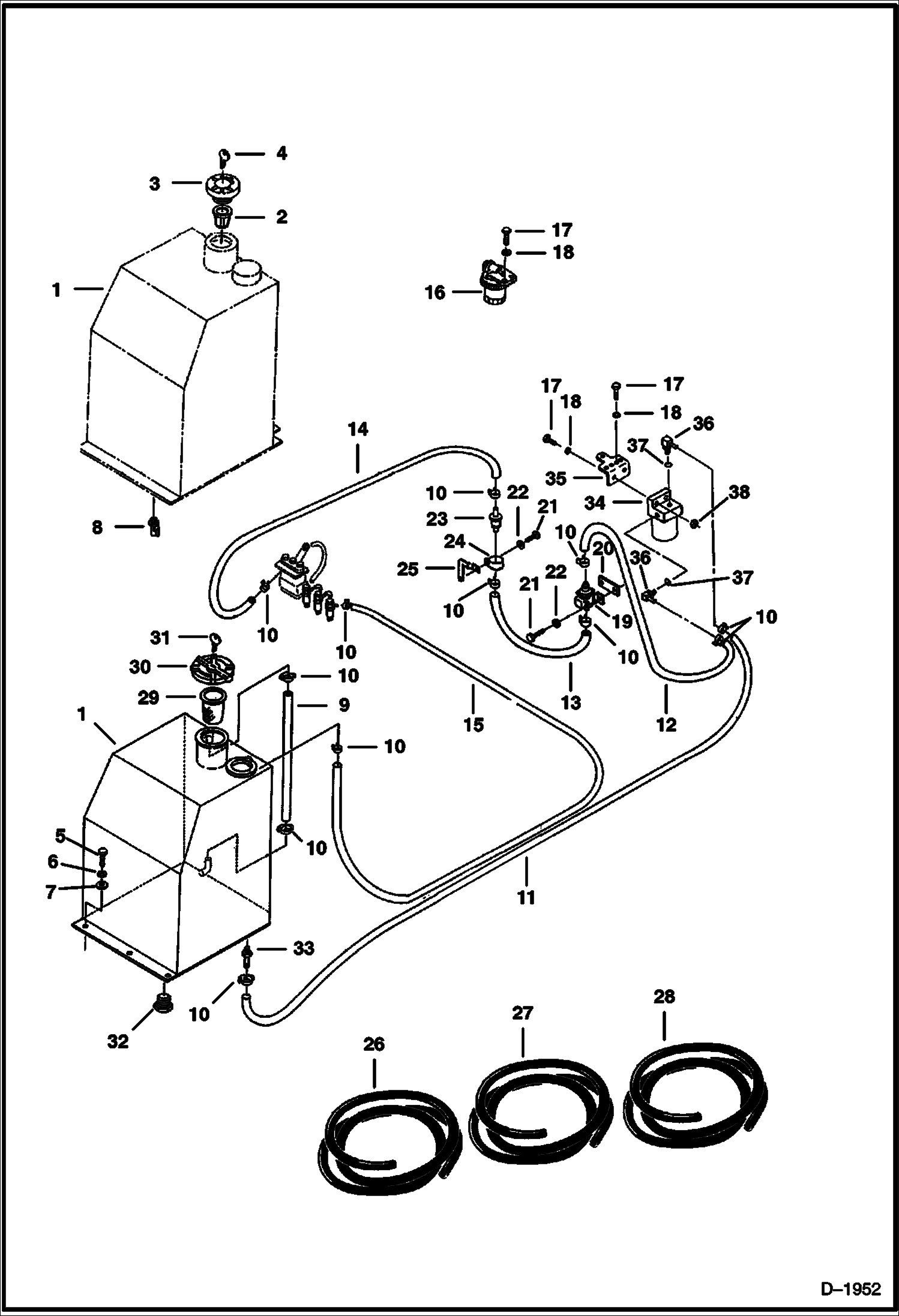

Запчасти Bobcat 225 FUEL SYSTEM POWER UNIT

1

TANK NLA - fuel - Order 6535604 , 6569219 and 6654373 - Was 6535513 - A

1

6535604

TANK

2

6535215

STRAINER

3

6535212

CAP locking

4

KEY NLA - Was 6535217 - A

4

6535362

KEY

5

1CM1020

BOLT

6

6EM100

WASHER

7

15EM100

WASHER

8

6534704

DRAIN VALVE

9

HOSE NLA - 350 mm - Order Ref. 26

10

42HS04

CLAMP, HOSE Was 6515575 - A

11

HOSE NLA - 2000 mm - Order Ref. 27

12

HOSE NLA - 700 mm - Order Ref. 27

13

HOSE NLA - 650 mm - Order Ref. 27

14

HOSE NLA - 230 mm - Order Ref. 27

15

HOSE NLA - 2800 mm - Order Ref. 28

16

FILTER See Illustration FUEL FILTER/ B13018 See BTIE-024 NLA - fuel - Order ref. 34 thru 38 - Was 6653959 - A

17

1CM820

BOLT

18

6EM80

WASHER, SPRING

19

3975370

PUMP FUEL

20

6652023

CUSHION

21

1CM616

SCREW Was 1CM00615B - A

22

6EM60

WASHER, SPRING

23

6633977

FILTER fuel - Was 6511393 - B

24

3918244

BAND

25

6535664

BRACKET Fastens to Radiator

26

6653483

HOSE bulk - Sold Per Foot

27

6577822

HOSE bulk - sold per foot

28

6534703

HOSE bulk - Sold Per Foot

29

7120881

SCREEN, FILLER Was 6569219 - A

30

CAP NLA - locking - W/Ref. 31 - Code GC020 - Order 6661696 - Was 6654373 - A

30

6661696

CAP, FUEL LOCKING locking - order key separately - code PK510

31

6654374

KEY keycode GC020

31

6587458

KEY keycode PK510

32

41K12

PLUG

33

1317483

NIPPLE

34

6667353

FILTER ASSY See BTIE-024 fuel - Was 6657020 - A

34

6667352

FILTER, FUEL W/SEPARATOR 12 Was 6647773 - A

34

6658180

PLUG, BLEED

35

6587372

PLATE

36

ELBOW NLA - W/Ref. 37 - flat boss face - Was 6657083 - A

36

6715183

ELBOW W/Ref. 37 - check boss face to determine correct replacement o-ring

37

79K5

O RING 10 flat boss face

37

99K5

O-RING tapered boss face

38

49DM8

NUT
