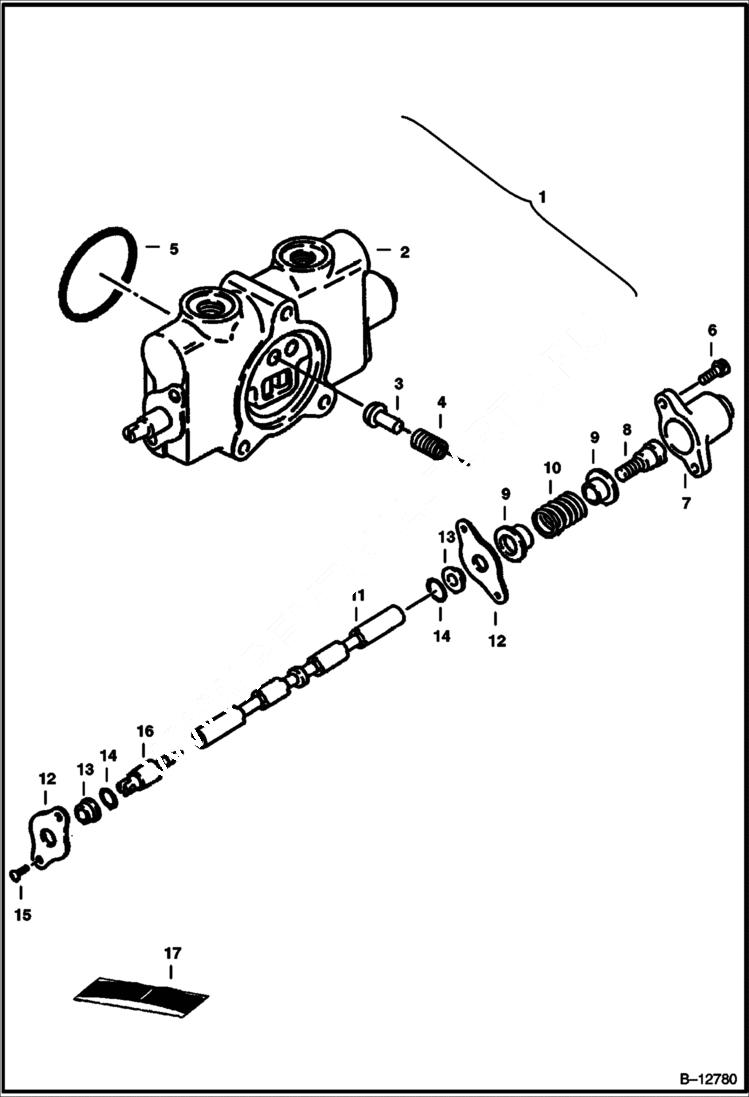

Запчасти Bobcat 220 VALVE SECTION (Auxiliary, Boom, Bucket, Boom Swing, & Blade) HYDRAULIC SYSTEM

1

6655560

VALVE Assy - Aux. - Ref. 2-15 - Was 6653086 - A

1

6653096

VALVE Assy., Blade - Ref. 2-15

1

6653095

VALVE Assy., Boom - Ref. 2-15

1

6653094

VALVE Assy., Bucket - Ref. 2-15

1

6653093

VALVE Assy., Boom swing - Ref. 2-15

2

HOUSING NSS

3

6653079

CHECK VALVE

4

6653078

SPRING

5

6653396

O-RING

6

6653076

BOLT

7

6653081

COVER

8

6653084

SCREW

9

6653083

RETAINER

10

6653082

SPRING Auxiliary section

10

6654030

SPRING Blade, Boom, Bucket & Boom Swing section

11

SPOOL NSS

12

6653080

PLATE

13

6653398

WIPER

14

6653397

O-RING

15

6653077

SCREW

16

6653085

HEAD

17

6653075

SEAL KIT Ref. 5, 13 & 14
