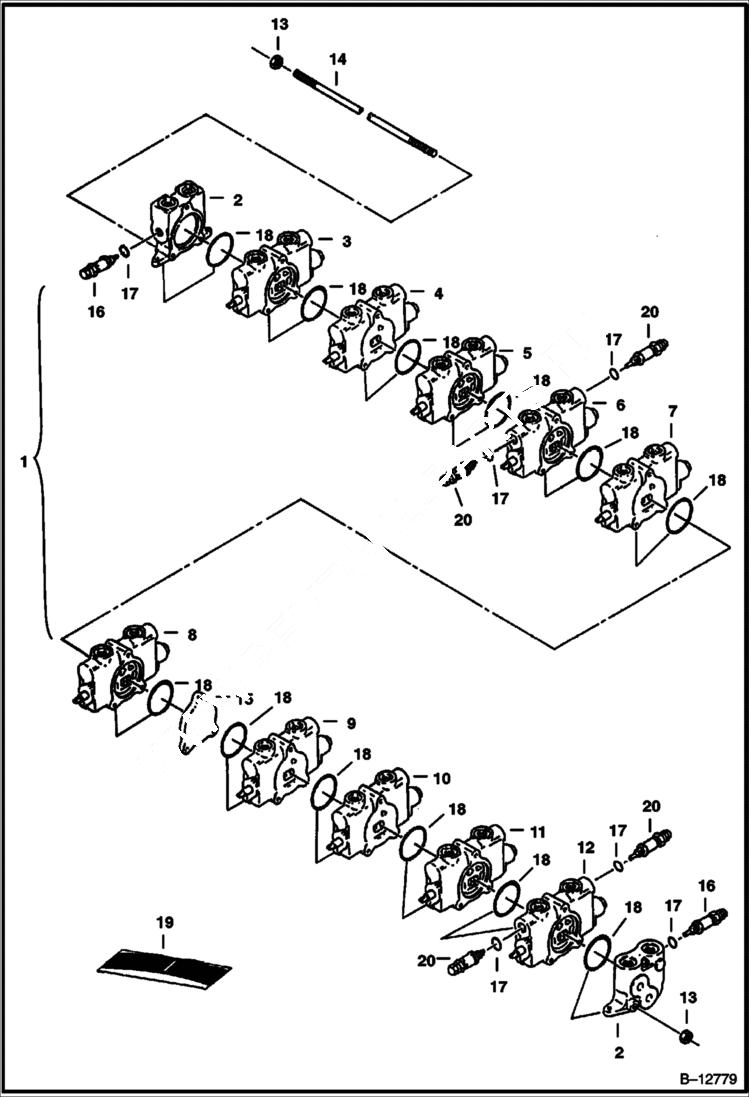

Запчасти Bobcat 220 CONTROL VALVE (10-Spool) (S/N 508211001-11436) HYDRAULIC SYSTEM

1

VALVE NLA - Assy. - Ref. 2-18 - Was 6651891 - A

2

6653098

SECTION Inlet

3

6653097

VALVE See Illustration VALVE SECTION/ B17891 R.H. travel

4

6653096

VALVE See Illustration VALVE SECTION/ B12780 blade

5

6653086

SECTION See Illustration VALVE SECTION/ B12780 auxiliary - not used

6

6653095

VALVE See Illustration VALVE SECTION/ B12780 boom

7

6653094

VALVE See Illustration VALVE SECTION/ B12780 bucket

8

6653093

VALVE See Illustration VALVE SECTION/ B12780 boom swing

9

6653092

VALVE See Illustration VALVE SECTION/ B17888 L.H. travel

10

VALVE See Illustration VALVE SECTION/ B12776 NLA - auxiliary - Was 6653091 - A

11

6653090

VALVE See Illustration VALVE SECTION/ B12776 swivel

12

6653089

VALVE See Illustration VALVE SECTION/ B12776 arm

13

6653100

NUT

14

6653099

ROD

15

6653088

SPACER

16

6657014

RELIEF VALVE Relief set at 2133 PSI - 150 KGF/cm2 - Was 6653087 - A

17

6653447

O-RING Was 6535174 - A

18

6653396

O-RING

19

6535175

SEAL KIT Includes all O-rings and seals needed to repair complete valve

20

6657015

RELIEF VALVE Relief set at 2700 PSI - 190 KGF/cm2
