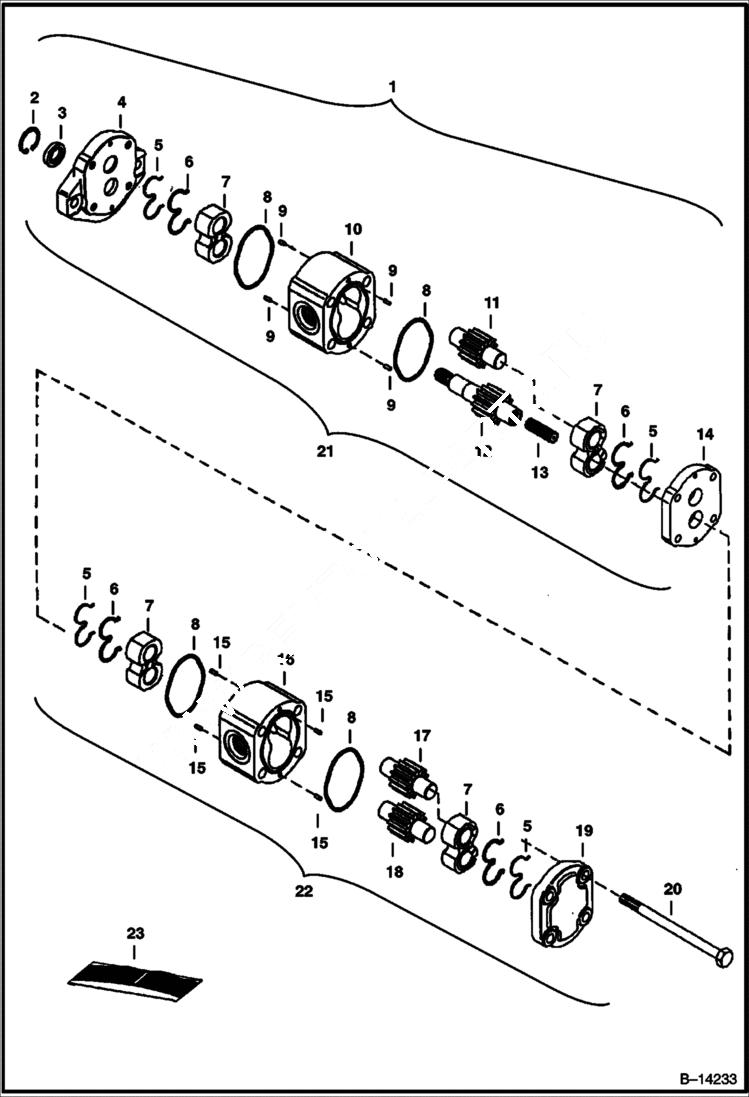

Запчасти Bobcat 220 GEAR PUMP (See BTI E-033) HYDRAULIC SYSTEM

1

PUMP See BTIE-033 NLA - assy - W/Ref. 2-20 - Was 6665601 - A

2

6662925

SNAP RING

3

6662926

SEAL W/Ref. 23

4

6663978

COVER Front

5

BACK-UP RING NSS - Incl. W/Ref. 21, 22 or 23

6

SEAL NSS - Incl. W/Ref. 21, 22 or 23

7

6663979

BEARING Incl. W/Ref. 21 or 22

8

O-RING NSS - Incl. W/Ref. 21, 22 or 23

9

6665621

DOWEL PIN

10

HOUSING NSS - Incl. W/Ref. 21

11

GEAR NSS - Idler - Incl. W/Ref. 21

12

GEAR NSS - Drive - Incl. W/Ref. 21

13

6663984

SHAFT Drive

14

6664583

PLATE

15

6662929

DOWEL PIN

16

HOUSING NSS - Incl. W/Ref. 22

17

GEAR NSS - Idler - Incl. W/Ref. 22

18

GEAR NSS - Drive - Incl. W/Ref. 22

19

6662932

COVER End

20

6664217

BOLT

21

SECTION KIT NLA - Includes Ref. 5(2), 6 (2), 7 (2), 8 (2), 10 (1), 11 (1), & 12 (1) - Was 6665622 - A

22

6665623

SECTION KIT Includes Ref. 5 (2), 6 (2), 7 (2), 8 (2), 16 (1), 17 (1), & 18 (1)

23

6665620

SEAL KIT Includes Ref. 2 (1), 6 (4), 7 (4), & 8 (4)
