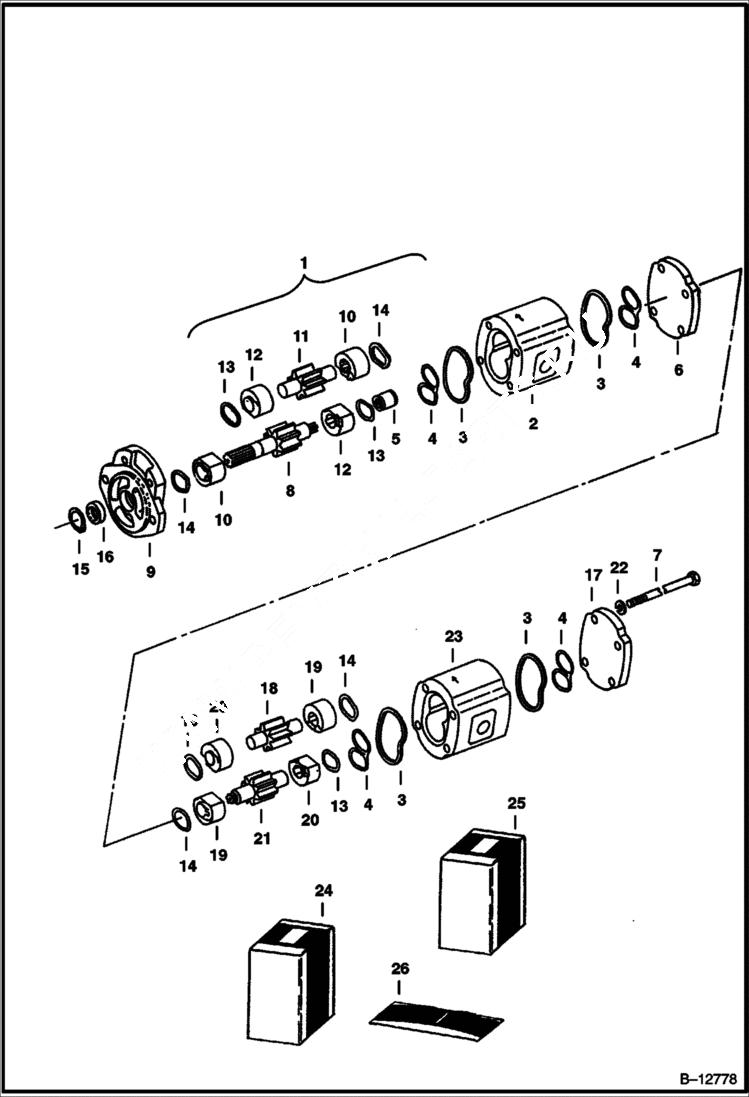

Запчасти Bobcat 220 GEAR PUMP (Model #144 - 1002 - 006) HYDRAULIC SYSTEM

1

PUMP See BTIE-033 NLA - Assy. - Ref. 2-26 - Was 6651890 - A

1

6655560

VALVE Assy. - Auxiliary - Ref. 2-15 - Was 6653086 - A

2

BODY NSS

3

SEAL NSS - See Ref. 26 - Was 6653435 - A

4

SEAL NSS - See Ref. 26 - Was 6653434 - A

5

6653072

COUPLING

6

6653071

PLATE

7

6653070

BOLT

8

DRIVE GEAR NSS

9

6653074

FLANGE

10

BUSHING NSS

11

DRIVE GEAR NSS

12

BUSHING NSS

13

BACK-UP RING NSS - See Ref. 26 - Was 6653433 - A

14

BACK-UP RING NSS - See Ref. 26 - Was 6653432 - A

15

SNAP RING NSS - See Ref. 26 - Was 6653430 - A

16

SEAL NSS - See Ref. 26 - Was 6653431 - A

17

6653073

COVER

18

DRIVE GEAR NSS

19

BUSHING NSS

20

BUSHING NSS

21

DRIVE GEAR NSS

22

6653069

WASHER

23

BODY NSS

24

6653066

GEAR KIT Ref. 18-21

25

6653067

GEAR KIT Ref. 8 & 10-12

26

6653068

SEAL KIT Ref. 3, 4 & 13-16
