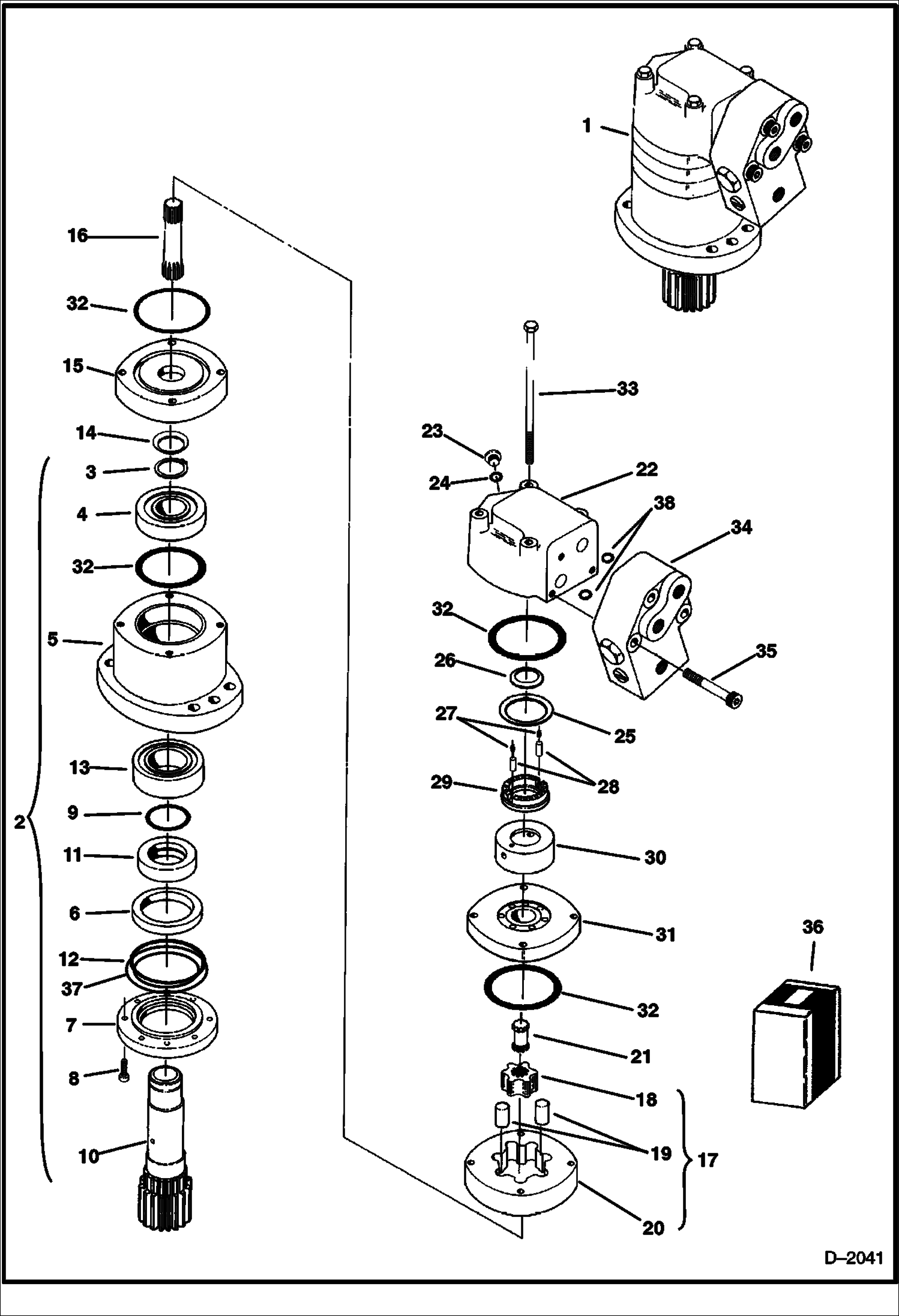

Запчасти Bobcat 220 SWING MOTOR (Model #144-1003-006) HYDRAULIC SYSTEM

1

6669539

SWING MOTOR Assy. - W/Ref. 2-37 - Was 6659533 - A

2

6659995

SHAFT Assy. - W/Ref. 3-13, 32 & 37

3

6656359

SNAP RING

4

BEARING NLA - Order Ref. 2

5

HOUSING NLA - Order Ref. 2

6

SEAL NLA - W/Seal Kit Ref. 36

7

6659996

RETAINER Seal

8

6659997

BOLT

9

O-RING NLA - Order Ref. 2

10

SHAFT NLA - Order Ref. 2 - 16 tooth gear

11

SLEEVE NLA - Order Ref. 2

12

SEAL NLA - W/Seal Kit Ref. 36

13

BEARING NLA - Order Ref. 2

14

SEAL NLA - Order 6690987 - Was 1992098 - A

15

6651956

PLATE

16

6630032

SHAFT

17

6656367

GEROLER Assy. - W/Ref. 18-20

18

STAR NSS - Order Ref. 17

19

ROLLER NSS - Order Ref. 17

20

RING NSS - Order Ref. 17

21

1992084

DR VALVE

22

6632289

HOUSING

23

1992104

PLUG W/Ref. 24

24

79K4

O RING 10 W/Seal Kit Ref. 36

25

SEAL NLA - W/Seal Kit Ref. 36

26

SEAL NLA - W/Seal Kit Ref. 36

27

1992088

SPRING

28

1992102

PIN

29

6630027

BALANCE RING

30

6632288

VALVE

31

6656368

PLATE

32

SEAL NLA - W/Seal Kit Ref. 36

33

6632349

BOLT

34

6656374

VALVE See Illustration BRAKE VALVE/ B25160 Assy.

35

6656376

BOLT

36

6659998

SEAL KIT W/Ref. 6, 12, 24-26, 32 & 37

37

6673869

WASHER backup - W/seal kit Ref. 36

37

WASHER NLA - Back up - W/Seal Kit Ref. 36

38

25K30022

O RING 10 not in seal kit
