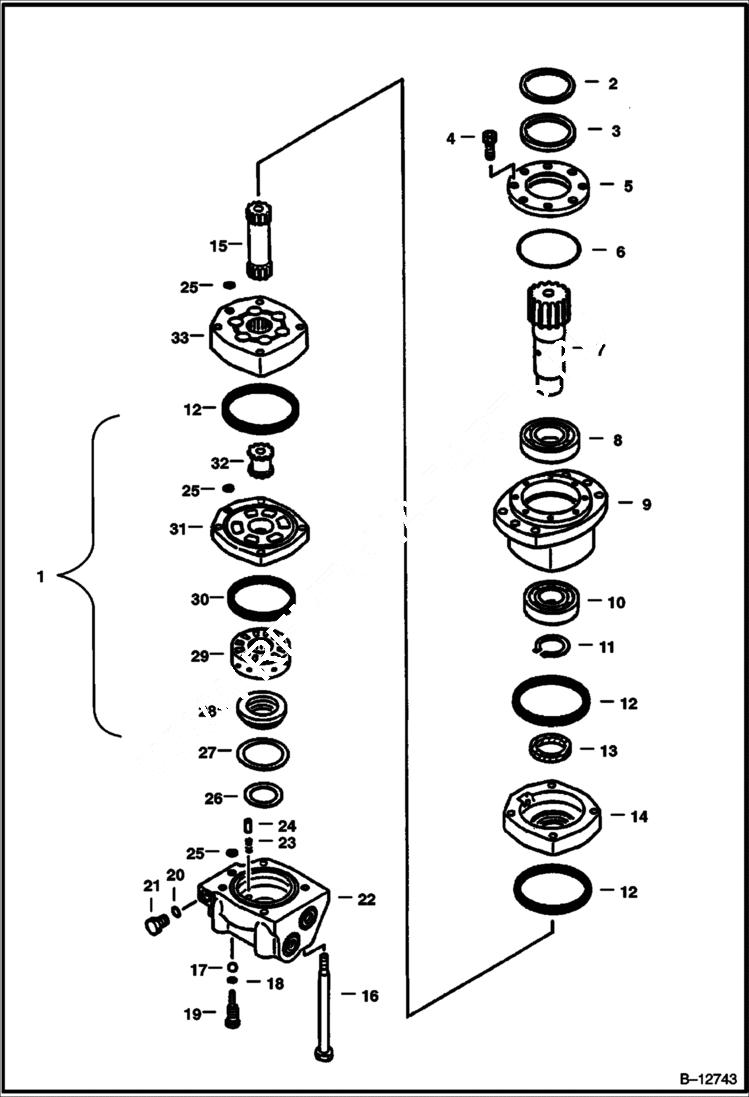

Запчасти Bobcat 220 SWING MOTOR HYDRAULIC SYSTEM

1

SWING MOTOR See BTIE-007 NLA - Order 6669539 (1), 6657374 (3), 6657373 (3), 79K000006B (3) & 76K000113B (6) - Was 6651901 - A

2

RING NLA - Backup - Order 6690987 - Was 6653287 - A

3

RING NLA - Order 6690987 - Was 6653286 - A

4

6653285

BOLT

5

PLATE NLA - Retainer - Was 6653284 - A

6

O-RING NLA - Order 6690987 - Was 6653288 - A

7

GEAR NLA - 16 tooth gear - Was 6653281 - A

8

6653282

BEARING

9

HOUSING NLA - Was 6653280 - A

10

6653283

BEARING

11

6653295

RING

12

O-RING NLA - Order 6690987 - Was 6653293 - A

13

SEAL NLA - Order 6690987 - Was 1992098 - A

14

1992080

WEAR PLATE Wear

15

6653301

DRIVE

16

BOLT NLA - Was 6653294 - A

17

6634699

BALL

18

O RING NLA - Order 6691366 - Was 1992109 - A

19

PLUG NLA - Was 6653290 - A

20

O-RING NLA - Order 6691366 - Was 6653293 - A

21

PLUG NLA - Was 6653292 - A

22

HOUSING NLA - Was 6653291 - A

23

1992088

SPRING

24

1992102

PIN

25

O-RING NLA - Order 6691366 - Was 6653289 - A

26

SEAL NLA - Order 6691366 - Was 6653299 - A

27

SEAL NLA - Order 6691366 - Was 6653300 - A

28

6630027

BALANCE RING

29

VALVE NLA - Was 6653298 - A

30

O-RING NLA - Order 6691366 - Was 6653297 - A

31

1992085

PLATE VLV

32

1992084

DR VALVE

33

GEROLER NLA - Was 6653302 - A
