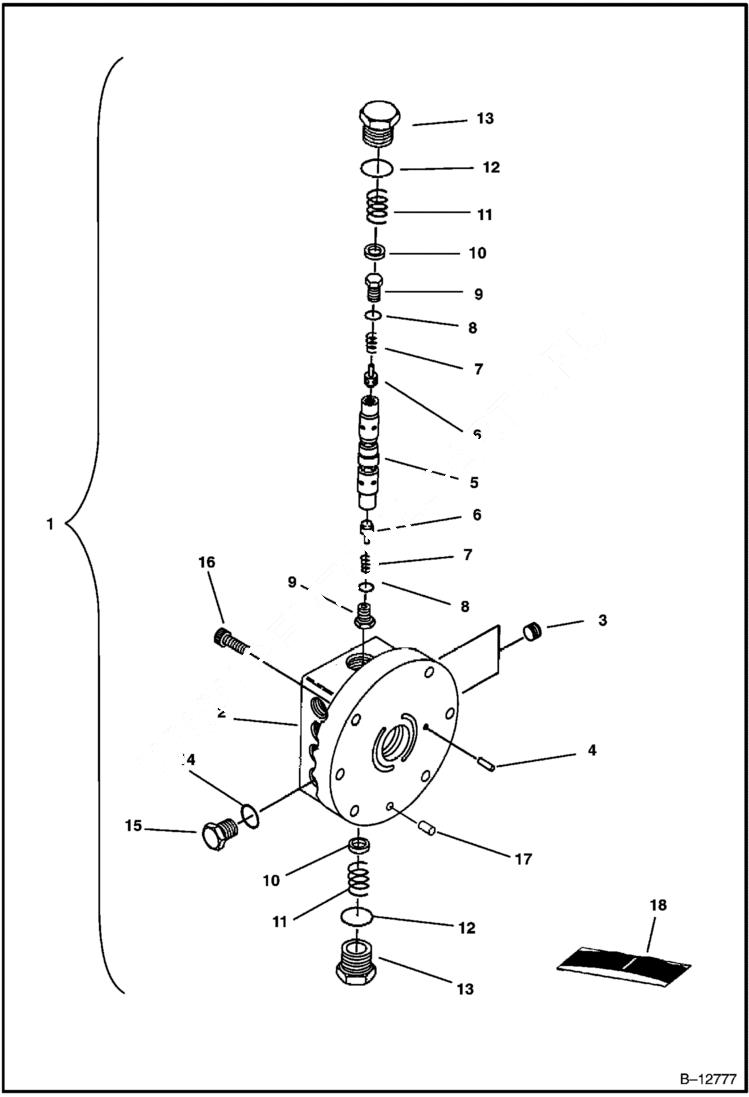

Запчасти Bobcat 220 TRAVEL MOTOR HYDRAULIC SYSTEM

1

VALVE ASSY NSS - Ref. 2-15

2

BODY NSS

3

6653021

PLUG

4

6653018

PIN

5

SPOOL NLA - Was 6653009 - A

6

6653010

POPPET Was 6653009 - D

7

6653011

SPRING

8

6670234

O-RING Was 6653013 - A

9

6653012

PLUG

10

6653014

SEAT

11

6653015

SPRING

12

6670228

O-RING Was 6653017 - A

13

6653016

CAP

14

6670224

O-RING Was 6653023 - A

15

6653022

PLUG

16

6653020

BOLT

17

6653019

PIN

18

6670150

SEAL KIT See Illustration TRAVEL MOTOR/ D1922 W/Ref. 8, 12, 14 & Ref. 2, 16, 22 & 42 on Ill. D1922 - Was 6658591 - A

18

6670151

SEAL KIT See Illustration TRAVEL MOTOR/ D1922 Does not include Ref. 2 on Ill. D1922 - includes Refs. 8, 12, 14 & Ref. 16, 22 & 42 on Ill D1922
