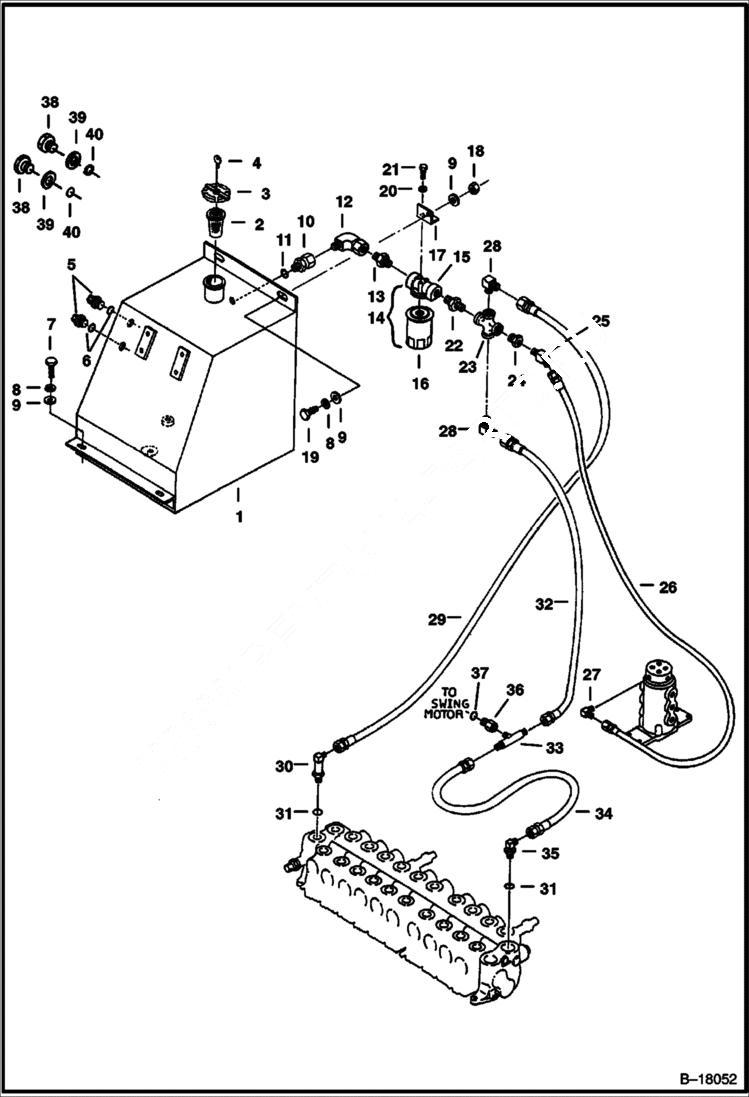

Запчасти Bobcat 220 HYDRAULIC CIRCUITRY, TANK & FILTER (Valve to Tank) (S/N 508211309 & Above) HYDRAULIC SYSTEM

1

6533941

TANK

2

7120881

SCREEN, FILLER W/brass wear collar - Was 6569219 - A

3

CAP NLA - locking - W/Ref. 4 - Code GC020 - Order 6662030 - Was 6654373 - A

3

6662030

CAP Locking - order key separately - Code PK510

4

6654374

KEY Code GC020

4

6587458

KEY Code PK510

5

BULB NLA - Sight gauge - W/Ref.6 - Order Ref. 39 - Was 6655035 - A

6

O-RING NLA

7

1CM1020

BOLT

8

6EM100

WASHER

9

15EM100

WASHER

10

2505198

ADAPTER W/Ref. 11

11

79K12

O RING 10

12

11K8

ELBOW

13

6534719

ADAPTER

14

FILTER NLA - assy - W/Ref. 15 & 16 - Was 6655072 - A

15

6655073

HEAD

16

6653336

ELEMENT

17

6535402

BRACKET

18

39DM10

NUT

19

1CM1030

BOLT

20

15EM80

WASHER

21

1CM815

BOLT

22

6535136

ADAPTER

23

6535132

CROSS

24

6535133

ADAPTER

25

6535134

ELBOW

26

6535135

HOSE

27

6535066

ELBOW See Ill. B14154 for fitting if swivel joint has been changed to P/N 6664409

28

6535131

ELBOW

29

6535129

HOSE

30

6535128

ELBOW W/Ref. 31

31

79K8

O RING 10

32

6535130

HOSE

33

6535100

TEE

34

6535139

HOSE

35

ELBOW NLA - W/Ref. 31 - Was 6535127 - A

36

6534765

ADAPTER W/Ref. 37

37

79K6

O RING 10

38

6539386

SIGHT GAUGE Sight gauge - W/Ref. 39 & 40

39

6539342

WASHER

40

79K10

O RING 10
