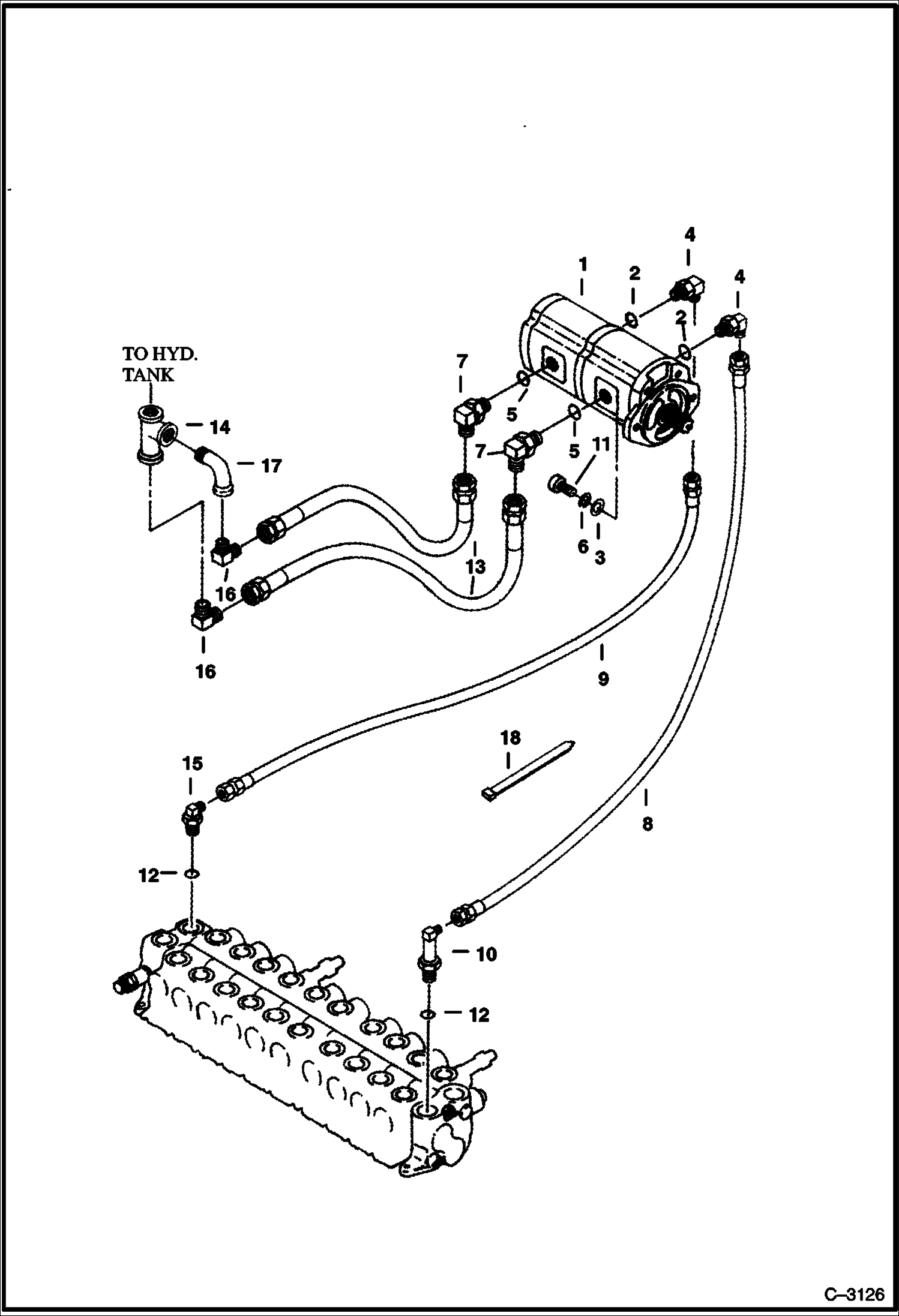

Запчасти Bobcat 220 HYDRAULIC CIRCUITRY (Valve to Pump) HYDRAULIC SYSTEM

1

PUMP See Illustration GEAR PUMP/ B14233 See Illustration GEAR PUMP/ B12778 See BTIE-033 NLA - Was 6651890 - A

2

79K10

O RING 10 Was 6535113 - A

3

15EM100

WASHER

4

ELBOW NLA - W/Ref. 2 - Was 6535114 - A

5

79K12

O RING 10 Was 6535115 - A

6

6EM100

WASHER

7

6535116

ELBOW W/Ref. 5

8

6535117

HOSE

9

6535118

HOSE

10

6535119

ELBOW W/Ref. 12

11

7GM1025

BOLT

12

79K6

O RING 10 Was 6535047 - A

13

6535120

HOSE

14

6535121

TEE

15

6535037

ELBOW W/Ref. 12

16

6535123

ELBOW

17

6535124

ELBOW

18

6610510

TIE
