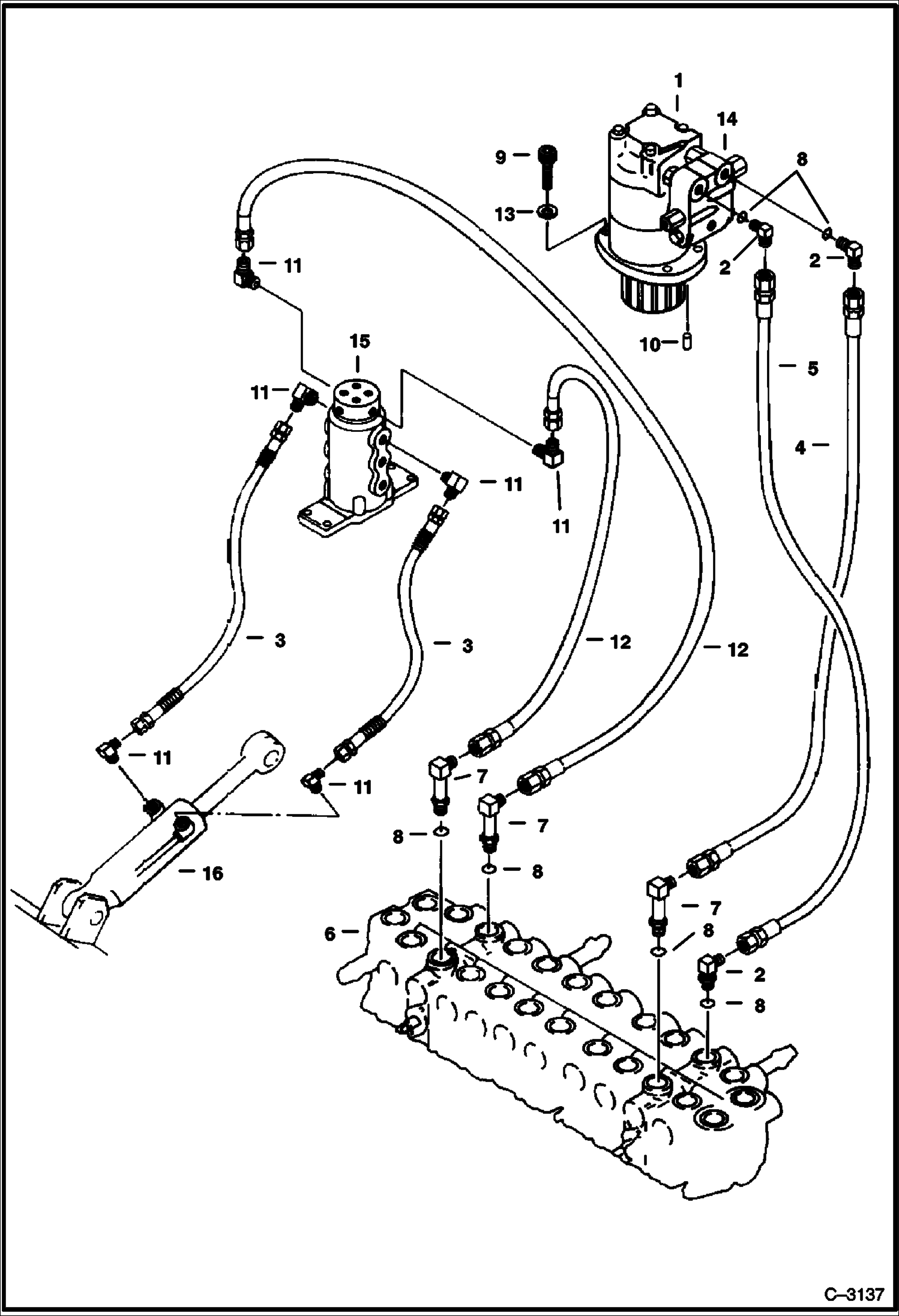

Запчасти Bobcat 220 HYDRAULIC CIRCUITRY (Valve to Blade Cylinder & Swing Motor) HYDRAULIC SYSTEM

1

MOTOR See Illustration SWING MOTOR/ D2041A See Illustration SWING MOTOR/ B12743 See BTIE-007 NLA - swing - Was 6651901 - A

2

6535067

ELBOW W/Ref. 8

3

6535065

HOSE Was 6535092 - D

4

6535093

HOSE

5

6535094

HOSE

6

VALVE See Illustration CONTROL VALVE/ B13096 See Illustration CONTROL VALVE/ B12779

7

6535095

ELBOW W/Ref. 8

8

79K6

O RING 10 Was 6535047 - A

9

7GM1030

BOLT Was 6535096 - A

10

6535097

PIN

11

6535066

ELBOW See Illustration SWIVEL JOINT FITTINGS/ B14154 90 degrees - See Ill. B14154 for fittings if swivel joint has been changed to P/N 6664409

12

6535098

HOSE

13

15EM100

WASHER

14

6653308

VALVE See Illustration BRAKE VALVE/ C3138 brake

15

SWIVEL JOINT See Illustration SWIVEL JOINT/ B12744 See Illustration SWIVEL JOINT/ B14077
