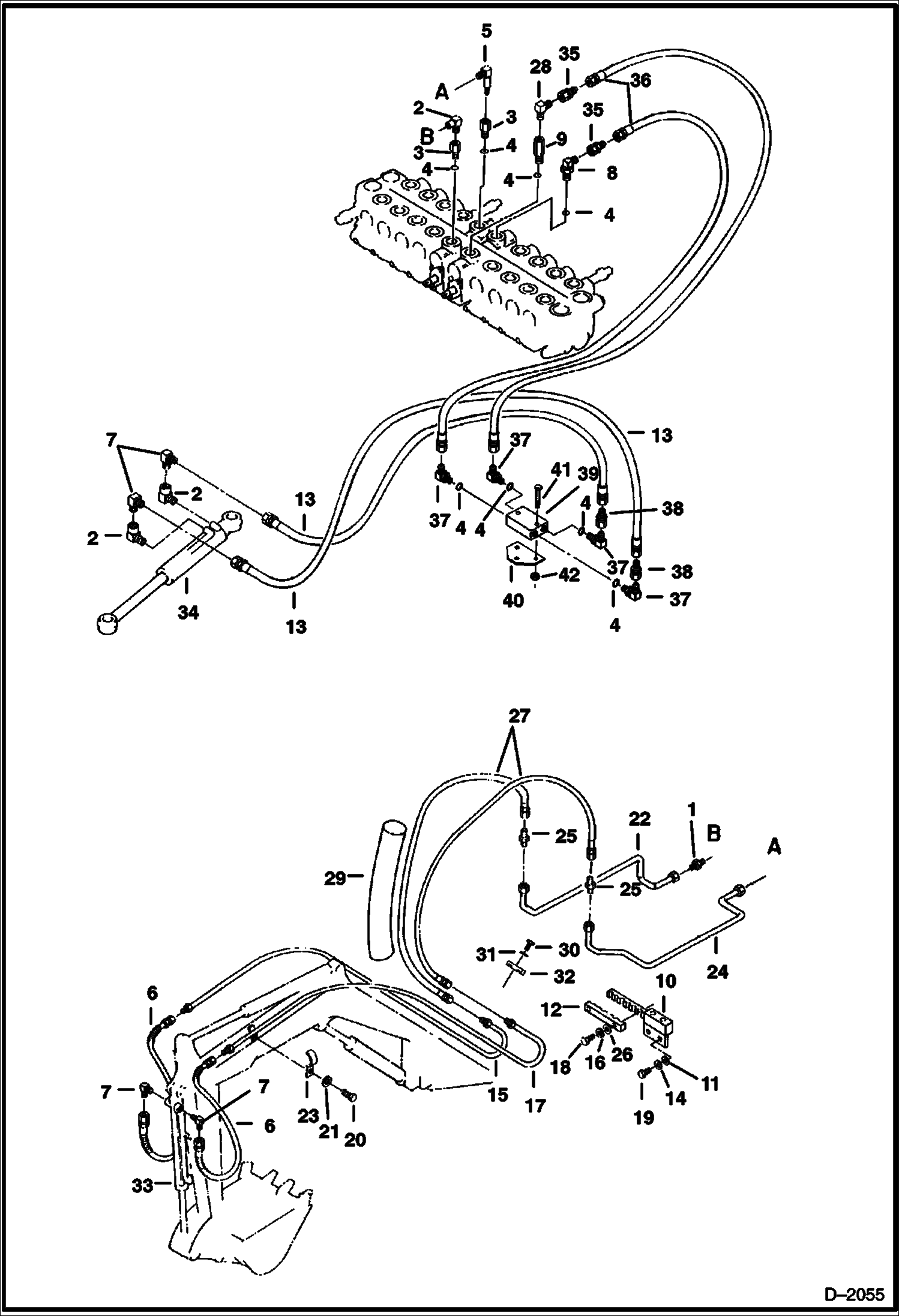

Запчасти Bobcat 220 HYDRAULIC CIRCUITRY (Valve to Bucket & Swing Cylinders) (With Swing Cylinder Lock Valve) HYDRAULIC SYSTEM

1

6535061

ADAPTER

2

6535062

ELBOW

3

6535063

ADAPTER W/Ref. 4

4

79K6

O RING 10

5

6535064

ELBOW

6

6535065

HOSE

7

6535066

ELBOW 90 degrees

8

6535067

ELBOW W/Ref. 4

9

6534742

RESTRICTOR .078'' (2 mm)

10

6535068

BRACKET

11

15EM100

WASHER

12

6535069

BRACKET

13

6535070

HOSE

14

6EM100

WASHER

15

6535071

TUBE

16

6EM80

WASHER, SPRING

17

6534737

TUBE

18

1CM825

BOLT

19

1CM1020

BOLT

20

1CM816

BOLT

21

6EM80

WASHER, SPRING

22

TUBE NLA - Was 6535075 - A

23

6535076

CLAMP

24

6535077

TUBE

25

6535078

ADAPTER

26

15EM80

WASHER

27

6535079

HOSE

28

6534743

ELBOW

29

6650108

HOSE COVER 1.25'' (31,75 mm) I.D. - Bulk - Sold Per Foot

30

1CM1025

BOLT

31

6EM100

WASHER

32

6535082

CLAMP

33

CYLINDER See Illustration BUCKET CYLINDER/ B12737 See BTIE-003 NLA - bucket- Was 6651895 - A

35

6657225

ADAPTER

36

6530892

HOSE

37

17K5

ELBOW W/Ref. 4

38

6657224

ADAPTER

39

6630527

VALVE Lock - Swing Cylinder

39

6660645

SEAL KIT

40

6537373

BRACKET

41

1CM850

BOLT

42

39DM8

NUT
