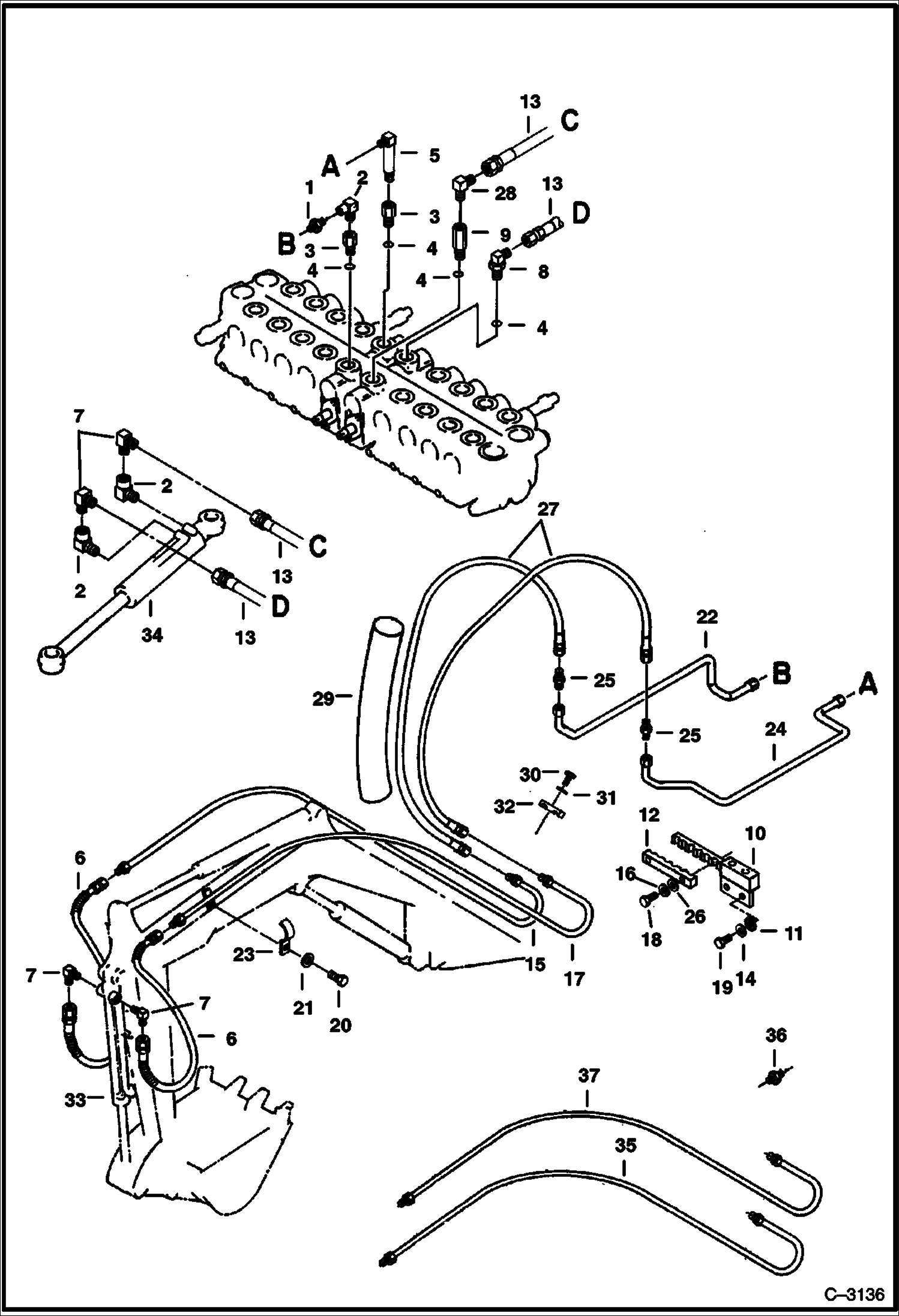

Запчасти Bobcat 220 HYDRAULIC CIRCUITRY (Valve to Bucket & Swing Cylinders) (W/O Swing Cylinder Lock Valve) HYDRAULIC SYSTEM

1

6535061

ADAPTER

2

6535062

ELBOW

3

6535063

ADAPTER W/Ref. 4

4

79K6

O RING 10 Was 6535047 - A

5

6535064

ELBOW

6

6535065

HOSE

7

6535066

ELBOW 90 degrees

8

6535067

ELBOW W/Ref. 4

9

6534742

RESTRICTOR .078'' (2 mm)

10

6535038

BRACKET Was 6535068 - D

11

15EM100

WASHER

12

6535069

BRACKET

13

6535070

HOSE

14

6EM100

WASHER

15

TUBE NLA - Order Ref. 37 (1) & Ref. 38 (2) - Was 6535071 - A

16

6EM80

WASHER, SPRING

17

TUBE NLA - Order (1) Ref. 35 & (2) Ref. 36 - Was 6534737 - A

18

1CM825

BOLT Was 1CM00830B - A

19

1CM1020

BOLT

20

1CM816

BOLT Was 6535073 - A

21

6EM80

WASHER, SPRING Was 6535074 - A

22

TUBE NLA - Was 6535075 - A

23

6535076

CLAMP

24

6535077

TUBE

25

6535078

ADAPTER

26

15EM80

WASHER

27

6535079

HOSE

28

6534743

ELBOW

29

6650108

HOSE COVER 1.25'' (31,75 mm) I.D. - Bulk - Sold Per Foot

30

1CM1025

BOLT Was 6535080 - A

31

6EM100

WASHER Was 6535081 - A

32

6535082

CLAMP

33

CYLINDER See Illustration BUCKET CYLINDER/ B12737 See BTIE-003 NLA - Bucket - Was 6651895 - A

34

CYLINDER See Illustration BLADE CYLINDER/ B12740 See BTIE-003 NLA - swing - Was 6651896 - A

35

6534844

TUBE

36

6657223

ADAPTER

37

6534843

TUBE
