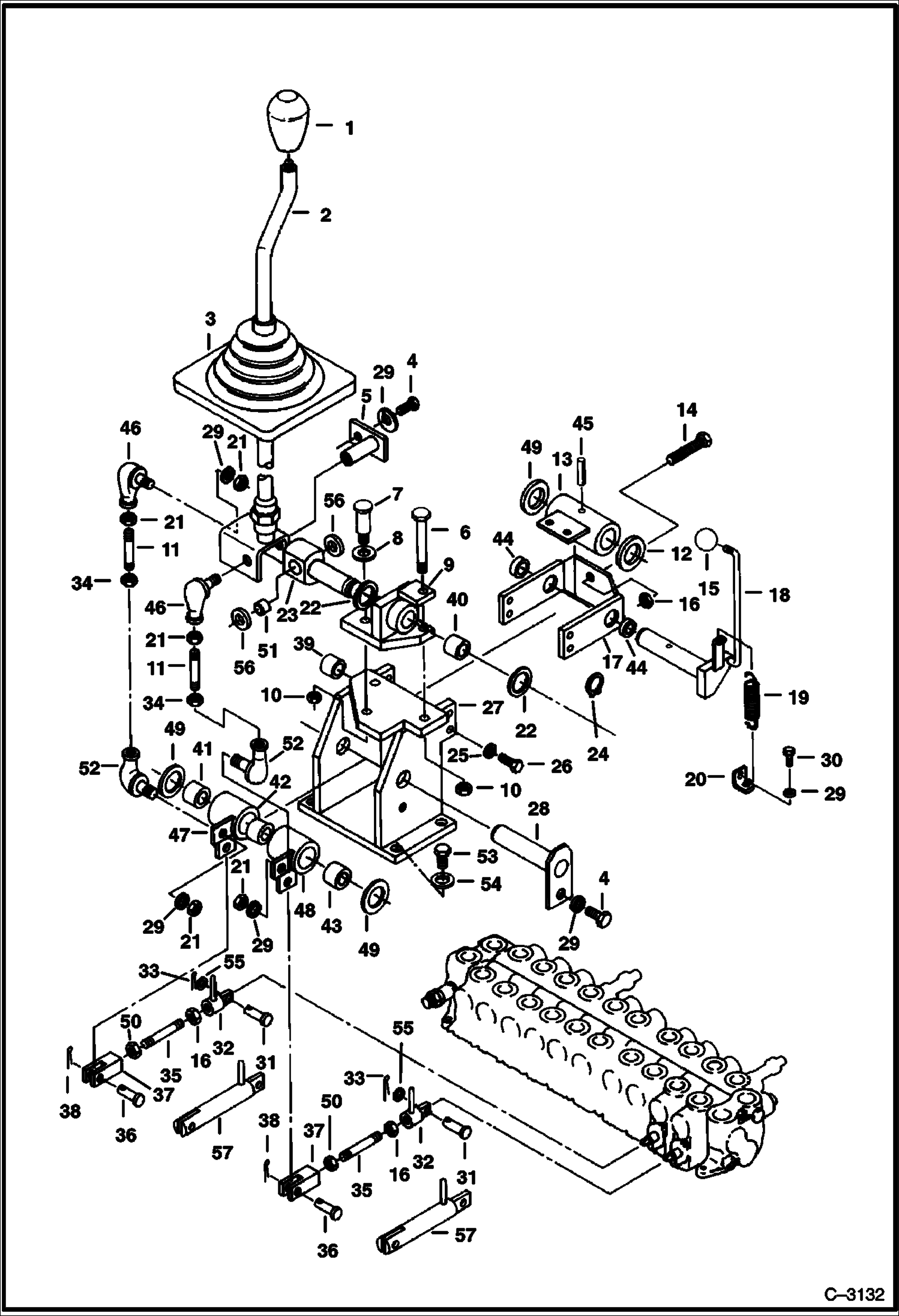

Запчасти Bobcat 220 SWIVEL & ARM CONTROL (S/N 508211001-11308) CONTROLS

1

CAB See BTIE-011 NLA - assy - Same as 12000 Series - Ref. 2-10 - Also includes all items on Ill. D1916, D1976 & D1961

1

6535015

KNOB Was 6535017 - A

2

6533705

LEVER

3

BOOT NLA - Was 6535012 - A

4

1CM815

BOLT

5

PIN NLA - Was 6533776 - A

6

1CM1290

SCREW

7

6533782

PIN Threaded shoulder

8

6535018

WASHER

9

6533747

BRACKET W/Ref. 40

10

39DM12

NUT

11

6533791

ROD Was 6535019 - A

12

6535020

SPACER

13

6533994

LEVER

14

4CM850

BOLT Full thread - Was 6535021 - A

15

6533992

KNOB

16

1DM8

NUT Was 6535022 - A

17

6533993

BRACKET W/Ref. 44

18

6533991

LEVER

19

6533987

SPRING

20

6534716

BRACKET

21

1DM10

NUT Was 1DM00008B - B

22

6535013

WASHER

23

6533781

ROD W/Ref. 51

24

5JM20

CIRCLIP, EXTERNAL

25

6EM80

WASHER, SPRING Was 6535023 - A

26

1CM820

BOLT Was 6535024 - A

27

6533741

BRACKET W/Ref. 39

28

6533773

SHAFT

29

6EM80

WASHER, SPRING

30

1CM810

BOLT

31

6534700

PIN

32

YOKE NLA - Order Ref. 57 - Was 6533986 - A

33

13JM10016

COTTERPIN

34

6533906

NUT 10 mm thread - L.H. - Was 6535025 - A

35

ROD NLA - Order Ref. 57 - Was 6533789 - A

36

6533788

PIN

37

YOKE NLA - 8 mm - Order Ref. 57 - Was 6533786 - A

38

13JM20016

SPLIT PIN

39

6651906

BUSHING

40

6651908

BUSHING

41

6651905

BUSHING

42

6651907

BUSHING

43

6651904

BUSHING

44

6652553

BUSHING

45

1JM5024

PIN

46

6535010

BALL JOINT 10 mm thread - R.H. - Was 6535026 - B

47

6533754

LEVER W/Ref. 41 & 42

48

6533758

LEVER W/Ref. 43

49

6534701

SHIM

50

6533905

NUT 8 mm thread - L.H. - Was 6535027 - A

51

6535014

BUSHING

52

6534745

BALL JOINT 10 mm thread - L.H. - Was 6534746 - A

53

1CM1020

BOLT

54

15EM100

WASHER

55

6535011

WASHER

56

6533794

SPACER

57

LINK NLA - Was 6534893 - A
