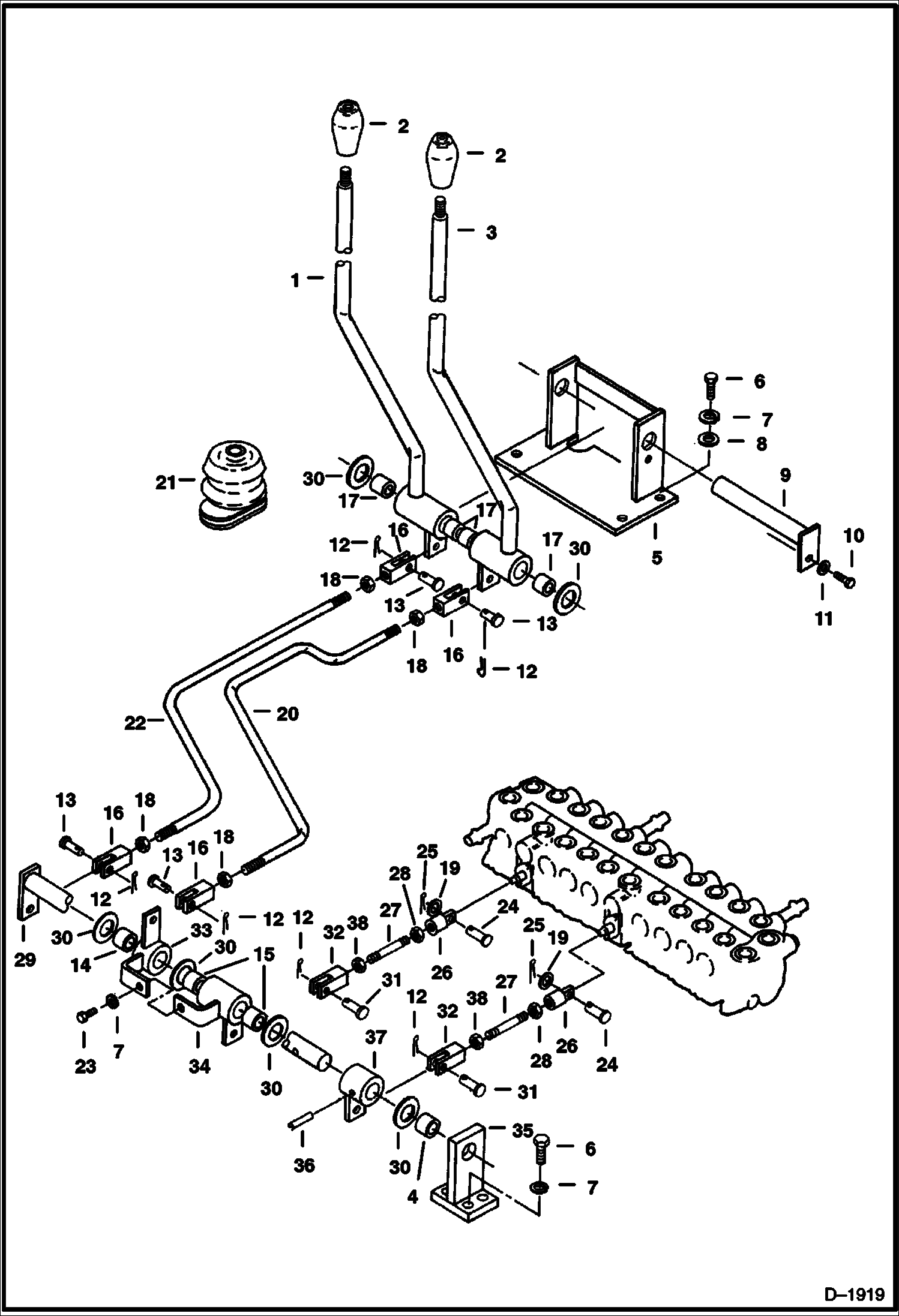

Запчасти Bobcat 220 BOOM SWING & BLADE CONTROLS (S/N 508211001-11308) CONTROLS

1

6533725

LEVER Blade - W/Ref. 17

2

6535015

KNOB

3

6533729

LEVER Boom swing - W/Ref. 17

4

6651905

BUSHING

5

6533750

BRACKET

6

1CM1020

BOLT

7

6EM100

WASHER

8

15EM100

WASHER

9

SHAFT NLA - Was 6533779 - A

10

6EM80

WASHER, SPRING

11

1CM815

BOLT

12

13JM20016

SPLIT PIN

13

6533787

PIN

14

6651907

BUSHING

15

6652556

BUSHING

16

6533785

YOKE 10 mm thread - Was 6573785 - A

17

6651905

BUSHING

18

1DM10

NUT

19

6535011

WASHER

20

6533795

ROD

21

6535016

BOOT

22

6533796

ROD

23

1CM1015

BOLT

24

6534700

PIN

25

13JM10016

COTTERPIN

26

YOKE NLA - 8 mm thread - Was 6533799 - A

27

6533789

ROD 8 mm thread - R.H.

28

1DM8

NUT

29

6533984

ROD

30

6534701

SHIM

31

PIN NLA - Was 6533788 - A

32

6533786

YOKE 8 mm thread - L.H.

33

6533771

LEVER W/Ref. 14

34

6533767

LEVER W/Ref. 15

35

6533738

BRACKET W/Ref. 4

36

1JM6032

PINS

37

6533761

LEVER

38

6533905

NUT 8 mm thread - L.H.
