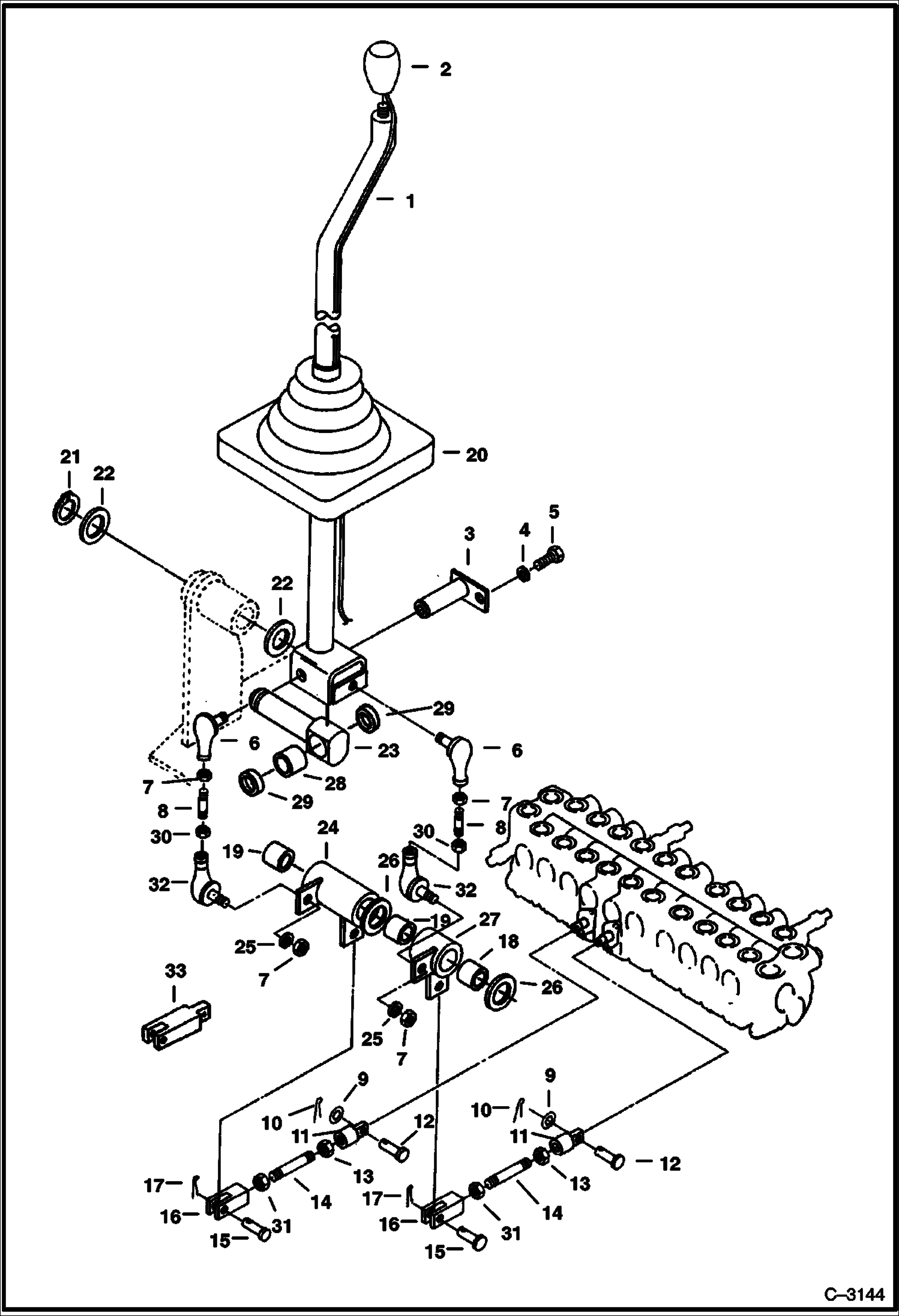

Запчасти Bobcat 220 BOOM & BUCKET CONTROL (S/N 508211001-11308) CONTROLS

1

6533713

LEVER

2

KNOB See Illustration ELECTRICAL SYSTEM/ C3134 NLA - W/horn switch & wire - Was 6535009 - A

3

PIN NLA - Was 6533776 - A

4

6EM80

WASHER, SPRING

5

1CM815

BOLT

6

6535010

BALL JOINT 10 mm thread - R.H.

7

1DM10

NUT

8

6533791

ROD 10 mm thread

9

6535011

WASHER

10

13JM10016

COTTERPIN

11

YOKE NLA - Order Ref. 33 - Was 6533799 - A

12

6534700

PIN

13

1DM8

NUT

14

6533789

ROD 8 mm thread - Order Ref. 33

15

PIN NLA - Was 6533788 - A

16

6533786

YOKE 8 mm thread - L.H. - Order Ref. 33

17

13JM20016

SPLIT PIN

18

6651904

BUSHING

19

6652556

BUSHING

20

BOOT NLA - Was 6535012 - A

21

5JM20

CIRCLIP, EXTERNAL

22

6535013

WASHER

23

6533985

ROD W/Ref. 28

24

6533998

LEVER W/Ref. 19

25

6EM100

WASHER

26

6534701

SHIM

27

6533766

LEVER W/Ref. 18

28

6535014

BUSHING

29

6533794

SPACER

30

6533906

NUT 10 mm thread - L.H.

31

6533905

NUT 8 mm thread - L.H.

32

6534745

BALL JOINT 10 mm thread - L.H.

33

6534832

YOKE Use in place of Ref. 11, 14 & 16
