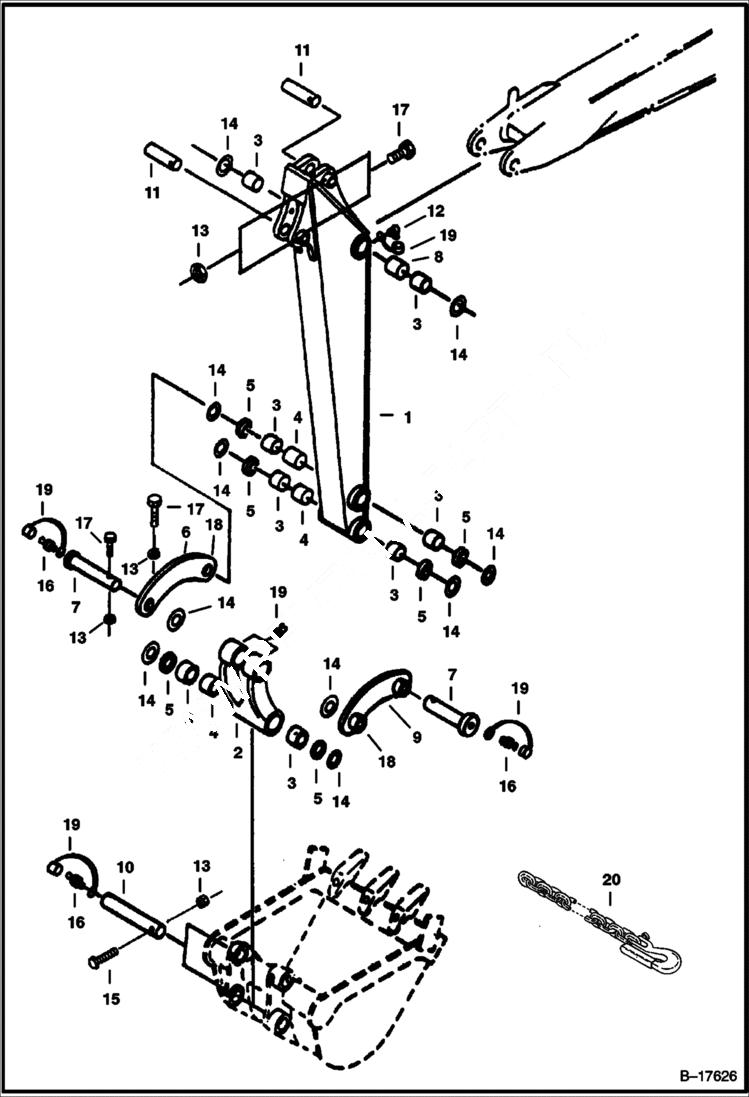

Запчасти Bobcat 220 ARM & BUCKET LINK WORK EQUIPMENT

1

ARM See BTIE-006 NLA - Order Arm 6535296 & Plate 6533849

2

LINK See BTIE-015 NLA - W/Ref. 3-5 - Was 6533452 - A

3

6539270

BUSHING Was 6587765 - B

4

6533458

SPACER

5

6653534

SEAL Dust

6

LINK NLA - Order Ref. 18 (2) - Was 6533450 - A

7

6533498

PIN

8

6533447

SPACER

9

LINK NLA - Order Ref. 18 (2) - Was 6533451 - A

10

6533499

PIN

11

6533496

PIN

12

12H15

FITTING, GREASE 5

13

39DM8

NUT

14

6533856

SHIM

15

1CM870

BOLT

16

10H25

FITTING, GREASE 5

17

1CM860

BOLT

18

6587741

LINK

19

6652943

COVER grease fitting

20

6665374

CHAIN Lifting - available thru CHICAGO PARTS - not factory installed
