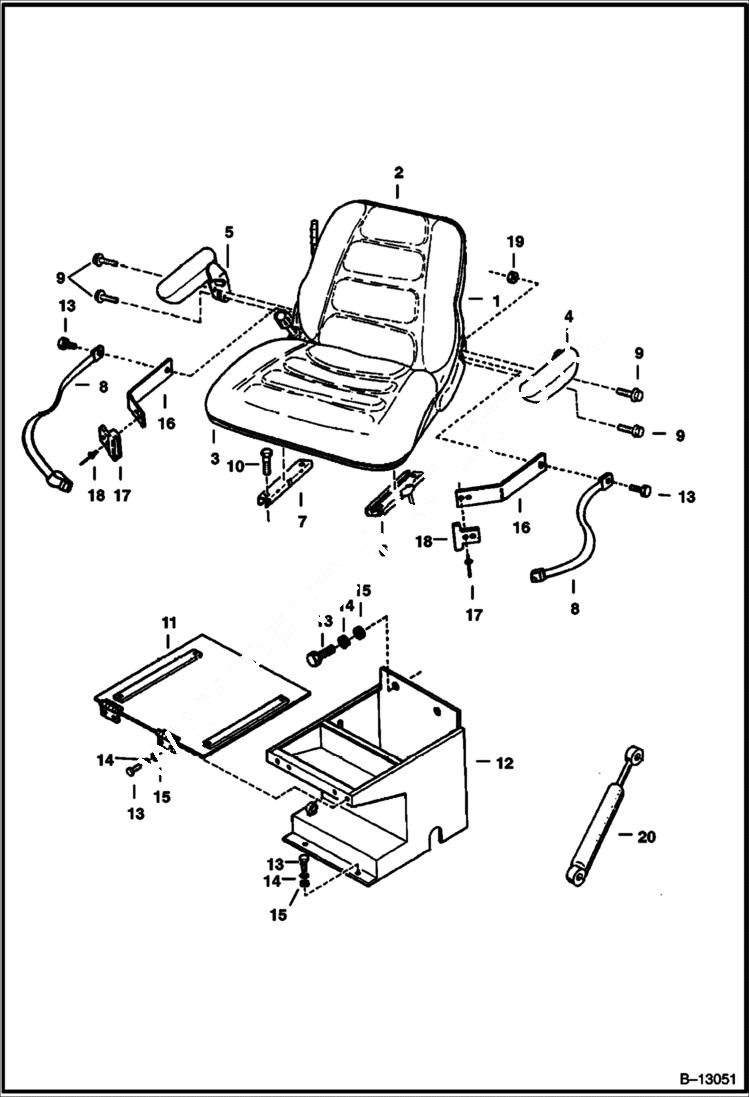

Запчасти Bobcat 220 SEAT MAIN FRAME

1

6632388

SEAT W/Ref. 2, 3 & 20

2

3737081

BACKREST Backrest

3

3737010

CUSHION, SEAT Seat

4

6599516

ARM REST L.H. - W/Ref. 9

4

CUSHION NLA - Was 6599518 - A

5

6599515

ARM REST R.H. - W/Ref. 9

5

CUSHION NLA - Was 6599519 - A

6

3737000

TRACK W/Adjusting Handle

7

3737001

ADJUSTER W/O Adjusting Handle

8

6564774

SEAT BELT

9

BOLT NSS

10

1CM812

BOLT

11

6533801

LID

12

6533804

FRAME Also Order 6533647 (2)

13

1CM1020

BOLT

14

6EM100

WASHER

15

15EM100

WASHER

16

6534812

GUIDE ASSY. Seat belt - W/Ref. 17 & 18

17

GUIDE NLA - Order 6703703 - Was 6565355

18

6630207

RIVET 5 Was 1662965 - A

19

1DM10

NUT

20

6660348

GAS SPRING Gas
