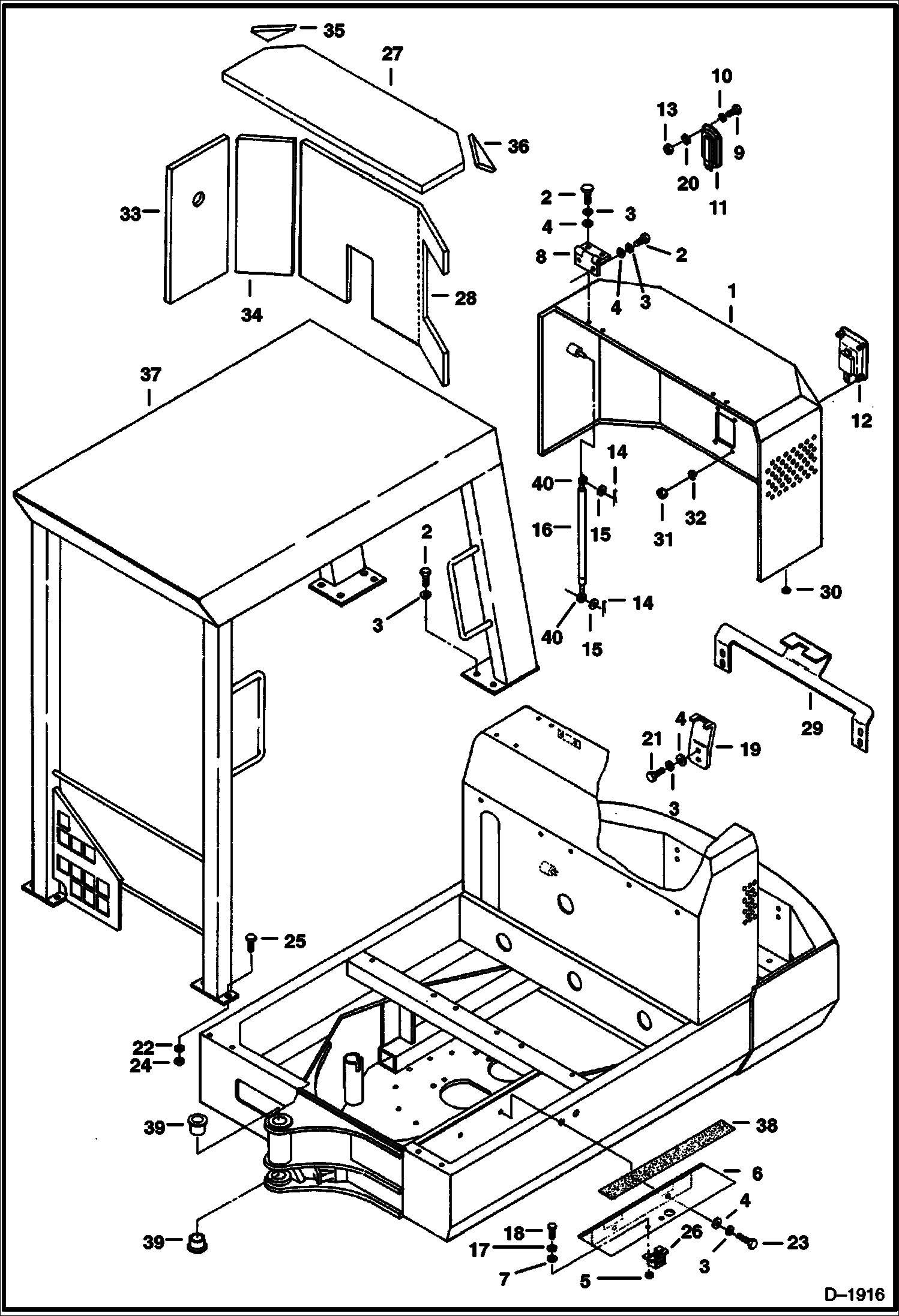

Запчасти Bobcat 220 MACHINE CAB MAIN FRAME

1

HOOD NLA - Order 6535433, Ref. 12 & 27-36 - Was 6533841 - A

1

6535433

HOOD

2

1CM1025

BOLT

3

6EM100

WASHER

4

15EM100

WASHER

5

1DM5

NUT

6

6534822

LID Was 6533977 - A

7

15EM50

WASHER

8

6533959

HINGE

9

6EM50

LOCK-WSHR

9

1CM815

BOLT

10

15EM80

WASHER

11

6535002

LATCH

12

6660132

LATCH Was 6648421 - A

12

6650683

KEY

13

1DM8

NUT

14

6535003

COTTER PIN

15

6535004

WASHER

16

6654364

CYLINDER W/Ref. 40 - Was 6535005 - A

17

6EM50

LOCK-WSHR

18

1CM508

SCREW

19

6533976

BRACKET

20

6EM80

WASHER, SPRING

21

1CM1020

BOLT

22

6EM120

WASHER

23

1CM1015

BOLT

24

1DM12

LOCK NUT

25

1CM1235

BOLT

26

6535006

LATCH

27

6535007

INSULATION Fastens inside of hood

27

6534756

INSULATION Fastens inside of hood

28

6535008

INSULATION Fastens inside of hood

28

6534757

INSULATION Fastens inside of hood

29

6533963

BRACKET

30

6653459

STOP

31

4E4

WASHER

32

61D4

NUT 5

33

6534758

INSULATION Fastens inside of hood

34

NLA - Was 6534759

35

6534760

INSULATION Fastens inside of hood

36

6534761

INSULATION Fastens inside of hood

37

CANOPY NLA - Was 6661594 - A

38

6593245

TREAD

39

6533536

BUSHING

40

6664042

CLEVIS
