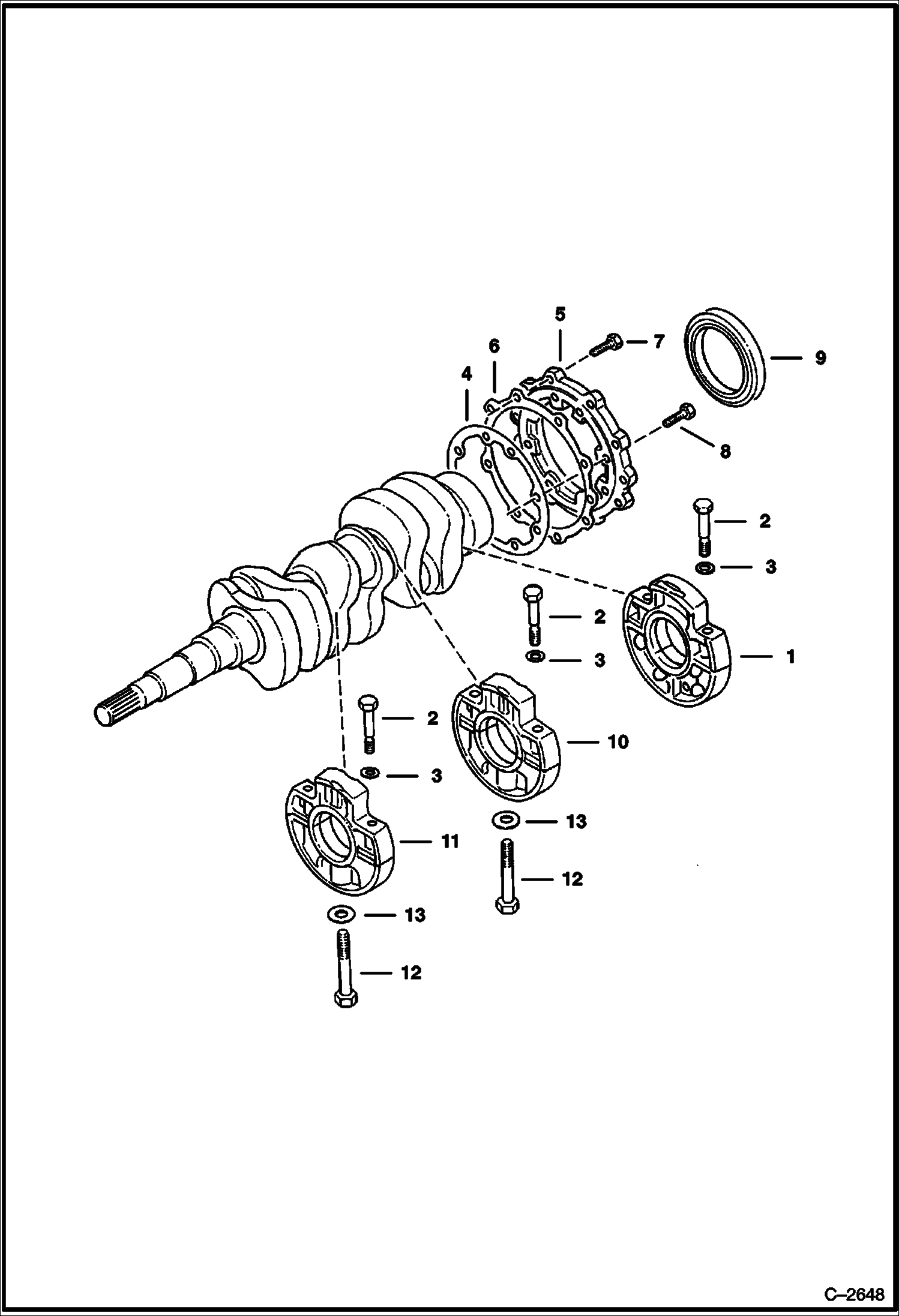

Запчасти Bobcat 220 MAIN BEARING CASE POWER UNIT

1

6652598

CASE Was 6598968 - A

2

BOLT NLA - Use W/Ref. 3 - Order 6652001 - Was 3974097B - A

2

6652601

BOLT Washer Head - Was 6649307 - A

3

3974098

WASHER

4

6666793

GASKET See Illustration LOWER GASKET KIT/ C3244 included W/lower gasket kit - Was 6599106 - A

5

6630198

COVER

6

6666768

GASKET See Illustration LOWER GASKET KIT/ C3244 included W/lower gasket kit - Was 6599107 - A

7

1CM620

BOLT Was 4CM620 - A

8

1CM625

BOLT Was 4CM625 - A

9

3986831

OIL SEAL

10

6652604

CASE

11

6652608

CASE Was 6658994 - A

12

1CM845

BOLT Use W/Ref. 13

12

6632561

BOLT Washer Head - Was 6652607 - A

13

3974105

WASHER
