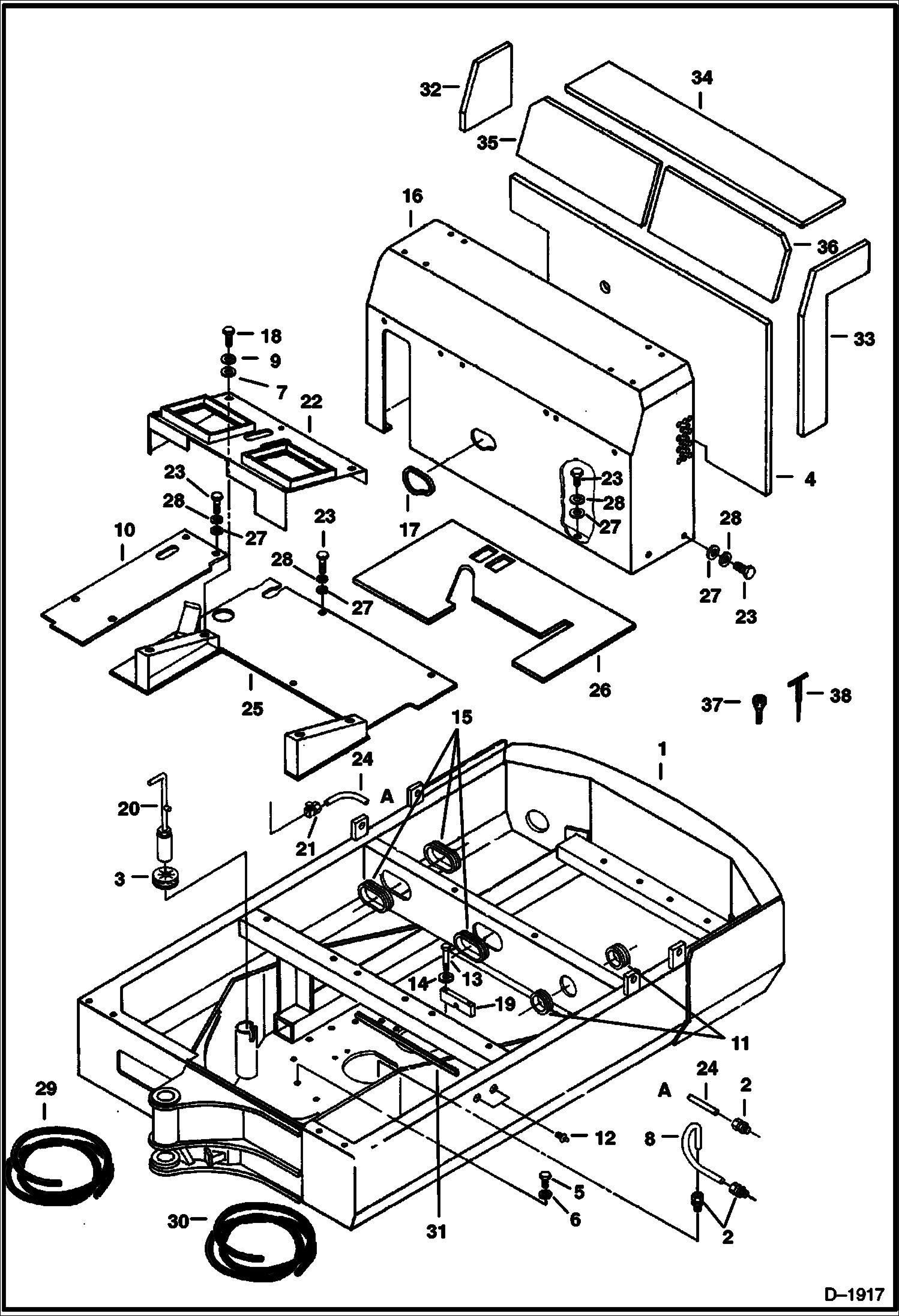

Запчасти Bobcat 220 REVOLVING FRAME & FLOOR PLATE MAIN FRAME

1

6533661

FRAME

2

6533966

NIPPLE W/Nut & Sleeve

3

6534892

GROMMET Was 6535000 - A

4

INSULATION NLA - Fastens inside of hood - Was 6534750 - A

5

10CM1050

BOLT See Illustration UNDER CARRIAGE/ D2029

6

6EM100

WASHER See Illustration UNDER CARRIAGE/ D2029

7

15EM50

WASHER

8

HOSE NLA - 24'' (610mm) long - Order Ref. 30

10

6533950

PLATE Was 6533972 - A

11

6512067

GROMMET Was 6533975 - A

12

6652970

GREASE FITTING Was 6533968 - A

13

1CM845

BOLT

14

6EM80

WASHER, SPRING

15

MOULDING NLA - 12'' (304,8 mm) long - Order Ref. 30

16

6533910

COVER Engine panel

17

MOULDING NLA - 12'' (304,8 mm) long - Order Ref. 30

18

1CM515

BOLT

19

6533970

STOPPER Swing Valve - W/12 mm wide slot

19

6538801

STOP Swing Valve - W/16 mm wide slot

20

6533953

PIN

21

6533967

ELBOW W/Nut & Sleeve

22

6533923

COVER Was 6533973 - A

23

1CM1020

BOLT

24

HOSE NLA - 43'' (1092mm) long - Order Ref. 30

25

6533805

PLATE Was 6533971 - A

26

6533974

FLOOR MAT Canopy Models

26

6534738

FLOOR MAT Cab Models

27

15EM100

WASHER

28

6EM100

WASHER

29

6533969

HOSE Bulk - Sold Per Foot -

30

6512686

MOULDING Bulk - Sold Per Foot

31

MOULDING NLA - 24'' (610mm) long - Order Ref. 30

32

6534755

INSULATION Fastens inside of hood

33

NLA - Fastens inside of hood - Was 6534753 - A

34

6534751

INSULATION NLA - fastens inside of hood - Was 6534751 - A

35

6534754

INSULATION Fastens inside of hood

36

6534752

INSULATION Fastens inside of hood

37

6539680

SCREW Alignment

38

6539805

PIN Alignment
