Запчасти Bobcat 220 ROCKER ARM & VALVES POWER UNIT

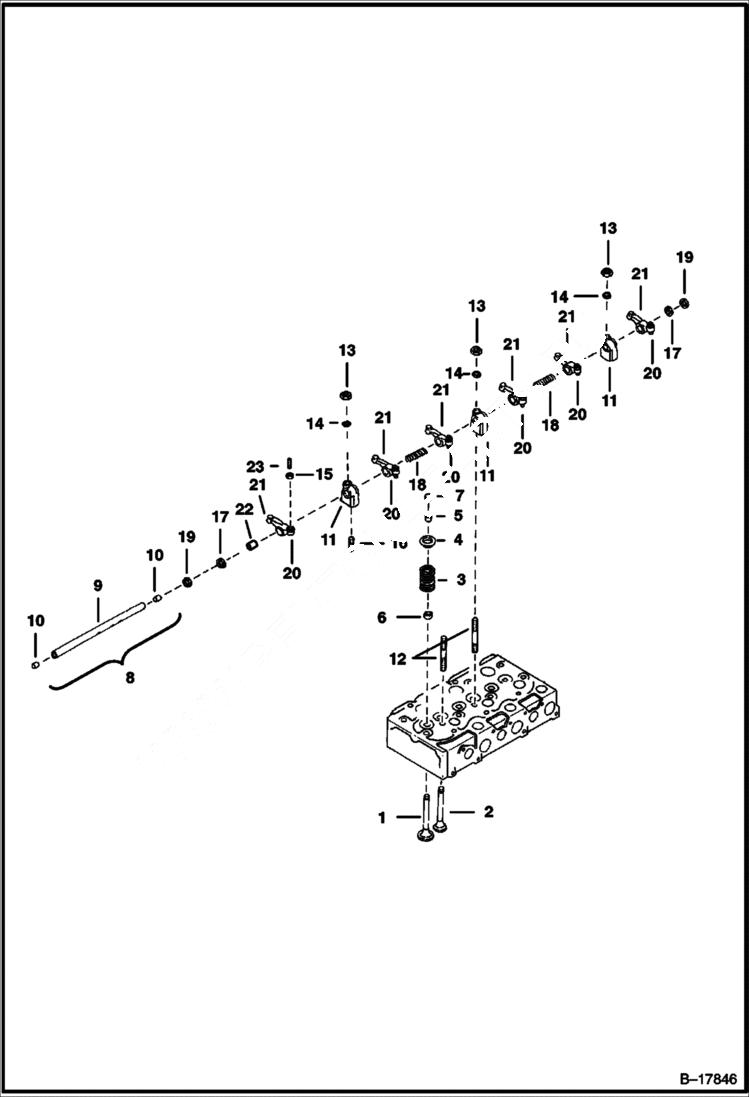

Схема запчастей Bobcat 220 - ROCKER ARM & VALVES POWER UNIT

Артикул

Название

Примечание

Количество

1

6630679

VALVE intake

2

6630680

VALVE exhaust

3

3974159

SPRING

4

6685959

RETAINER Was 6652616 - A

5

7008389

RETAINER, VALVE SPRING set of 2 - Was 3974161 - A

6

3974162

SEAL See Illustration UPPER GASKET KIT/ C3243 included W/upper gasket kit

7

6672437

CAP Was 3974163B - A

8

6599996

SHAFT rocker arm - W/Ref. 9 & 10

9

SHAFT NSS

10

3974166

SCREW SET

11

6599986

BRACKET

12

6630200

STUD

13

1DM7

NUT

14

2EM7

WASHER

15

3974180

NUT

16

3974171

SCREW

17

3974172

WASHER

18

3974173

SPRING

19

5JM10

RING

20

6652619

ROCKER ARM assy. - W/Ref. 15 & 21

21

ROCKER ARM NSS

22

6599126

BUSHING

23

3974179

SCREW

Выбрано товаров: 23
