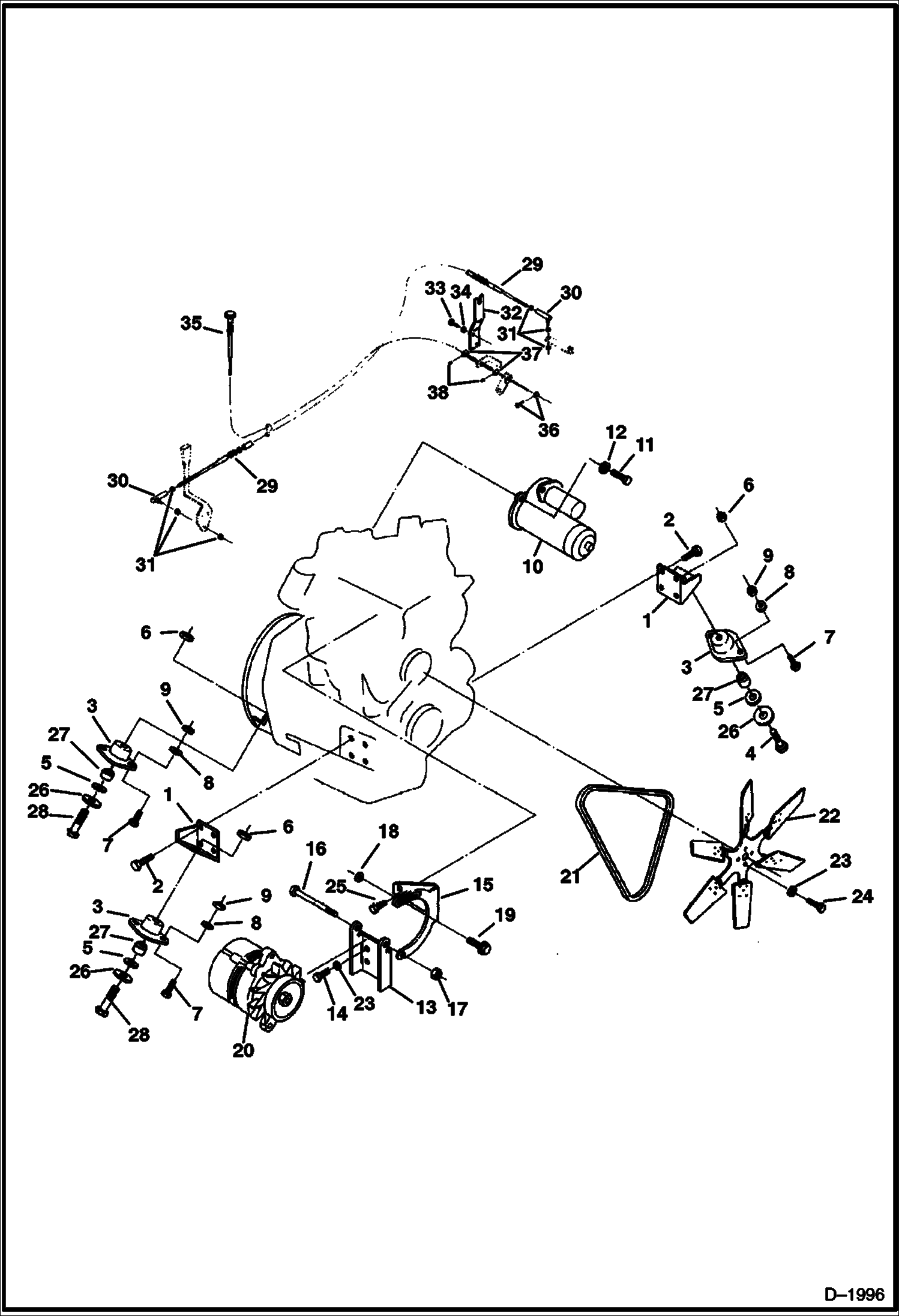

Запчасти Bobcat 220 ENGINE, STARTER, ALTERNATOR & FAN MOUNTING POWER UNIT

1

6588927

MOUNT Was 6587176 - A

2

5CM1020

SCREW

3

6653764

MOUNT Also order spacer 6804522 - (1) per mount

4

1CM1065

BOLT Was 1CM01055B - B

5

15EM100

WASHER

6

39DM10

NUT

7

1CM816

BOLT

8

7EM80

WASHER

9

1DM8

NUT

10

STARTER See Illustration STARTER/ B18202

11

1CM1025

BOLT

12

7EM100

LOCKWSHR

13

6587524

MOUNT

14

1CM820

BOLT

15

6587270

BRACKET

16

1C656

BOLT

17

85D6

NUT, 5

18

6565433

WASHER

19

35C516

BOLT 10

20

ALTERNATOR See Illustration ALTERNATOR/ B25158 See BTIE-022 NLA

21

6534779

V-BELT

22

6653762

FAN

23

6EM60

WASHER, SPRING

24

1CM616

SCREW

25

1CM816

BOLT Was 4CM816 - A

26

872229

WASHER Was 616786B - B

27

6804522

SPACER Was 6537468 - A

28

1CM1060

BOLT

29

6658855

CABLE speed

30

6630661

BALL JOINT

31

14D10

NUT

32

6534790

BRACKET

33

1CM825

BOLT

34

6EM80

WASHER, SPRING

35

6659263

CABLE shut-off

36

STOP NLA - Was 6599481 - A

37

6586303

RETAINER

38

33G404

SET SCRW5
