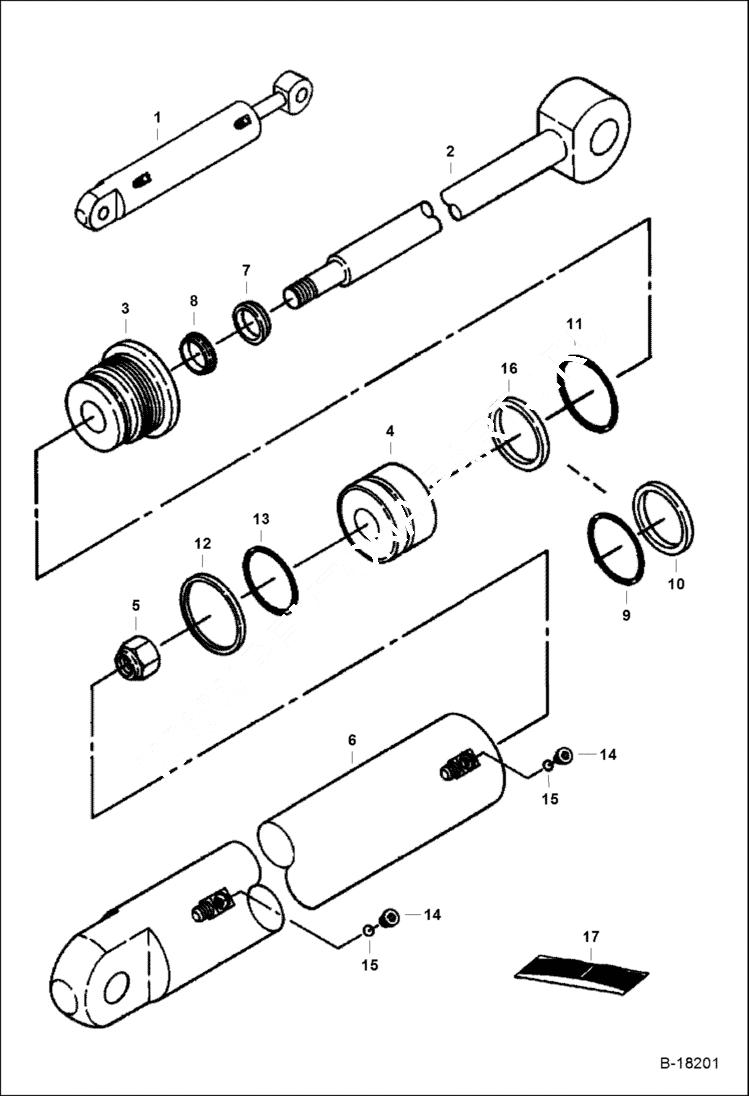

Запчасти Bobcat 220 SWING CYLINDER (W/ 1.375 Shaft OD) HYDRAULIC SYSTEM

1

CYLINDER NLA - Ref. 2-14 - Order 6587963 - Was 6587364 - A

2

6587367

ROD

3

6586721

HEAD

4

6587006

PISTON

5

92D14

NUT

6

6587370

HOUSING

7

6666543

WIPER, ROD CYL

8

6667325

SEAL Was 6665185 - A

9

82K229

ORING Was 58K229 - B

10

73K227

RING back-up

11

25K40204

O-RING Was 54K40204 - B

12

25K30130

O RING 10 Was 54K30130 - B

13

6536642

RING

14

47K2

PLUG W/Ref. 14

15

79K3

O RING 10 Was 91F000002B - B

16

7207224

SEAL, QUAD

17

6803281

KIT, SEAL Ref. 5, 11-15, & 16 - Use W/ 1.375'' (34,92 mm) shaft OD - Was 6587008 - A
