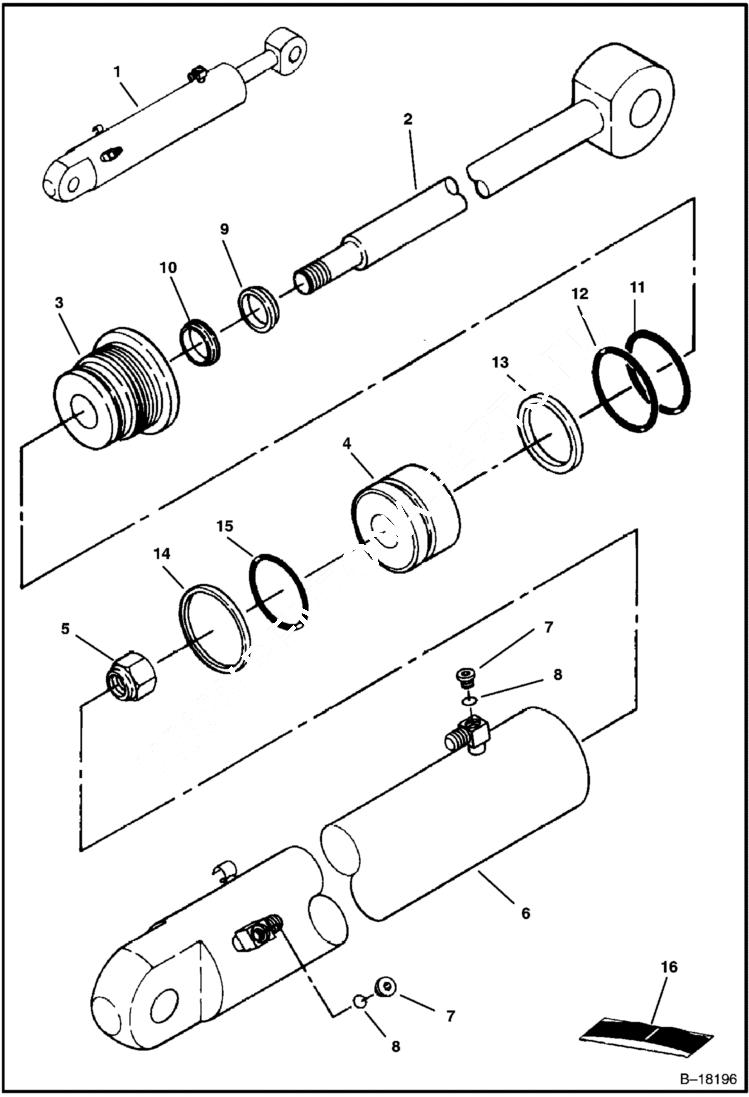

Запчасти Bobcat 220 BUCKET CYLINDER HYDRAULIC SYSTEM

1

CYLINDER NLA - Ref. 2-15 order cyl. assy. 6588658 - Was 6586439 - A

2

6586448

ROD

3

6537865

HEAD

4

6586440

PISTON

5

92D14

NUT

6

HOUSING NLA - Order cyl. assy. 6588658 - Was 6586446 - A

7

47K2

PLUG W/Ref. 8

8

79K3

O RING 10

9

6666543

WIPER, ROD CYL

10

6667325

SEAL Was 6665185 - A

11

58K140

O-RING

12

73K328

RING back-up

13

25K60128

O RING 10 Was 54K60128 - A

14

25K30126

O RING 10 Was 54K30126 - B

15

6519328

SEAL

16

6803282

SEAL KIT W/Ref. 9-15 - Was 6588308 - A
