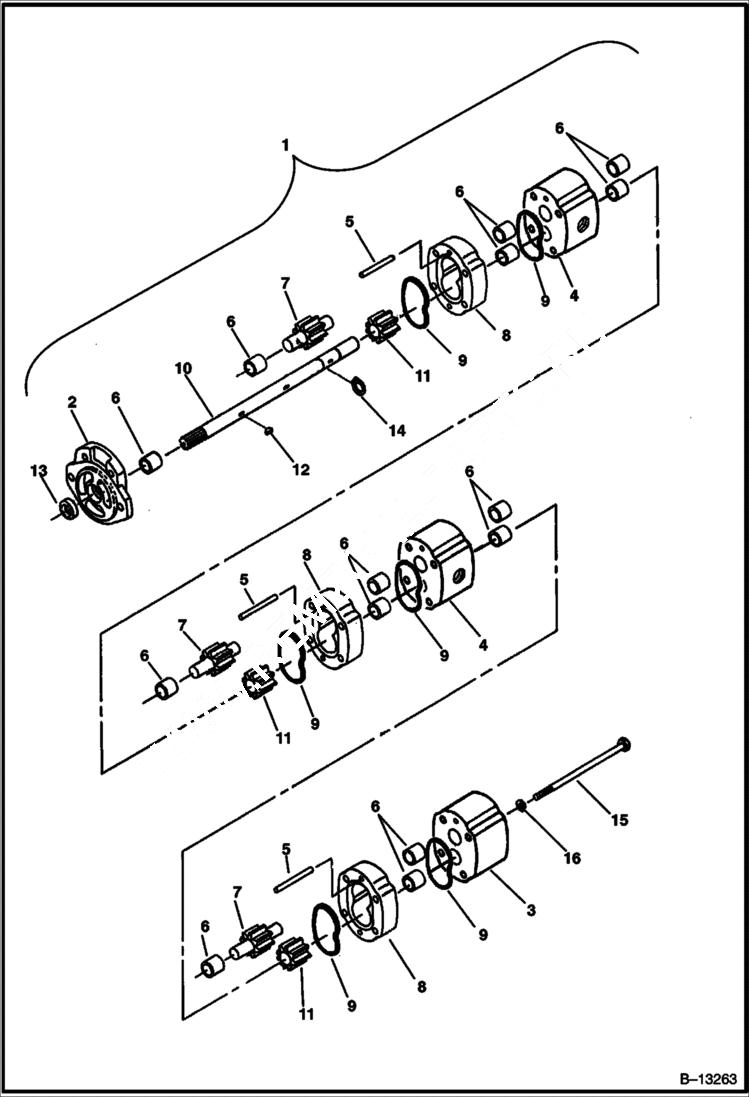

Запчасти Bobcat 220 GEAR PUMP (Webster) HYDRAULIC SYSTEM

1

GEAR PUMP See BTIE-025 NLA - W/Ref. 2-16 - Was Webster pump 6661566

2

6657228

PLATE W/Ref. 6

3

6657229

COVER W/Ref. 6

4

PLATE NLA - W/Ref. 6 - Was 6657230 - A

5

6657241

DOWEL PIN

6

BUSHING NSS

7

6657231

GEAR

8

6657232

PLATE

9

6657233

SEAL

10

SHAFT NLA - Was 6657234 - A

11

6657235

GEAR

12

6657236

KEY

13

6648449

SEAL Was 6657237 - A

14

6657239

SNAP RING

15

6657240

BOLT

16

25E15

WASHER
