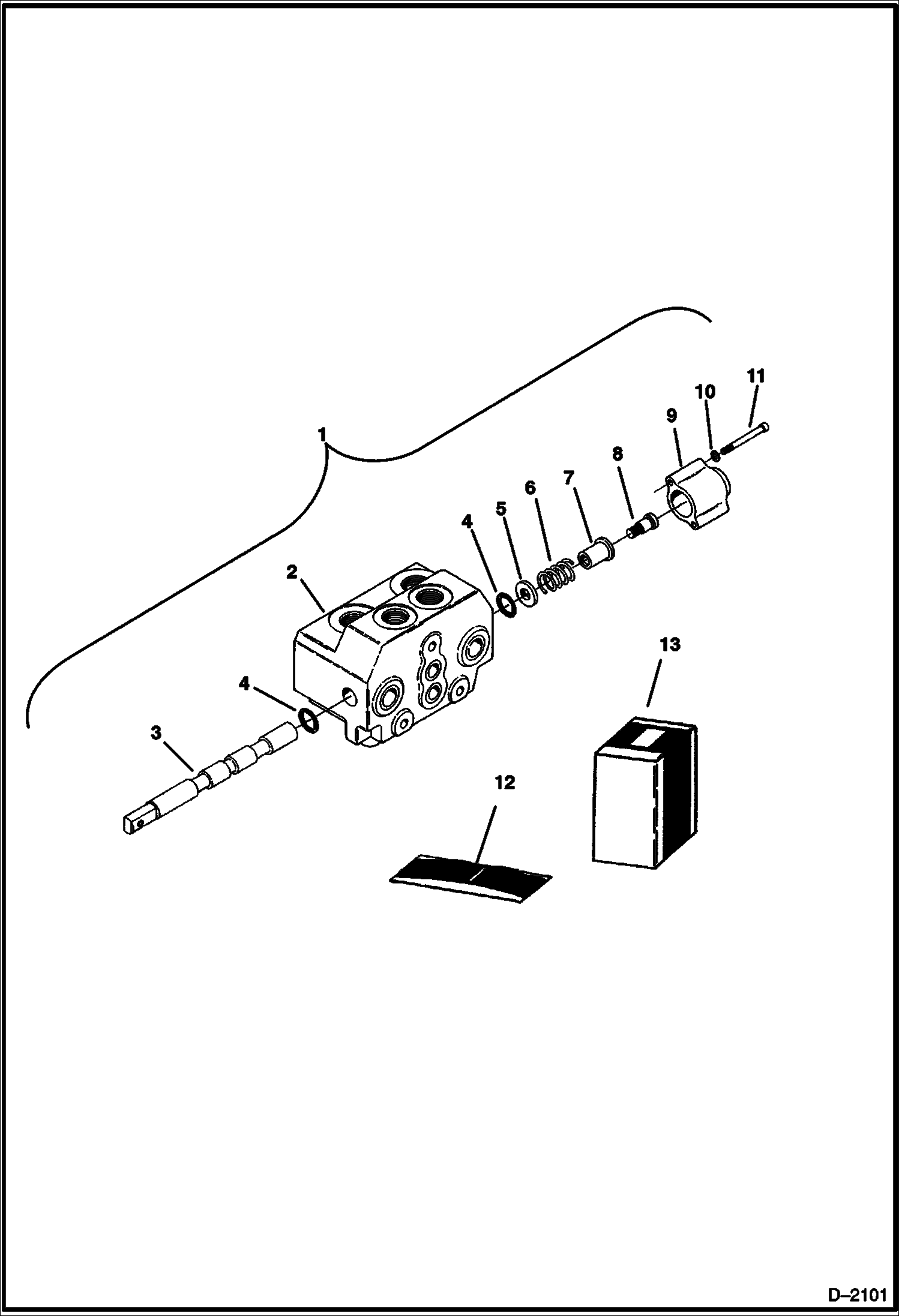

Запчасти Bobcat 220 INLET VALVE SECTION (R.H. Travel) HYDRAULIC SYSTEM

1

6658313

VALVE inlet section - W/Refs. 2-12

2

HOUSING NLA

3

SPOOL NLA

4

O-RING NSS - Included W/Ref. 12

5

WASHER NSS - Included W/Ref. 13

6

SPRING NSS - Included W/Ref. 13

7

SPACER NSS - Included W/Ref. 13

8

BOLT NSS - Included W/Ref. 13

9

END CAP NSS - Included W/Ref. 13

10

17E10

WASHER Included W/Ref. 13

11

6658339

BOLT Included W/Ref. 13

12

6658337

SEAL KIT W/Ref. 4

13

6658338

SPRING KIT W/Ref. 5-11
