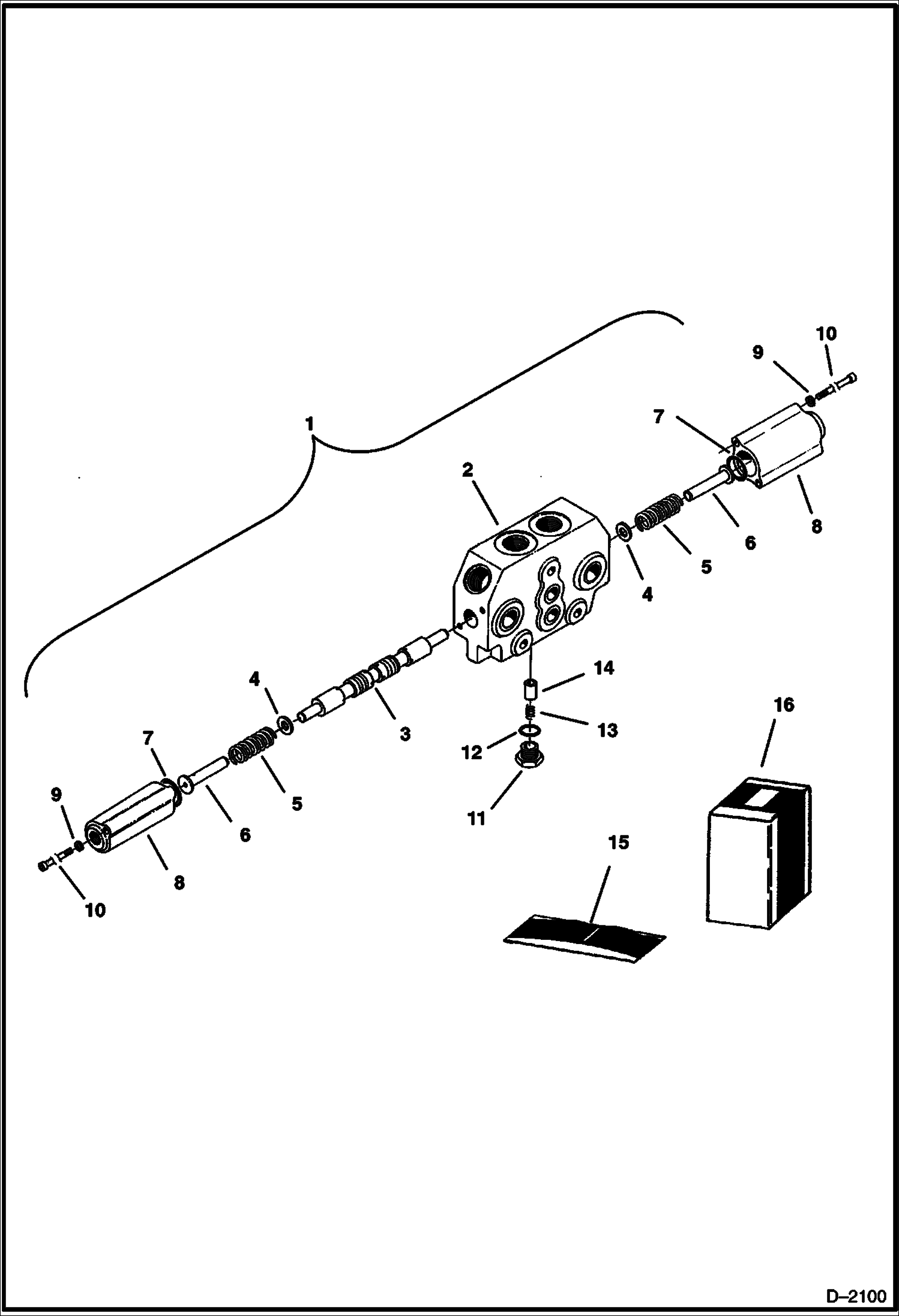

Запчасти Bobcat 220 VALVE SECTION (Arm, Boom & Bucket) HYDRAULIC SYSTEM

1

6662212

VALVE section - Boom

1

6662211

VALVE section - Arm or Bucket - W/Refs. 2-14

2

HOUSING NLA

3

SPOOL NLA

4

6658335

WASHER

5

6662209

SPRING

6

STOP NLA - spool - Was 6658332 - A

7

O-RING NSS - Included W/Ref. 15

8

6662208

END CAP

9

17E10

WASHER

10

6658334

BOLT

11

6656429

PLUG W/Ref. 12 - Included W/Ref. 16

12

O-RING NSS - Included W/Ref. 15 & 16

13

SPRING NSS - Included W/Ref. 16

14

POPPET NSS - Included W/Ref. 16

15

6658330

SEAL KIT W/Ref. 7 & 12

16

6656433

KIT W/Ref. 11-14
