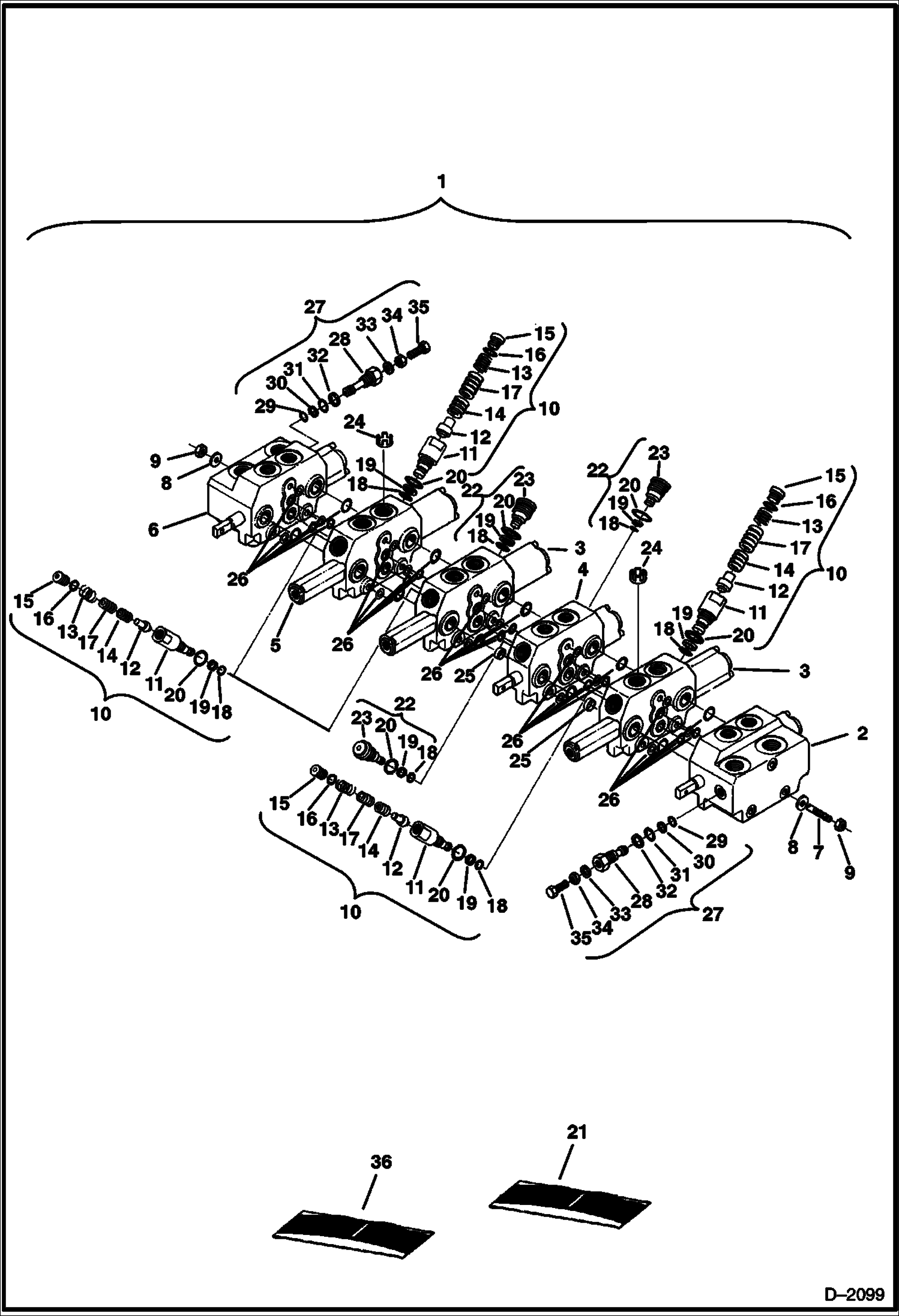

Запчасти Bobcat 220 CONTROL VALVE ASSEMBLY (6-Spool) HYDRAULIC SYSTEM

1

6661592

VALVE assy - W/Ref. 2-35

2

6658312

VALVE See Illustration INLET VALVE SECTION/ C3230 - LH Travel

3

6662211

VALVE See Illustration VALVE SECTION/ D2100 arm or bucket

4

6662213

VALVE See Illustration VALVE SECTION/ C3231 auxiliary

5

6662212

VALVE See Illustration VALVE SECTION/ D2100 boom - Was 6662213 - A

6

6658313

VALVE See Illustration INLET VALVE SECTION/ D2101 - RH Travel

7

6658307

TIE ROD includes 3 tie rods

8

6658320

WASHER

9

6658322

NUT

10

6658316

RELIEF VALVE W/Ref. 11-20 set at 2900/3000 PSI

11

HOUSING NSS

12

POPPET NSS

13

SPRING NSS

14

SHIM NSS - .021 inch

15

6656446

PLUG W/Ref. 16

16

6656432

O-RING included W/Ref. 36

17

SHIM NSS - .0035 inch - included W/Ref. 36

18

6658344

O-RING included W/Ref. 36

19

6658343

BACK-UP RING includes W/Ref. 36

20

6656437

O-RING included W/Ref. 36

21

6656281

SEAL KIT W/Refs. 29-33

22

6658314

RELIEF PLUG W/Refs. 18-20 & 23

23

HOUSING NSS

24

6662210

PLATE orifice

25

6658317

PLUG

26

6658319

SEAL KIT

27

6658416

RELIEF VALVE W/Refs. 28-35 Set at 2300-2400 PSI

28

HOUSING NSS

29

O-RING NSS - included W/Ref. 21

30

BACK-UP RING NSS - included W/Ref. 21

31

O-RING NSS - included W/Ref. 21

32

BACK-UP RING NSS - included W/Ref. 21

33

RING NSS - included W/Ref. 21

34

NUT NSS

35

BOLT NSS

36

6662214

SEAL KIT W/Refs. 18, 19 & 20
