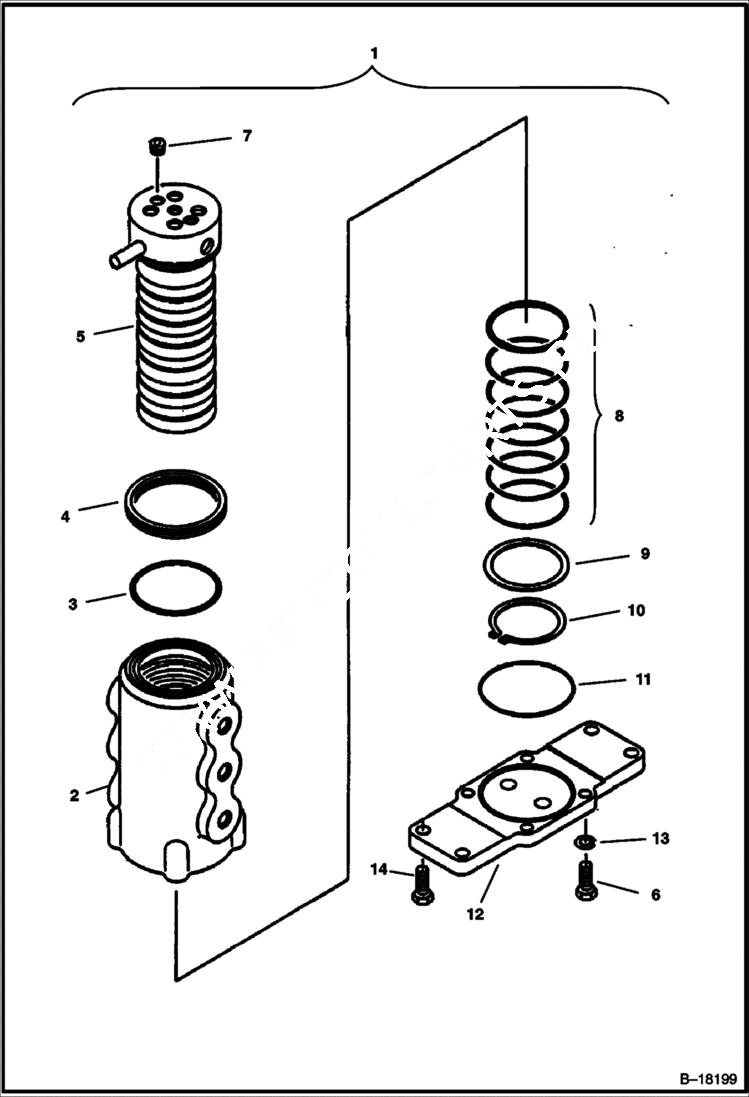

Запчасти Bobcat 220 SWIVEL JOINT HYDRAULIC SYSTEM

1

SWIVEL JOINT See BTIE-032 NLA - W/Ref. 2-13 - Was 6658956 - A

2

BODY See BTIE-032 NLA - Was 6533946 - A

3

6535153

O-RING

4

6535154

SEAL

5

6658955

ROTOR

6

1CM1025

BOLT

7

6535156

PLUG

8

6655318

O-RING

9

WASHER NLA - Thrust - Was 6533949 - A

10

6535158

SNAP RING

11

6535159

O-RING

12

6533948

FLANGE

13

6EM100

WASHER

14

1CM835

BOLT
