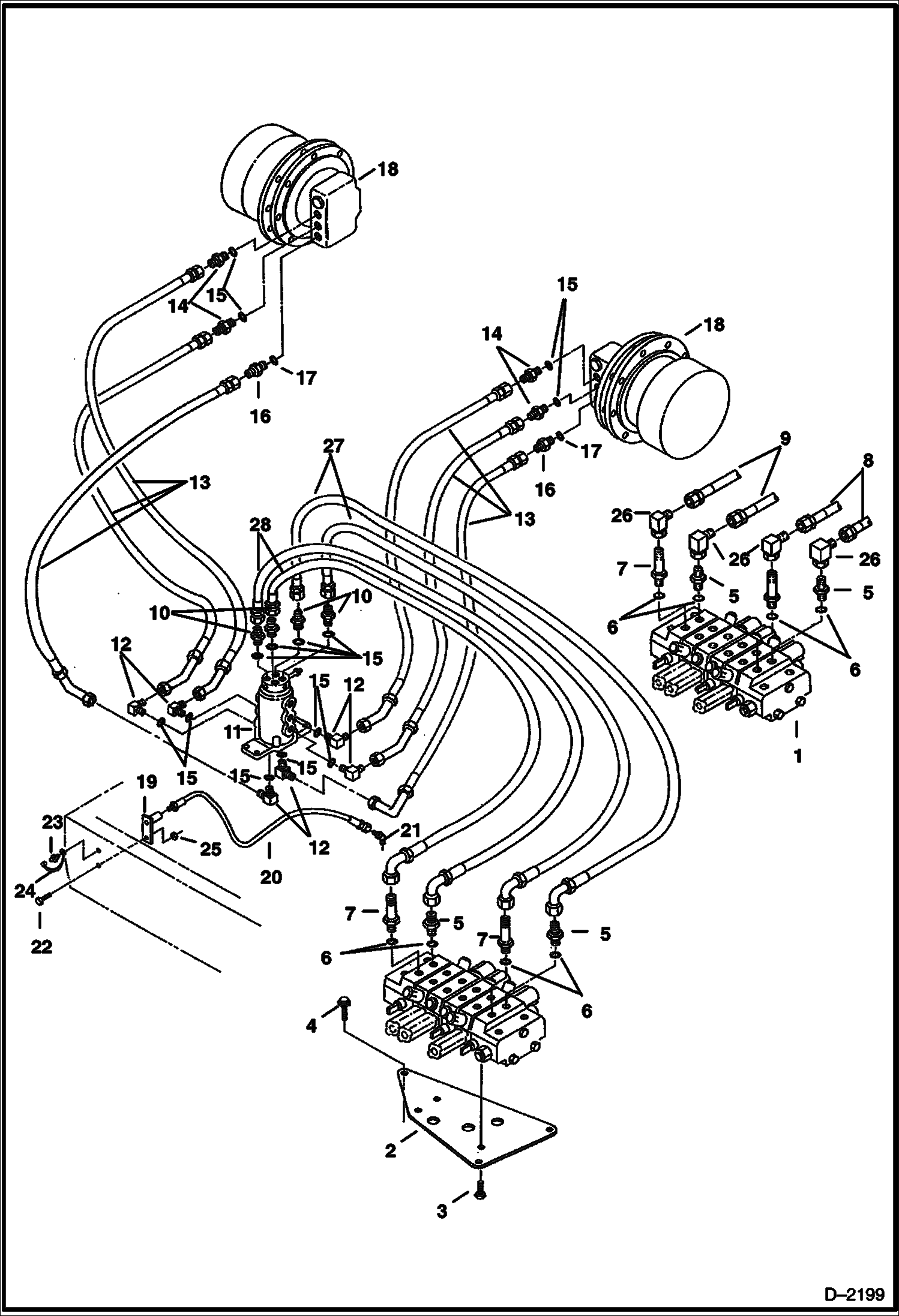

Запчасти Bobcat 220 HYDRAULIC CIRCUITRY (Valve to Travel Motors) HYDRAULIC SYSTEM

1

6661592

VALVE See Illustration CONTROL VALVE ASSEMBLY/ D2099 6-Spool

2

6586860

PLATE mounting

3

2C512

SCREW

4

29CM1030

BOLT

5

743108

FITTING W/Ref. 6

6

79K8

O RING 10

7

16KB0608

FITTING, HYD CONNECTOR W/Ref. 6 - Was 6587170 - A

8

HOSE See BTIE-043 NLA - Order Ref. 2 - Was 6530892 - A

9

HOSE See BTIE-043 NLA - Order Ref. 28 - Was 6587280 - A

10

6654377

ADAPTER Use W/swivel joint 6658956

10

15K5

FITTING W/Ref. 15 - Use W/swivel joint 6664409

11

SWIVEL JOINT See Illustration SWIVEL JOINT/ B14077 See Illustration SWIVEL JOINT/ B18199

12

6654378

ELBOW Use W/swivel joint 6658956

12

17K5

ELBOW W/Ref. 15 - Use W/swivel joint 6664409

13

6597887

HOSE See BTIE-043 Was 6535444 - A

14

6654375

ADAPTER W/Ref. 15

15

79K6

O RING 10

16

6654895

ADAPTER W/Ref. 17

17

6655244

O-RING

18

MOTOR See Illustration TRAVEL MOTOR/ D1922 See BTIE-049 NLA - travel - Was 6651892 - A

19

6586104

PLATE

20

6587516

HOSE

21

84F3

FITTING, HYD ELBOW

22

1CM1025

BOLT

23

10H25

FITTING, GREASE 5

24

6652943

COVER grease fitting

25

49DM10

NUT

26

11K5

FITTING

27

6700024

HOSE

28

6539841

HOSE

34

6656374

VALVE See Illustration BRAKE VALVE/ B25160 assy
