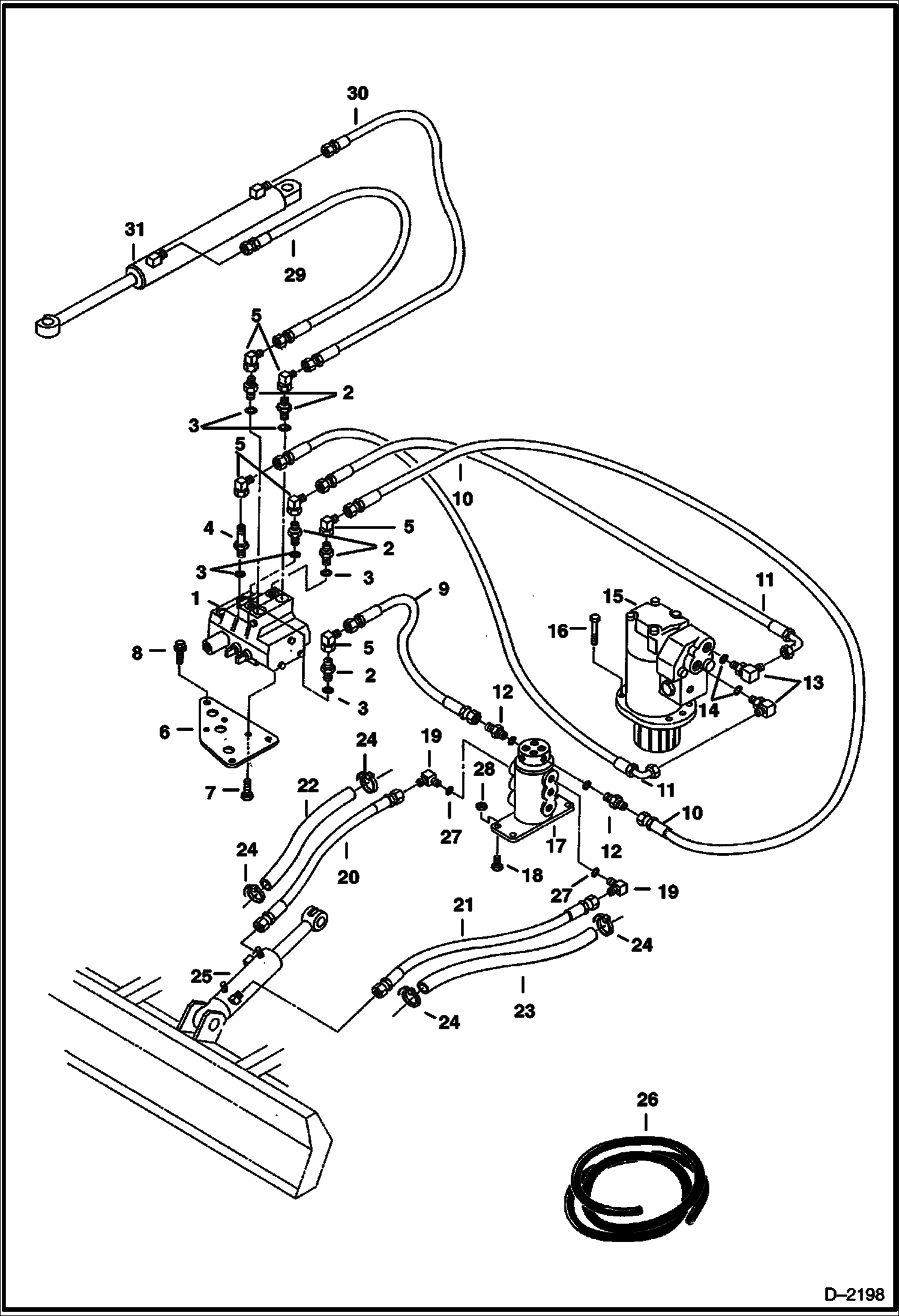

Запчасти Bobcat 220 HYDRAULIC CIRCUITRY (Blade & Swing) HYDRAULIC SYSTEM

1

VALVE See Illustration CONTROL VALVE ASSEMBLY/ D2118 NLA - 3 spool - Was 6661593 - A

2

743108

FITTING W/Ref. 3

3

79K8

O RING 10

4

CONNECTOR W/Ref. 3 - Was 6587170 - A

5

11K5

FITTING

6

6586863

PLATE mounting

7

2C512

SCREW

8

29CM1030

BOLT

9

6535449

HOSE Was 6531606 - B

10

6587679

HOSE Was 6539952 - B

11

6587032

HOSE Was 6700335 - D

12

6654377

ADAPTER Use W/swivel joint 6658956

12

15K5

FITTING W/Ref. 14 - Use W/swivel joint 6664409

13

17K5

ELBOW W/Ref. 14

14

79K6

O RING 10

15

6669539

SWING MOTOR See Illustration SWING MOTOR/ D2041 Was 6659533 - A

16

1CM1040

BOLT

17

SWIVEL JOINT See Illustration SWIVEL JOINT/ B14077 See Illustration SWIVEL JOINT/ B18199

18

1CM835

BOLT

19

6654378

ELBOW Use W/swivel joint 6658956

19

17K5

ELBOW W/Ref. 14 - Use W/swivel joint 6664409

20

6597884

HOSE Was 6589723 - A

21

6597885

HOSE Was 6589724 - A

22

COVER NLA - 25'' (635mm) long - Order Ref. 26

23

COVER NLA - 30'' (762mm) long - Order Ref. 26

24

6665221

CABLE TIE metal - required tool MEL-1427 to install cable tie - Was 1715312B - B

25

6804682

CYLINDER See Illustration BLADE CYLINDER/ B18867 blade - Was 6587000 - A

26

6649389

HOSE COVER bulk - Sold Per Foot

27

6586430

ORIFICE .035'' ( 0,90 mm)

28

1DM8

NUT

29

HOSE See BTIE-043 NLA - Was 6700215 - A

30

HOSE See BTIE-043 NLA - Was 6535444 - A

31

CYLINDER See Illustration SWING CYLINDER/ B18201A See Illustration SWING CYLINDER/ B18201 boom swing
