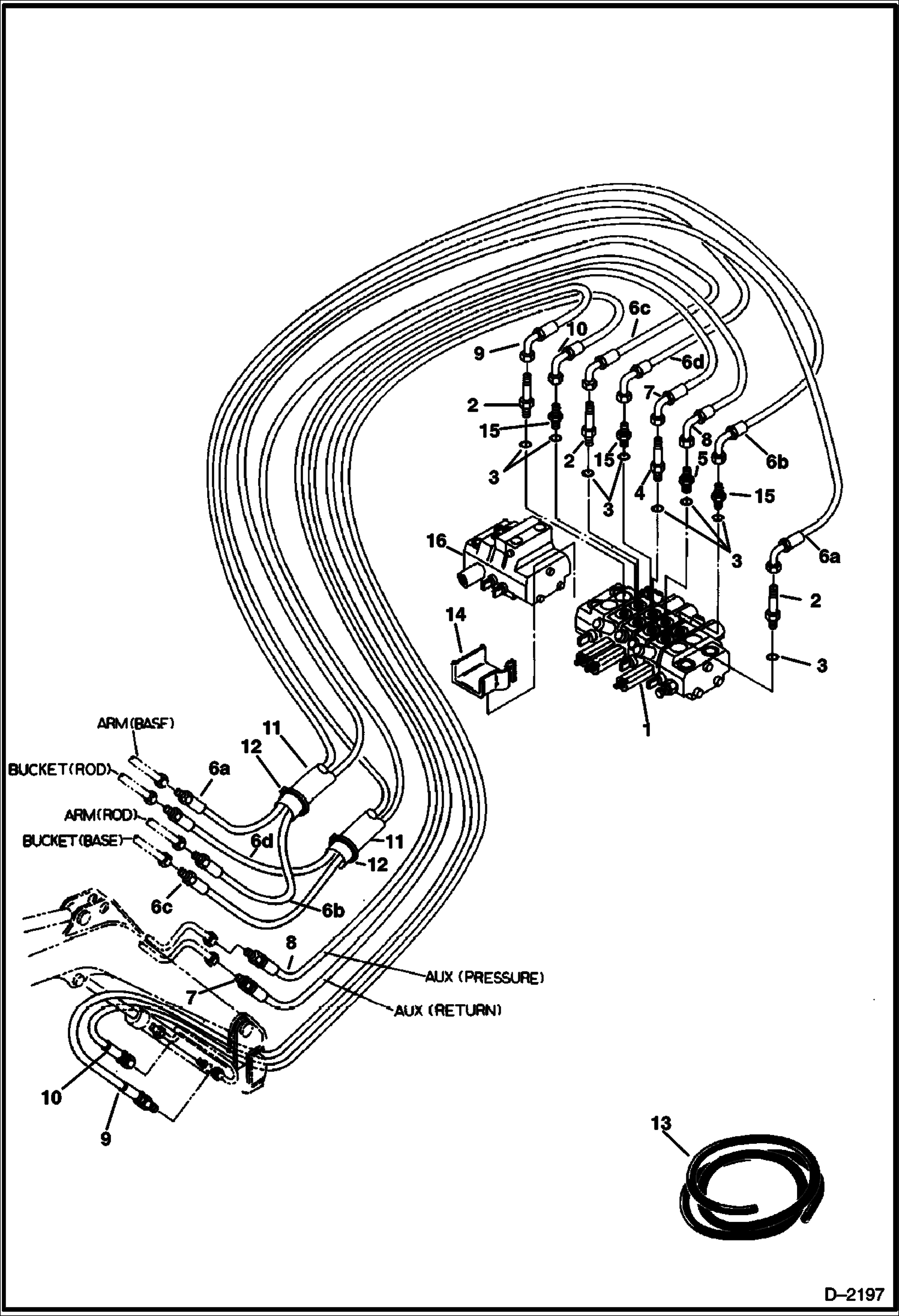

Запчасти Bobcat 220 HYDRAULIC CIRCUITRY (Valve to Arm to Boom to Bucket to Auxiliary) HYDRAULIC SYSTEM

1

6661592

VALVE See Illustration CONTROL VALVE ASSEMBLY/ D2099 6 spool

2

16KB0608

FITTING, HYD CONNECTOR W/Ref. 3 - Was 6587170 - A

3

79K8

O RING 10

4

16K6

FITTING W/Ref. 3

5

15K6

ADAPTER W/Ref. 3

6

6597888

HOSE Was 6587514 - A

7

6587284

HOSE

8

6587285

HOSE

9

6597889

HOSE Was 6587281 - A

10

6597890

HOSE Was 6587643 - D

11

COVER NLA - 72'' (1829 mm) long - Order Ref. 13

12

6665221

CABLE TIE metal - requires tool MEL-1427 to install cable tie - Was 1715312B - B

13

6656155

HOSE COVER bulk - sold per foot

14

GUIDE NLA - hose - Was 6587414 - A

15

743108

FITTING W/Ref. 3
