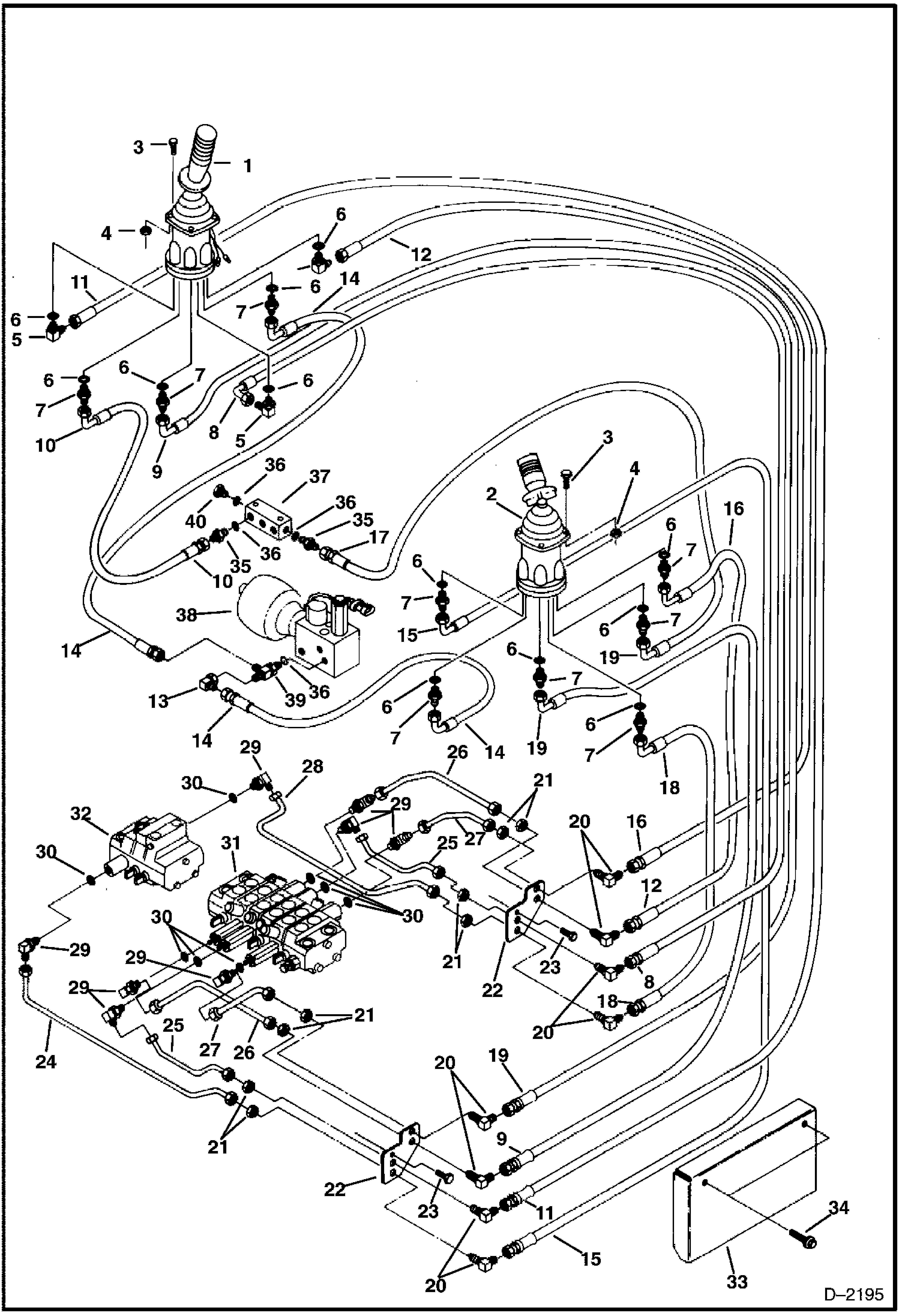

Запчасти Bobcat 220 HYDRAULIC CIRCUITRY (Joystick Controls) (Standard) HYDRAULIC SYSTEM

1

6654120

JOYSTICK ASSY. See Illustration R.H. JOYSTICK CONTROLS/ D1972 - RH

2

6654119

JOYSTICK ASSY. See Illustration L.H. JOYSTICK CONTROLS/ D1973 - LH

3

1CM625

BOLT

4

1DM6

NUT

5

6657392

ELBOW W/Ref. 6

6

6655244

O-RING

7

6654895

ADAPTER W/Ref. 6

8

6587287

HOSE

9

6587288

HOSE

10

6579167

HOSE

11

6587286

HOSE

12

6587289

HOSE

13

11K5

FITTING

14

6618198

HOSE

15

6587290

HOSE

16

6587292

HOSE

16

VALVE See Illustration CONTROL VALVE ASSEMBLY/ D2118 NLA - 3 spool - Was 6661593 - A

17

6587294

HOSE

18

6587291

HOSE

19

6587293

HOSE

20

88F3

ELBOW 5

21

86F3

LOCKNUT

22

6587012

PLATE

23

1CM1025

BOLT

24

6587118

TUBE

25

6587119

TUBE

26

6587116

TUBE

27

6587117

TUBE

28

6587710

TUBE Was 6587120 - A

29

17K3

ELBOW W/Ref. 30

30

79K4

O RING 10

31

6661592

VALVE See Illustration CONTROL VALVE ASSEMBLY/ D2099 - 6-spool

32

VALVE See Illustration CONTROL VALVE ASSEMBLY/ D2118 NLA - 3 spool - Was 6661593 - A

33

6587013

COVER

34

29CM1055

BOLT

35

15K5

FITTING W/Ref. 36

36

79K6

O RING 10

37

6667829

BLOCK drain - Was 6587437 - A

38

6661346

MANIFOLD See Illustration JOYSTICK MANIFOLD/ B13776 joystick

39

21K5

TEE W/Ref. 36

40

24K5

PLUG W/Ref. 36
