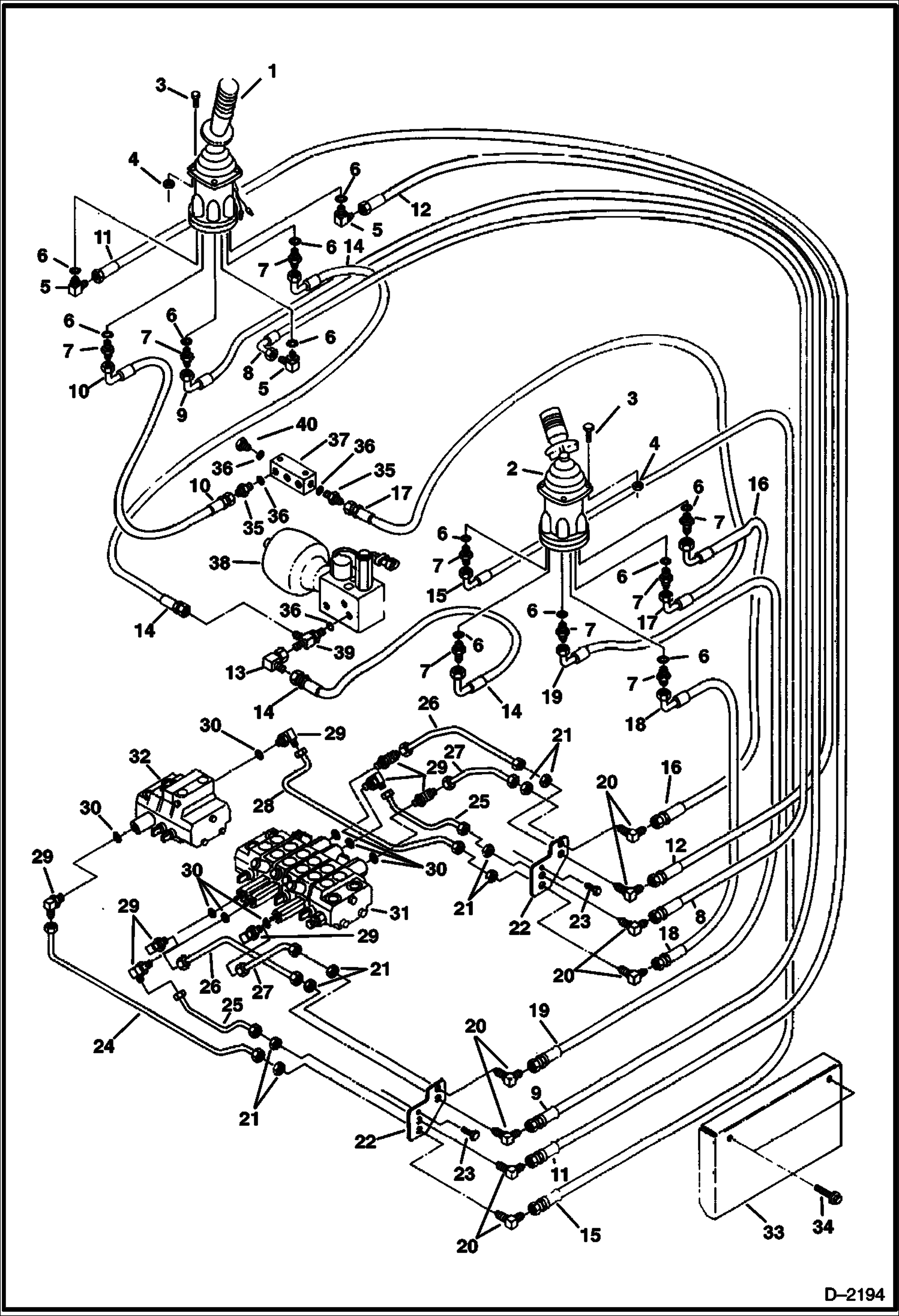

Запчасти Bobcat 220 HYDRAULIC CIRCUITRY (Joystick Controls) (ISO) HYDRAULIC SYSTEM

1

6654120

JOYSTICK ASSY. See Illustration R.H. JOYSTICK CONTROLS/ D1972 - RH

2

6654119

JOYSTICK ASSY. See Illustration L.H. JOYSTICK CONTROLS/ D1973 - LH

3

1CM625

BOLT

4

1DM6

NUT

5

6657392

ELBOW W/Ref. 6

6

6655244

O-RING

7

6654895

ADAPTER W/Ref. 6

8

6587287

HOSE

9

6587288

HOSE

10

6579167

HOSE

11

6587286

HOSE

12

6587289

HOSE

13

11K5

FITTING

14

6618198

HOSE

15

6587290

HOSE

16

6587292

HOSE

17

6587294

HOSE

18

6587291

HOSE

19

6587293

HOSE

20

88F3

ELBOW 5

21

86F3

LOCKNUT

22

6587012

PLATE

23

1CM1025

BOLT

24

6587118

TUBE

25

6587119

TUBE

26

6587116

TUBE

27

6587117

TUBE

28

6587710

TUBE Was 6587120 - A

29

17K3

ELBOW W/Ref. 30

30

79K4

O RING 10

31

6661592

VALVE See Illustration CONTROL VALVE ASSEMBLY/ D2099 6-spool

32

VALVE See Illustration CONTROL VALVE ASSEMBLY/ D2118 NLA - 3 spool - Was 6661593 - A

33

6587013

COVER

34

29CM1055

BOLT

35

15K5

FITTING W/Ref. 36

36

79K6

O RING 10

37

6667829

BLOCK drain - Was 6587437 - A

38

6661346

MANIFOLD See Illustration JOYSTICK MANIFOLD/ B13776 joystick

39

21K5

TEE W/Ref. 36

40

24K5

PLUG W/Ref. 36
