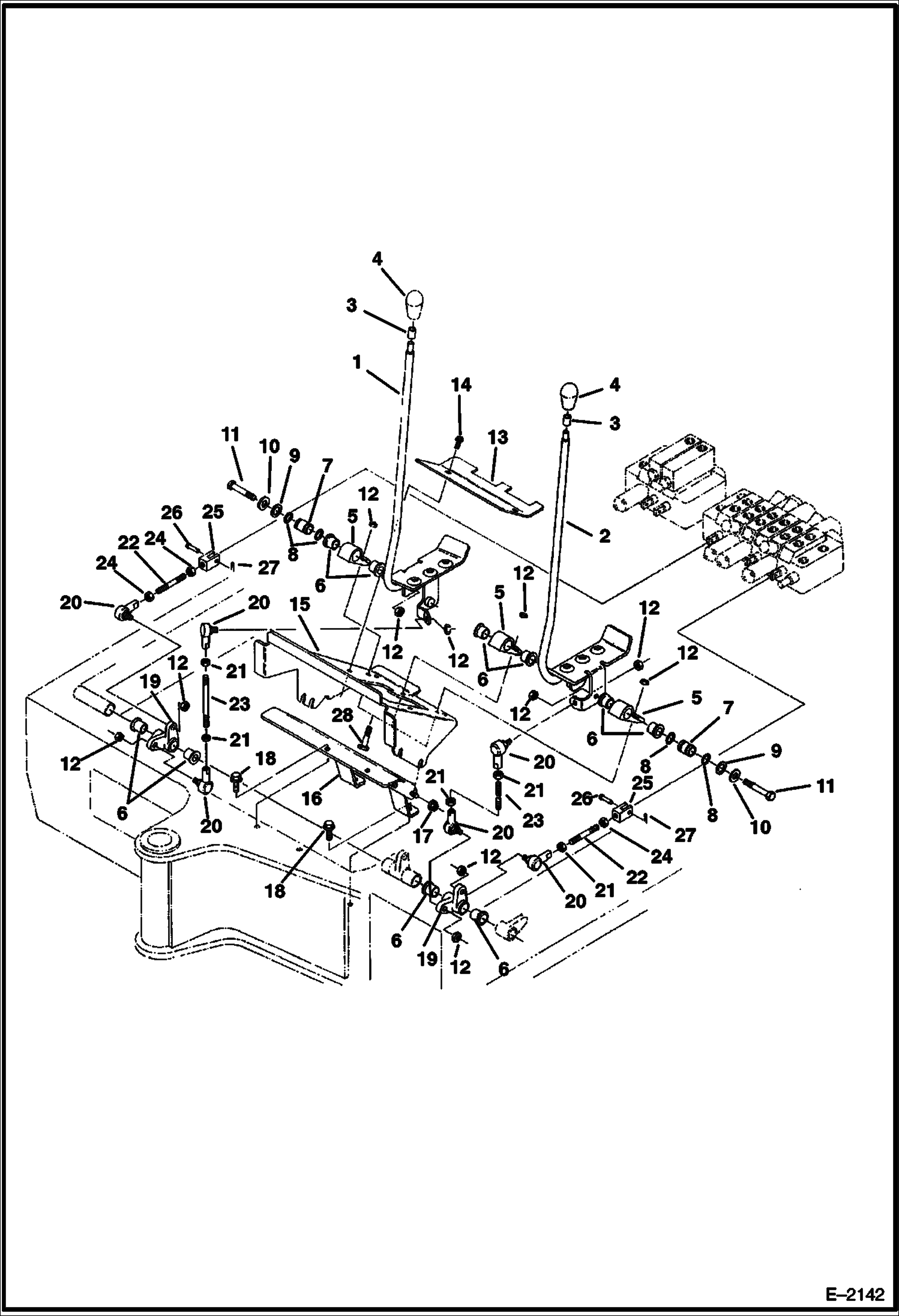

Запчасти Bobcat 220 TRAVEL/STEERING LEVERS CONTROLS

1

LEVER NLA - R.H. travel - order 6588434 (1) & 6588431 (1) - Was 6586642 - A

1

6588434

LEVER R.H. Travel

2

LEVER NLA - L.H. travel - order 6588434 (1) & 6588431 (1) - Was 6586637 - A

2

6588431

LEVER L.H. Travel

3

6660787

RING tolerance

4

6658184

KNOB

5

6537481

MOUNT pivot

6

6536801

BUSHING

7

6536545

SLEEVE

8

58K015

O-RING 10

9

6536802

WASHER

10

27E6

WASHER 5

11

1CM1055

BOLT

12

49DM10

NUT

13

6586646

COVER

14

1CM812

BOLT

15

6586629

MOUNT

16

6586628

SUPPORT

17

42DM10

NUT

18

29CM1025

BOLT

19

6536831

LEVER

20

6536531

BALL JOINT

21

1DM10

NUT

22

6586636

ROD

23

6586645

ROD

24

6587431

NUT LH thread

25

6587430

CLEVIS LH thread

26

6536543

PIN clevis

27

1F212

PIN
