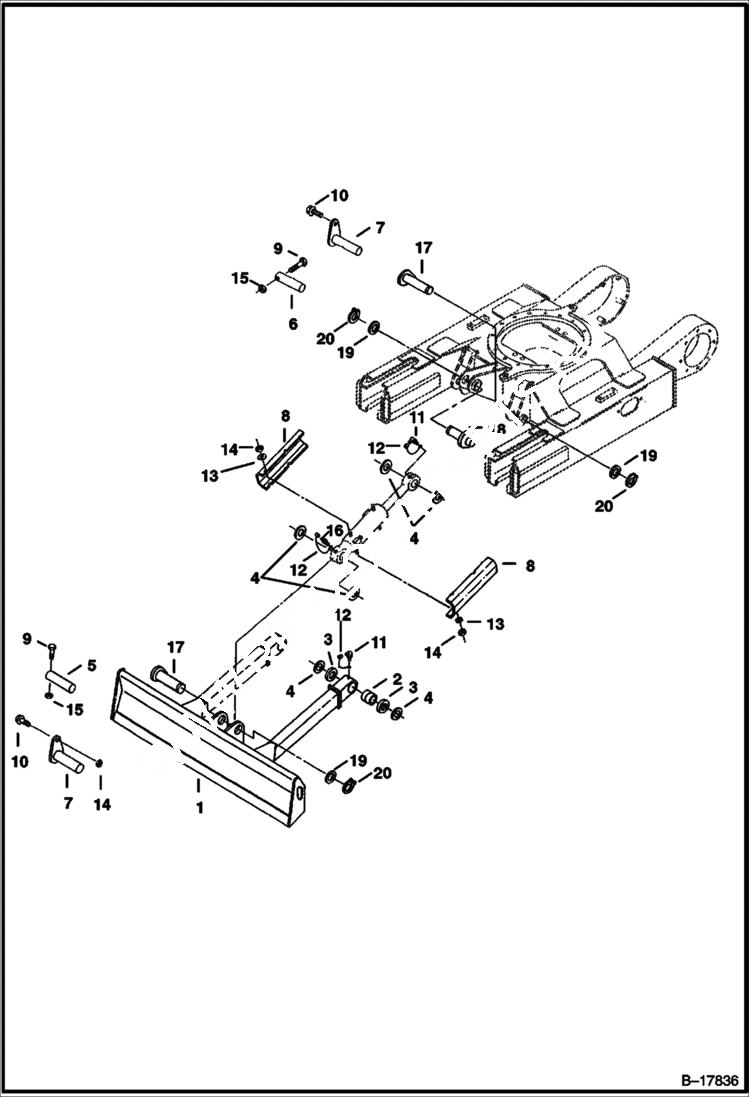

Запчасти Bobcat 220 BLADE WORK EQUIPMENT

1

6597237

BLADE Also order Pin 6597296, Washer 6589699 & Snap Ring 22J000019B - Was 6589852 - A

2

6533484

BUSHING Use with blades 6533473 & 6588655 only

3

6653534

SEAL Use with blades 6533473 & 6588655 only

4

6533856

SHIM

5

6533500

PIN

6

6533501

PIN

7

6533507

PIN

8

6536611

SHIELD

9

1CM855

BOLT

10

29CM1020

BOLT

11

12H15

FITTING, GREASE 5 grease

12

6652943

COVER grease fitting

13

17EM100

WASHER

14

49DM10

NUT

15

49DM8

NUT

16

10H25

FITTING, GREASE 5

17

6597296

PIN

18

6597305

PIN

19

6589699

WASHER

20

22J19

SNAP RING Was 6512132 - A
